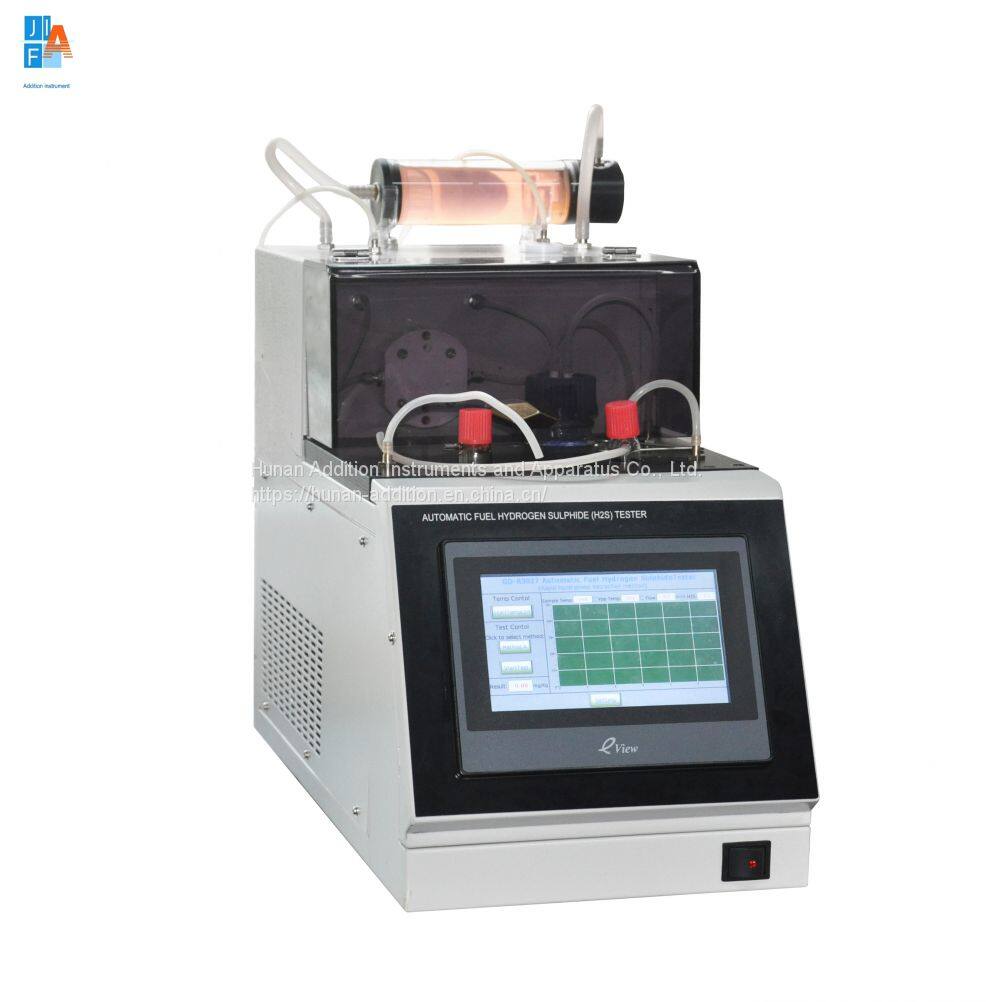

ASTM D7621 Automatic Hydrogen Sulfide in Fuel Oils Tester

Automatic Hydrogen Sulfide in Fuel Oils Tester  ASTM D7621

Model: JF7621

Product Introduction

The instrument is designed and manufactured in full accordance with the requirements in the ASTM IP test standard. The trace sample is diluted with diluent and heated to 60°C in a temperature-controlled metal bath to release the H2S in the sample. Clean air is used as the carrier gas. The H2S is carried into the measuring cell of the electrochemical sensor, and the instantaneous concentration of H2S is measured. The air flow is measured and controlled by a digital mass flowmeter. When the H2S in the sample is completely released, the instrument will automatically calculate the cumulative concentration of H2S.

Parameters

1. Compliant with standards: ASTM D7621, ISO 8217, IP 570

2. Measuring range: 0～250mg/kg H2S

3. Working temperature: 15～30℃, RH80%

4. Viscosity range: up to 3000mm2/s

5. Detection method: electrochemical sensor

6. Test time: 15 minutes

7. Sample volume: 1ml, 2ml, 5ml (determined by H2S concentration)

8. Dilution dose: 20mL

9. Working power supply: AC220V 50Hz

10. Power of the whole machine: 300W

11. Instrument size: 420*500*340mm

12. Net weight: 20KG

Main Feature

1. Automatic measurement, automatic calculation of results;

2. The air flow is measured and controlled by a digital mass flowmeter;

3. The instrument is designed and manufactured according to the requirements of ASTM and IP test standards;

4. Quick screwing gland, self-sealing;

5. The addition H2S200 detection system can perform direct reading;

6. Using the touch screen display, the reading is clear and the operation is convenient;

7. The gas phase processor of semiconductor refrigeration has fast cooling speed;

8. The addition fisher type glass reaction test tube is easy to operate;

9. Luer type sintered filter, filled with special adsorbent;
