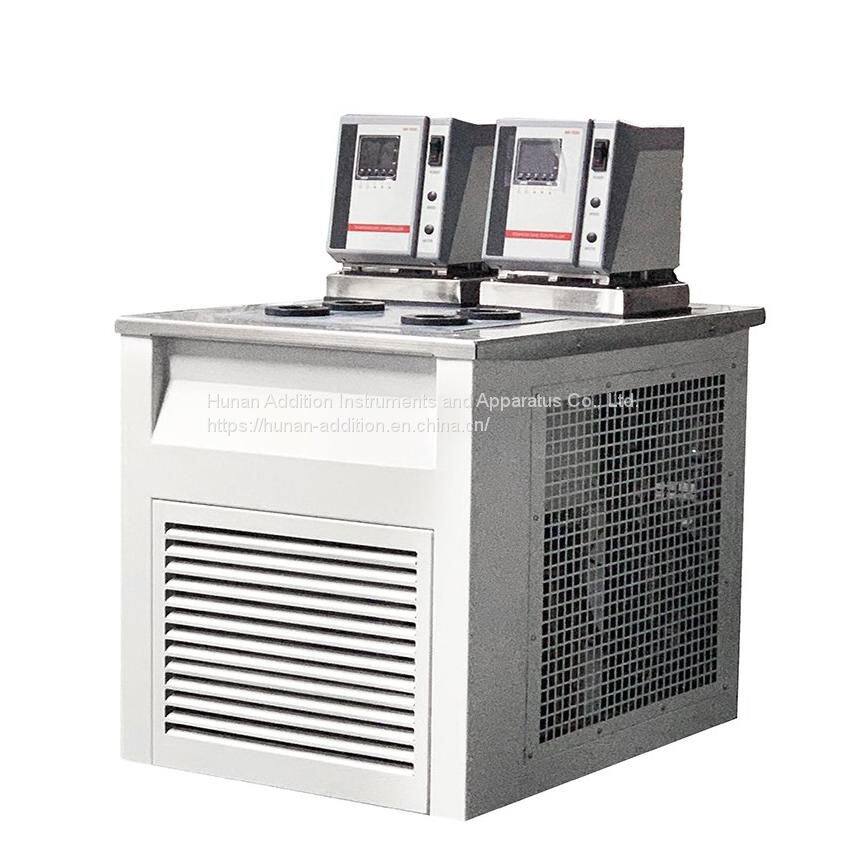

ASTM D97 Two-Slot Four-Hole Multi-Function Pour Point and Cold Filter Point Tester

Two-Slot Four-Hole Multi-Function Pour

Point and Cold Filter Point Tester   ASTM D97

Product model: JF3535C

Product Introduction

The instrument is cooled by a Danfoss compressor, using the most advanced refrigeration technology, so that both baths can reach a low temperature of -70°C.

Technical Parameter

1. Applicable standard: ASTM D97 ISO 3016 GB/T3535

2. Temperature control method: high-quality PID digital temperature controller

3. Temperature control accuracy: -70±0.1℃

4. Refrigeration method: high-quality dual-compressor refrigeration

5. Working unit: two slots and four holes

6. Power of the whole machine: 2000W

7. Working power supply: AC110,220,240V 50,60HZ

8. Instrument size: 600*500*600mm

9. Net weight: 53KG

 Main Features

1. The tester adopts dual-compressor cascade refrigeration, environmentally friendly refrigerant, and has a fast cooling speed.

2. Dry super-speed refrigeration technology, without adding medium, can reach -60 ℃ in 30 minutes;

3. The temperature of the two groups of baths is controlled separately, and each group can carry out 2 sample tests.

4. The instrument is made of cold-rolled steel plate, and the surface is electrostatically sprayed, which has the functions of corrosion resistance and easy cleaning.

5. The instrument welding adopts touch welding technology, no solder joints, beautiful appearance and generous appearance.

6. Omron PID thermostat, digital display temperature, accuracy 0.1℃

7. The structure is compact and can be directly placed on the test bench for operation;
