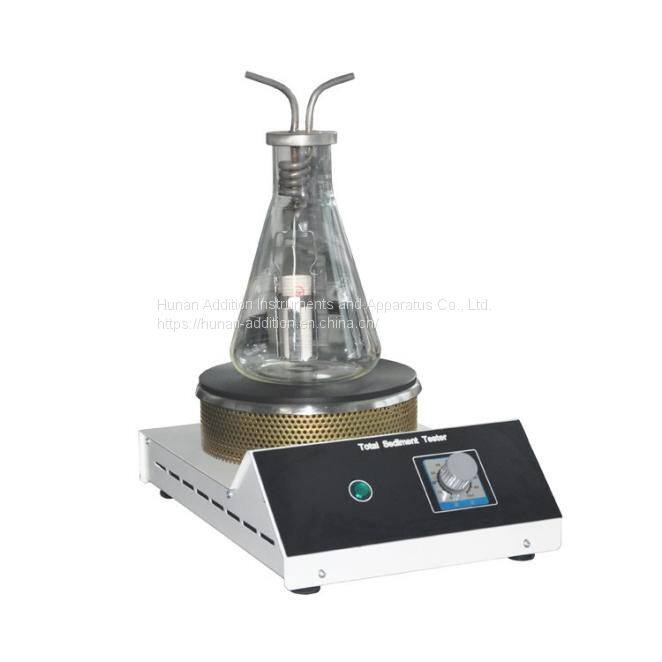

Sediment in Crude Oils and Fuel Oils Tester ASTM D473

Product model: JF6531

 Product Introduction

This instrument is manufactured according to the ASTM D473 standard, and is suitable for detecting the sediment content in crude oil and fuel oil by extraction.

Technical Parameter

1. Applicable standard: GB/T6531 ISO3735

2. Temperature control method: high-power voltage regulator

3. Heating method: electric heating plate

4. Voltage regulation method: precision potentiometer

5. Work unit: a unit

6. Working power supply: AC220V/50Hz

7. Power of the whole machine: 1.5KW

8. Instrument size: 300*250*400mm

9. Net weight: 6KG

Main Feature

1. The instrument is a desktop, with a compact structure and easy to use

2. Anti-skid heating plate supported by abrasive tool;

3. Environmentally friendly metal bath heating, reducing the harm of oil fume to the human body, and efficient thermal insulation effect;

4. The high-precision wire-wound potentiometer is used for voltage regulation and liquid crystal display, which makes the temperature control in the later stage of the test reliable and the test effect is better;

5. There are cooling holes around the heating plate;

6. Potentiometer with switch function;

7. Stainless steel sleeve frame;

8. Stainless steel condenser;
