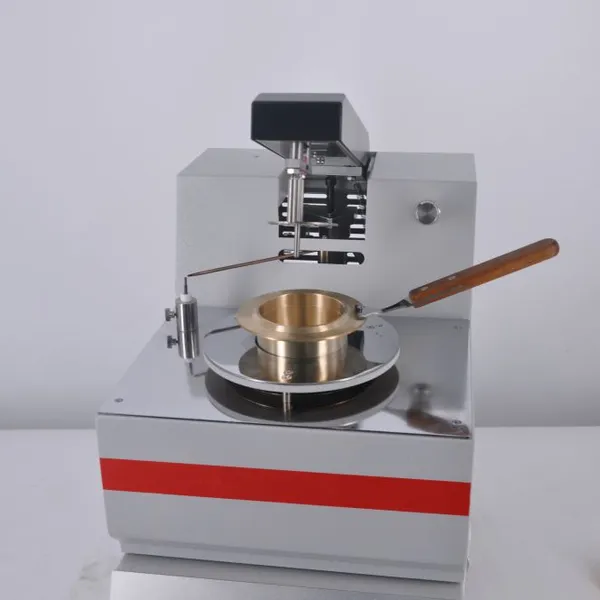

Full Automatic Open Flash and Fire Points Tester ASTM D92
Product model: JF3536Z
Product Introduction
This instrument is suitable for determining the flash point and fire point of petroleum products. Principle: Load the sample into the test cup to the specified scribe line. Raise the temperature of the sample rapidly first, then slowly. As the flash point is approached, the temperature rises at a constant rate. At specified temperature intervals, a small test flame is passed across the test cup so that the maximum temperature at which the vapour flashes on the surface of the sample is taken as the flash point.
Technical parameter
1. Applicable standards: ISO2592, ASTM D92
2. Heating method: closed electric furnace, High quality furnace wire
3. Temperature regulation method: solid-state voltage regulator
4. Sweeping method: automatic sweeping and automatic ignition
5. Heating power: 0～800W adjustable
6. Working power supply: AC220,240V/50,60HZ
Main Feature
1. Heat-resistant glass partition is used on the heater to prevent the oil sample from splashing and catching fire;
2, heating for 20 minutes without operation automatic light machine;
3. If the temperature is too high, it will automatically start air cooling;
4. Digital display heating power, adjustable;
5. Anti-mistouch design, press and hold the switch for 3 seconds to automatically heat;
