Product Description

Description

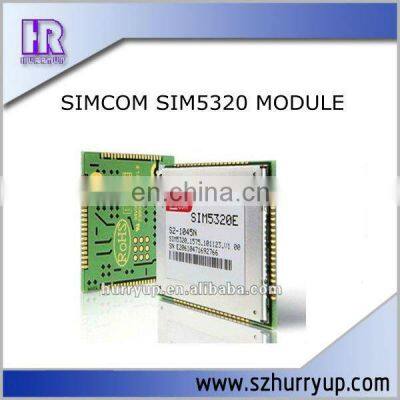

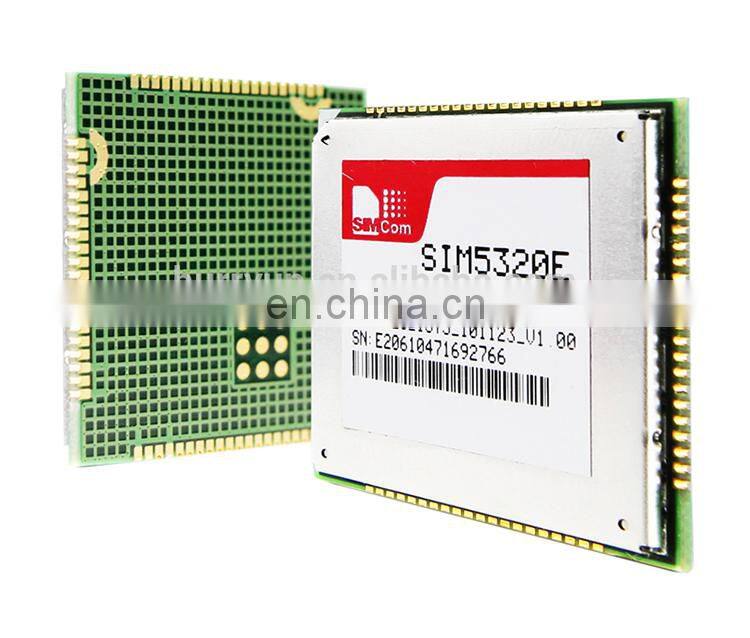

SIM5320 SIMCOM gsm/gprs gps module

1.Tri-Band/Single-Band HSPA/WCDMA
2.Quad-Band GSM/GPRS/EDGE module solution
3.low price

• SMT type 3G WCDMA Module SIM5320
SIM5320 series is Dual-Band HSDPA/WCDMA and Quad-Band GSM/GPRS/EDGE module solution in a SMT type which supports HSDPA up to 3.6Mbps for downlink data transfer.

• It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C, Keypad, PCM, etc. With abundant application capability like embedded LUA script, TCP/ UDP/ FTP/ FTPS/ HTTP/ HTTPS/ SMTP/ POP3 and MMS, the module provides much flexibility and ease of integration for customer's application. It is ideal for a wide range of products like PDA, MID, PND, POS, Tracker, AMI, Health Care etc.

General features
SIM5320A:

Dual-Band UMTS/HSDPA 850/1900MHz
Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

SIM5320E:

Dual-Band UMTS/HSDPA 900/2100MHz
Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

SIM5320J:

Dual-Band UMTS/HSDPA 850(800)/2100MHz
Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

* GPRS multi-slot class 12
* EDGE multi-slot class 12
* WCDMA 3GPP release 5
* Output power
- UMTS 850/1900: 0.25W
- UMTS 900/2100: 0.25W
- GSM850/GSM900: 2W
- DCS1800/PCS1900: 1W
* Control Via AT Commands
* Supply voltage range: 3.3V~ 4.2V
* Extended Operation temperature: -30 to +85
* Dimension: 30 * 30* 2.9g
* Weight: 5.6

Specifications for GPS
* A-GPS: MS-Based, MS-Assisted
* Stand-alone GPS
Support embedded Script Language
* LUA Script Language

Specifications for Data transfer
* HSDPA
- Max. 3.6Mbps(DL)
* WCDMA
- Max. 384Kbps(DL), Max. 384Kbps(UL)
* EDGE Class:
- Max. 236.8Kbps(DL), Max. 118Kbps(UL)
* GPRS
- Max. 85.6Kbps(DL), Max. 42.8Kbps(UL)
* CSD
- GSM data rate 14.4Kbps
- WCDMA data rate 57.6Kbps
- WCDMA 64kbps CSD for Video call

Specifications for SMS
* Point to point MO and MT
* Text and PDU mode

Specifications for Network Identity and Time zone (NITZ)
* Support in GSM and WCDMA

Other features
* USB Driver for Microsoft Windows 2000/XP/Vista
* USB Driver for Windows CE/Mobile
* USB Driver for Linux 2.6
* Firmware update via USB
* MMS
* TCP/IP
* FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS
* FOTA
* eCall Reday

Interfaces
* USB2.0
* UART
* SIM card
* SPI
* I2C
* Keypad
* Constant current sink
* GPIO
* RTC
* ADC
* PCM
