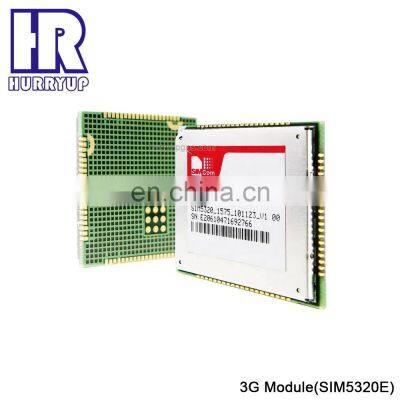

SIMCOM 3G Module, SIM5320, SIM5320A, SIM5320E, SIM5320J
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SIMCOM SIM5320 3G/GSM/GPRS Module Sim5320A Sim5320E Sim5320JNegotiableMOQ: 1 -
2017 Original New Stock Electronics ic Simcom Sim5300EA/sim5300E Wcdma 3g Gsm Module Low Price WholesaleNegotiableMOQ: 1
-
WCDMA/GSM/GPRS/EDGE 3G Module SIM5215A SIM5215E Cheap PriceNegotiableMOQ: 1
-
SIMCOM SIM5320 3G/GSM/GPRS Module SIM5320A SIM5320E SIM5320JNegotiableMOQ: 1
-
HURRYUP Low Price Dual-Band GSM GPRS Module Simcom 3g Gsm Module SIM5300E Electronic Components WholesaleNegotiableMOQ: 1
Description
SIM5320 WCDMA/HSPA/HSPA+ Module SIM5320A, SIM5320J, SIM5320E
• The SIM5320 series is Dual-Band HSDPA/WCDMA and Quad-Band GSM/GPRS/EDGE module in a SMT package which supports HSDPA up to 3.6Mbps for downlink data transfer.
It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C,Keypad, PCM, etc. With abundant application capability like embedded LUA script, TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer’s application. It is ideal for a wide range of products like PDA, MID, PND, POS, Tracker, AMI, Health Care etc.
It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C,Keypad, PCM, etc. With abundant application capability like embedded LUA script, TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer’s application. It is ideal for a wide range of products like PDA, MID, PND, POS, Tracker, AMI, Health Care etc.
General features
• SIM5320A:
- Dual-Band UMTS/HSDPA 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• SIM5320(J)E:
- Dual-Band UMTS/HSDPA 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• SIM5320J:
- Dual-Band UMTS/HSDPA 850(800)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• GPRS multi-slot class 12
• EDGE multi-slot class 12
• Output power
- UMTS 850/1900: 0.25W
- UMTS 900/2100: 0.25W
- GSM850/GSM900: 2W
- DCS1800/PCS1900: 1W
• Control Via AT Commands
• Supply voltage range: 3.4~ 4.2V
• Operation temperature: -30℃ to +80℃
• Extended operation temperature: -40℃ to +85℃
• Dimension: 30 * 30 * 2.9 mm
• Weight: 5.6g
Support embedded Script Language
• LUA Script Language
• Embedded AT *
Specifications for GPS/Location
• CELL assistant Location (No GPS)
• A-GPS: MS-Based, MS-Assisted
• Stand-alone GPS
• QUALCOMM XTRA GPS mode
Specifications for Data transfer
• HSDPA
- Max. 3.6Mbps(DL)
• WCDMA
- Max. 384Kbps(DL), Max.384Kbps(UL)
• EDGE Class:
- Max. 236.8Kbps(DL), Max.118Kbps(UL)
• GPRS
- Max. 85.6Kbps(DL), Max.42.8Kbps(UL)
• CSD
- GSM data rate 14.4Kbps
- WCDMA data rate 57.6Kbps
- WCDMA 64kbps CSD for Video call
• Multi-PDP connect application
Specifications for SMS
• Point to point MO and MT
• Text and PDU mode
• SIM5320A:
- Dual-Band UMTS/HSDPA 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• SIM5320(J)E:
- Dual-Band UMTS/HSDPA 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• SIM5320J:
- Dual-Band UMTS/HSDPA 850(800)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• GPRS multi-slot class 12
• EDGE multi-slot class 12
• Output power
- UMTS 850/1900: 0.25W
- UMTS 900/2100: 0.25W
- GSM850/GSM900: 2W
- DCS1800/PCS1900: 1W
• Control Via AT Commands
• Supply voltage range: 3.4~ 4.2V
• Operation temperature: -30℃ to +80℃
• Extended operation temperature: -40℃ to +85℃
• Dimension: 30 * 30 * 2.9 mm
• Weight: 5.6g
Support embedded Script Language
• LUA Script Language
• Embedded AT *
Specifications for GPS/Location
• CELL assistant Location (No GPS)
• A-GPS: MS-Based, MS-Assisted
• Stand-alone GPS
• QUALCOMM XTRA GPS mode
Specifications for Data transfer
• HSDPA
- Max. 3.6Mbps(DL)
• WCDMA
- Max. 384Kbps(DL), Max.384Kbps(UL)
• EDGE Class:
- Max. 236.8Kbps(DL), Max.118Kbps(UL)
• GPRS
- Max. 85.6Kbps(DL), Max.42.8Kbps(UL)
• CSD
- GSM data rate 14.4Kbps
- WCDMA data rate 57.6Kbps
- WCDMA 64kbps CSD for Video call
• Multi-PDP connect application
Specifications for SMS
• Point to point MO and MT
• Text and PDU mode
Other features
• USB Driver for Microsoft Windows 2000/XP/Vista/7/8
• USB Driver for Windows CE/Mobile
• USB Driver for Linux /Android
• Firmware update via USB
• MMS
• TCP/IP
• MUX protocol over UART
• FTP/FTPS/HTTP/HTTPS/SMTP/DNS
• FOTA
Interfaces
• USB2.0
• UART
• SIM card
• SPI
• I2C
• Keypad
• Constant current sink
• GPIO
• RTC
• ADC
• MIc/Receiver **
• PCM **
Certifications
• SIM5320A
- FCC
- PTCRB
- IC
- ROHS,
- REACH
• SIM5320E
- CE
- GCF
- ROHS
- REACH
- NCC
- CCC
- CTA
• SIM5320J(E)
- Telec
- JATE
Carrier Approvals
• SIM5320A
- AT&T
- Rogers
• SIM5320E
- TIM
- Orange
- Vodafone
• SIM5320J
- Docomo
• SIM5320JE
- SoftBank
• USB Driver for Microsoft Windows 2000/XP/Vista/7/8
• USB Driver for Windows CE/Mobile
• USB Driver for Linux /Android
• Firmware update via USB
• MMS
• TCP/IP
• MUX protocol over UART
• FTP/FTPS/HTTP/HTTPS/SMTP/DNS
• FOTA
Interfaces
• USB2.0
• UART
• SIM card
• SPI
• I2C
• Keypad
• Constant current sink
• GPIO
• RTC
• ADC
• MIc/Receiver **
• PCM **
Certifications
• SIM5320A
- FCC
- PTCRB
- IC
- ROHS,
- REACH
• SIM5320E
- CE
- GCF
- ROHS
- REACH
- NCC
- CCC
- CTA
• SIM5320J(E)
- Telec
- JATE
Carrier Approvals
• SIM5320A
- AT&T
- Rogers
• SIM5320E
- TIM
- Orange
- Vodafone
• SIM5320J
- Docomo
• SIM5320JE
- SoftBank
Why Choose Us
FAQ
Q1. What is the minimum order quantity for your products?
A1. Minimum order quantity starts from ONE piece.
Q2. What's the quality of your products?
A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.
Q3. Is this product free of shipping or free samples?
A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
