SIM800L Ultra Small GSM GPRS Module

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Description

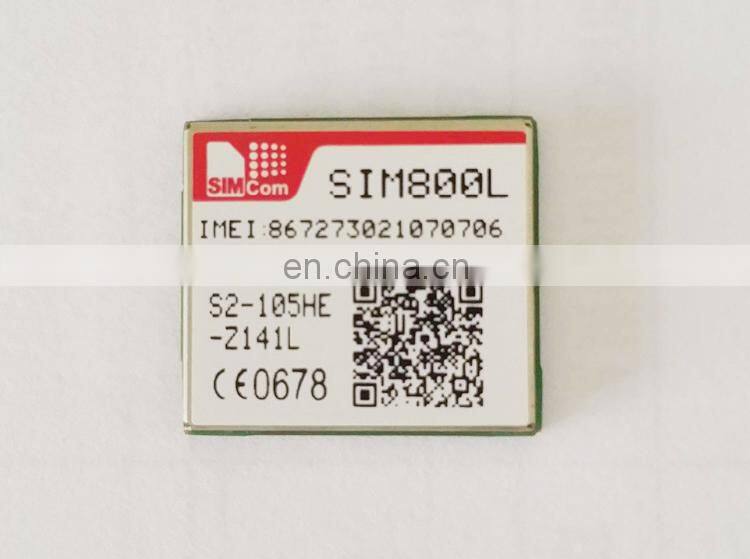

SIMCom Quad-band GSM/GPRS Module SIM800L

SIM800L Specifications
1. Quad-Band 850/900/1800/1900MHz
2. cost-effective solutions
3. New& Original

• SIM800L is a complete Quad-band GSM/GPRS solution in a LGA type which can be embedded in the customer applications.

• SIM800L support Quad-band 850/900/1800/1900MHz, it can transmit Voice, SMS and data information with low power consumption. With tiny size of 15.8*17.8*2.4 mm, it can fit into slim and compact demands of customer design.

General features
• Quad-band 850/900/1800/1900MHz
• GPRS multi-slot class 12/10
• GPRS mobile station class B
• Compliant to GSM phase 2/2+
• Class 4 (2 W 850/900 MHz)
• Class 1 (1 W 1800/1900MHz)
• FM: 76~109MHz worldwide bands with 50KHz tuning step
• Dimensions: 15.8*17.8*2.4 mm
• Weight: 1.35g
• Control via AT commands (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)
• Supply voltage range 3.4 ~ 4.4V
• Low power consumption
• Operation temperature:-40°C~85°C

Specifications for GPRS Data
• GPRS class 12: max. 85.6 kbps (downlink/uplink)
• PBCCH support
• Coding schemes CS 1, 2, 3, 4
• PPP-stack
• CSD up to 14.4 kbps
• USSD
• Non transparent mode

Specifications for SMS via GSM/GPRS
• Point to point MO and MT
• SMS cell broadcast
• Text and PDU mode

Software features
• 0710 MUX protocol
• Embedded TCP/UDP protocol
• FTP/HTTP
• MMS
• E-MAIL
• DTMF
• Jamming Detection

Specifications for voice
• Tricodec Half rate (HR) Full rate (FR) Enhanced Full rate (EFR)
• AMR Half rate (HR) Full rate (FR)
• Hands-free operation (Echo suppression)

Interfaces

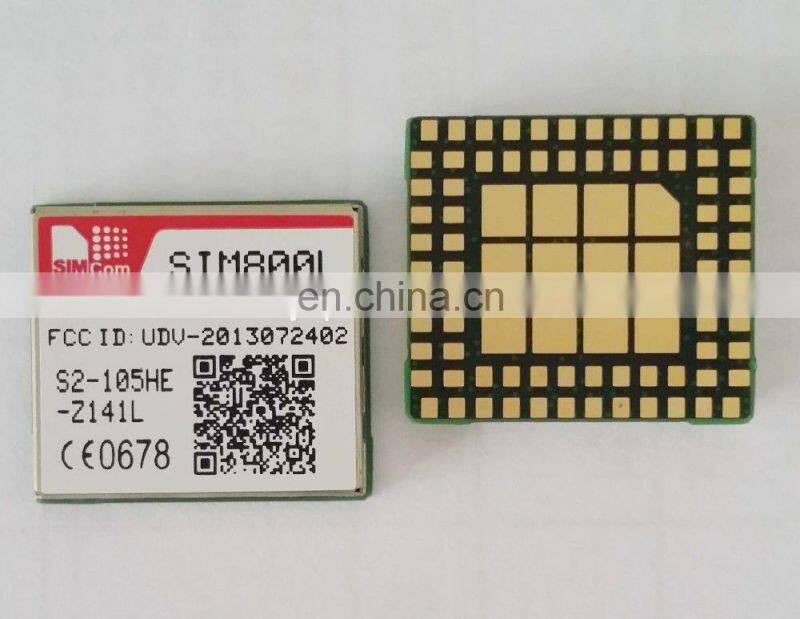

• 88 LGA pads including:
• Analog audio interface
• PCM interface
• RTC backup
• Serial interface
• USB interface
• Interface to external SIM 3V/1.8V
• Keypad interface
• GPIO
• ADC
• GSM Antenna pad
• FM Antenna pad

Compatibility
• AT cellular command
• Certifications(Plan):
• CE GCF FCC ROHS REACH
