SIMCOM SIM7020G Global-Band NB-IoT LPWA Module, SIM7020G IoT Module LCC+LGA Form Factor
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Multi-Band LTE-FDD and Dual-Band GPRS/EDGE Module SIMCOM SIM7000CNegotiableMOQ: 1 -
SIM7020G Global-Band NB-IoT LPWA Module SMT TypeNegotiableMOQ: 1
-
Multi-Band LTE-FDD/HSPA LTE CAT1 up to 10Mbps SIMCOM SIM7500A ModuleNegotiableMOQ: 1
-
SIMCOM SIM7230E 4G LTE Cellular Module Evaluation Development Board SIM7230E PCIeNegotiableMOQ: 1
-
SIMCOM SIM7100E LTE Module, 4G Module Cat.3, Mini PCIe Form FactorNegotiableMOQ: 1
Description

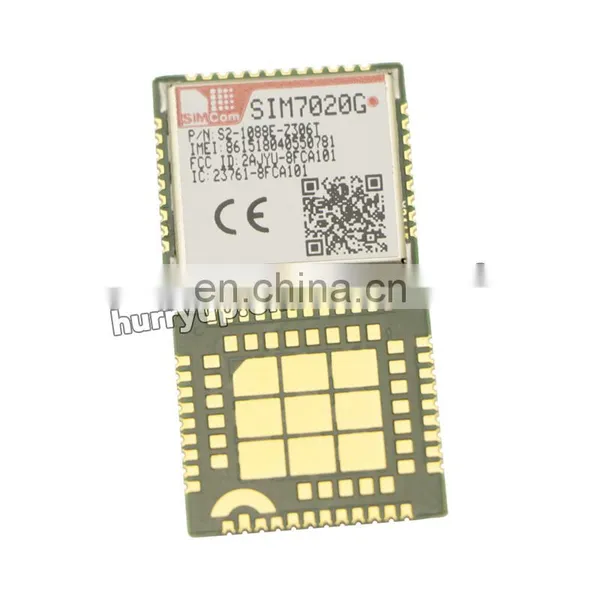

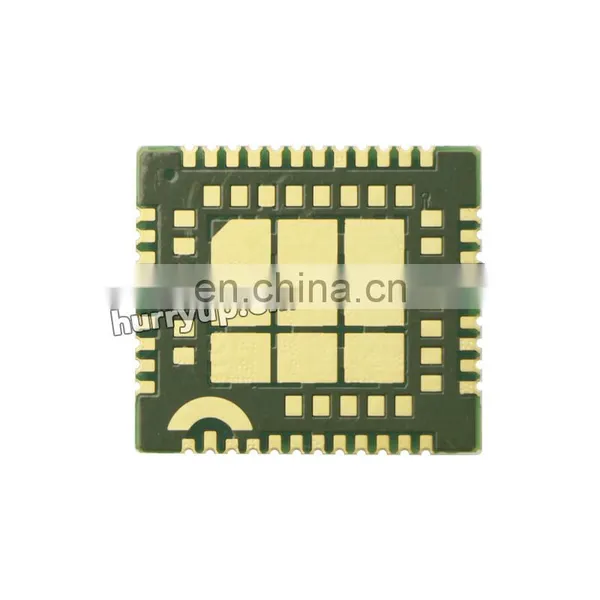

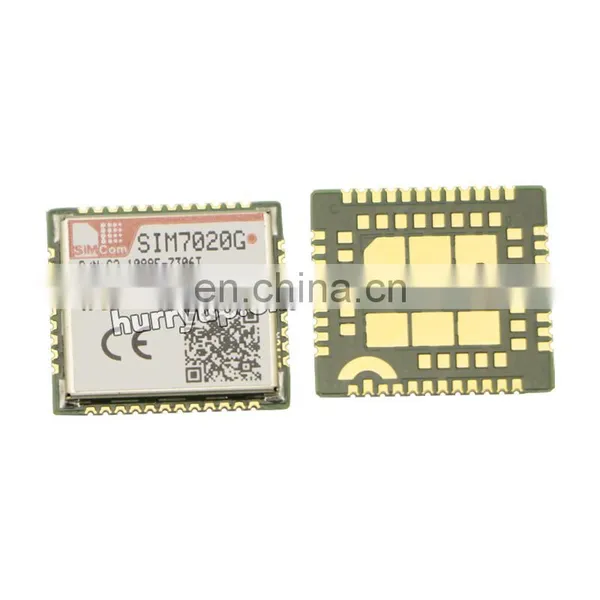

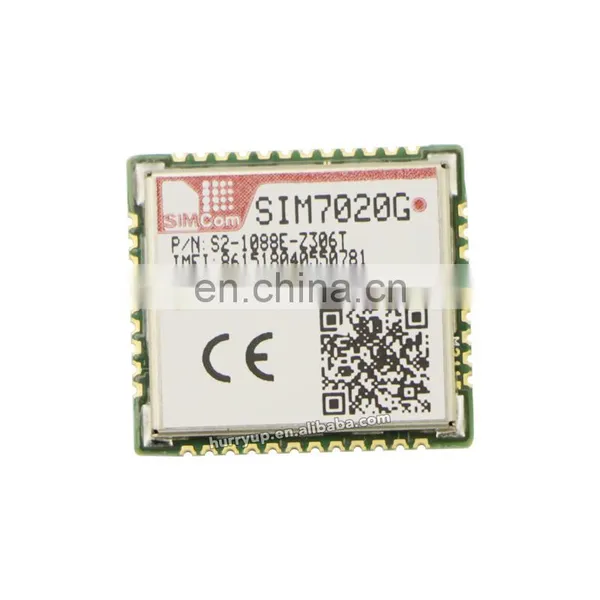

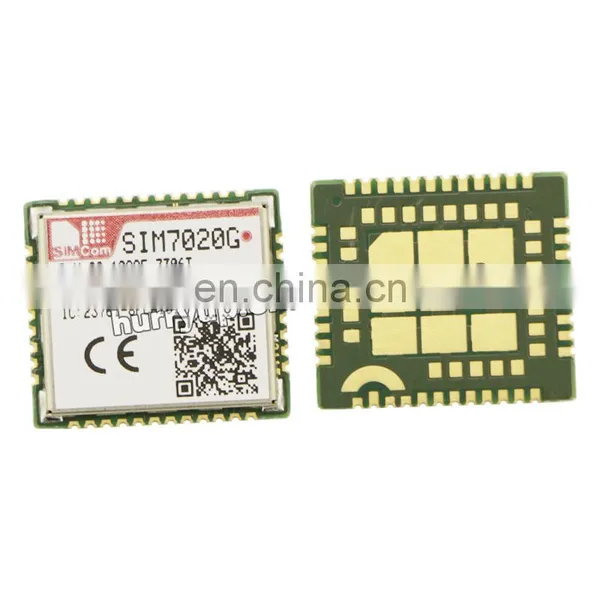

SIMCOM SIM7020G
●The SIM7020G is Global-Band NB-IoT module solution in a SMT type. It has strong extension capability with rich interfaces including UART, SPI,I2C, GPIO etc. The module provides much flexibility and ease of integration for customer's application.
-
●The package (LCC part) of SIM7020G is compatible with SIM800C (2G module with LCC package). This also maximizes the investments of customers, and enables a short time-to-market.
-
●It is designed for applications that need low latency, Low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring, E-health etc.
-
Product Advantages
● With Power Save Mode(PSM) and Extended Discontinuous Reception(eDRX), SIM7020G can extend battery life to 10 years;
● SIM7020G provides deeper coverage enhancement compared to GSM;
● The package and AT commands of SIM7020G mostly are compatible with SIM800C.
-
General Features
● Support Bands:
B1/B2/B3/B4/B5/B8/B12/B13/B17/ B18/B19/B20/B25/B26/B28/ B66/B70/B71
● Control Via AT Commands
● Supply voltage range: 2.1V-3.6V
● Operation temperature: -40℃ to +85℃
● Dimensions: 17.6 X 15.7 X 2.3mm
● Weight: TBD
-
Data
● Uplink: 150Kbps Downlink:100Kbps
-
SMS
● Text and PDU mode
-
Consumption
● PSM: 3.5 uA
● sleep: 0.4mA
● Idle: 5.6mA
● eDRX: 30uA （eDRX=655.36s）
-
Other Features
● TCP/UDP
● HTTP/HTTPS/TLS/DTLS/DNS/NTP/PING
● LWM2M/COAP/MQTT
● Aira Cloud
● Firmware update via UART
● FOTA
● EAT*
-
Interfaces
● UART
● SIM card (1.8V/3V)
● SPI
● I2C
● GPIO
● ADC
● Netlight
● PSM_EINT
● Reset
● Powerkey
-
Certifications
● CE/FCC
● RoHS / REACH
