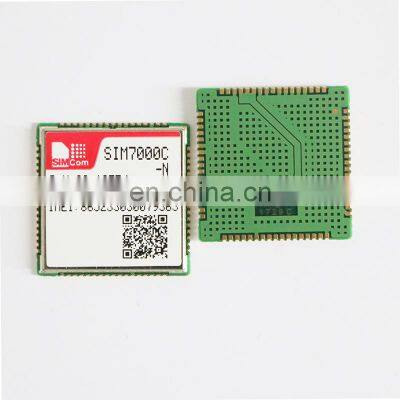

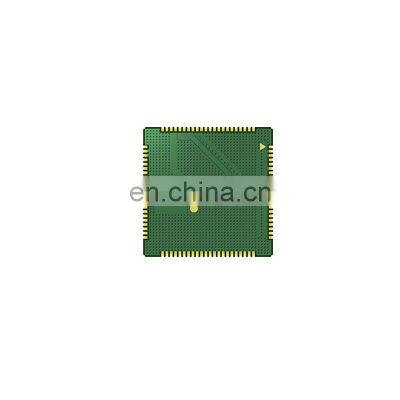

Multi-Band LTE-FDD and Dual-Band GPRS/EDGE Module SIMCOM SIM7000C
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SIM7020G Global-Band NB-IoT LPWA Module SMT TypeNegotiableMOQ: 1 -
Multi-Band LTE-FDD/HSPA LTE CAT1 up to 10Mbps SIMCOM SIM7500A ModuleNegotiableMOQ: 1
-
SIMCOM SIM7230E 4G LTE Cellular Module Evaluation Development Board SIM7230E PCIeNegotiableMOQ: 1
-
SIMCOM SIM7100E LTE Module, 4G Module Cat.3, Mini PCIe Form FactorNegotiableMOQ: 1
-
SIMCom 4G Module, SIM7100ENegotiableMOQ: 1
Description
• The SIM7000C is Multi-Band LTE-FDD and Dual-Band GPRS/EDGE module solution in a SMT type which supports LTE CAT-M1(eMTC) and NB-IoT up to 375kbps data transfer.
• It has strong extension capability with rich interfaces including UART, USB2.0, GPIO etc. The module provides much flexibility and ease of integration for customer's application.
• The package of SIM7000C is compatible with SIM900 and SIM800 series. AT commands of SIM7000C are mostly compatible with SIM800 series. This also enables a short time-to-market.
• It is designed for applications that need low latency, medium throughput data communication in a variety of radio propagation conditions.
• It has strong extension capability with rich interfaces including UART, USB2.0, GPIO etc. The module provides much flexibility and ease of integration for customer's application.
• The package of SIM7000C is compatible with SIM900 and SIM800 series. AT commands of SIM7000C are mostly compatible with SIM800 series. This also enables a short time-to-market.
• It is designed for applications that need low latency, medium throughput data communication in a variety of radio propagation conditions.
• Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, telematics, asset tracking, remote monitoring ,E-health , mobile pos terminals and sharing bike.
DetailsGeneral features
• Quad-Band FDD-LTE B1/B3/B5/B8
• GPRS/EDGE 900/1800Mhz
• Output power
- GSM900: 2W
- DCS1800: 1W
• Control Via AT Commands
• Supply voltage range: 3.0V~ 4.3V, Typ: 3.8V
• Operation temperature: -40℃ to +85℃
• Dimensions: 24 X 24 X 2.6mm
• Weight: 3.0g
• GNSS (GPS,GLONASS and BeiDou/Compass, Galileo, QZSS)
Specifications for Data transfer
• LTE CAT-M1(eMTC)
- Uplink up to 375kbps, Downlink up to 300kbps
• NB-IoT
- Uplink up to 66kbps, Downlink up to 34kbps
• EDGE Class
- Uplink up to 236.8Kbps, Downlink up to 236.8Kbps
• GPRS
- Uplink up to 85.6Kbps, Downlink up to 85.6Kbps
Other features
• USB Driver for Microsoft Windows XP/Vista/7/8
• USB Driver for Windows CE/Mobile
• USB Driver for Linux/Android
• Firmware update via USB
• TCP/IP
• PPP
• SMS
• EMAIL
• FTP/HTTP/SSL
• VoLTE*
• FOTA*
Interfaces
• USB2.0 x1 (high-speed)
• UART x2 (7-wire UART and 2-wire UART interface multiplex from GPIO)
• SIM card x1 (1.8V and 3V)
• I2C x1
• GPIO x5
• ADC x1
Consumption
• Power off: 7uA
• PSM: 9uA
• Sleep: 1mA
• Idle: 11mA
Certifications
• CE* / RoHS / REACH
DetailsGeneral features
• Quad-Band FDD-LTE B1/B3/B5/B8
• GPRS/EDGE 900/1800Mhz
• Output power
- GSM900: 2W
- DCS1800: 1W
• Control Via AT Commands
• Supply voltage range: 3.0V~ 4.3V, Typ: 3.8V
• Operation temperature: -40℃ to +85℃
• Dimensions: 24 X 24 X 2.6mm
• Weight: 3.0g
• GNSS (GPS,GLONASS and BeiDou/Compass, Galileo, QZSS)
Specifications for Data transfer
• LTE CAT-M1(eMTC)
- Uplink up to 375kbps, Downlink up to 300kbps
• NB-IoT
- Uplink up to 66kbps, Downlink up to 34kbps
• EDGE Class
- Uplink up to 236.8Kbps, Downlink up to 236.8Kbps
• GPRS
- Uplink up to 85.6Kbps, Downlink up to 85.6Kbps
Other features
• USB Driver for Microsoft Windows XP/Vista/7/8
• USB Driver for Windows CE/Mobile
• USB Driver for Linux/Android
• Firmware update via USB
• TCP/IP
• PPP
• SMS
• FTP/HTTP/SSL
• VoLTE*
• FOTA*
Interfaces
• USB2.0 x1 (high-speed)
• UART x2 (7-wire UART and 2-wire UART interface multiplex from GPIO)
• SIM card x1 (1.8V and 3V)
• I2C x1
• GPIO x5
• ADC x1
Consumption
• Power off: 7uA
• PSM: 9uA
• Sleep: 1mA
• Idle: 11mA
Certifications
• CE* / RoHS / REACH
