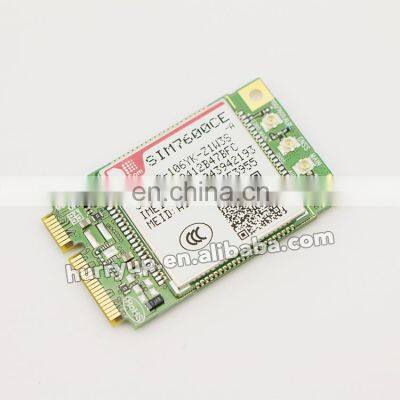

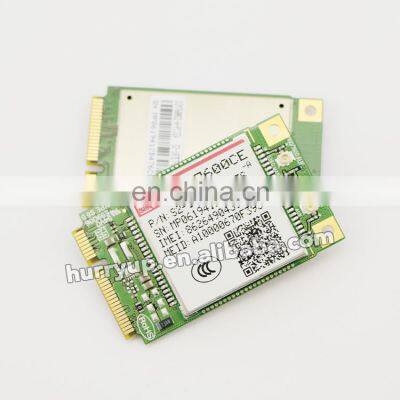

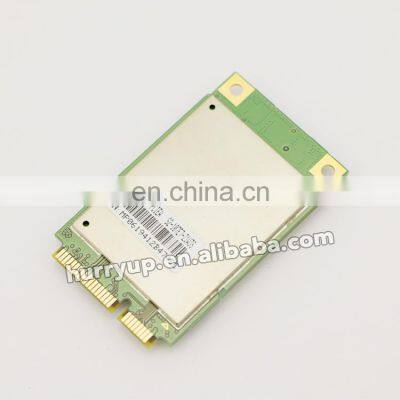

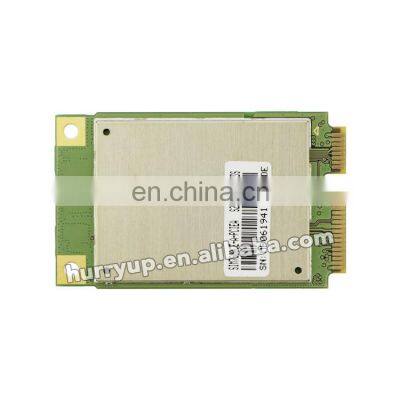

SIMCOM SIM7600CE Mini PCIe 4G LTE Module M2M Cellular Module SIM7600CE SIM7600CE-A
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SIM7600A-H Multi-band LTE-FDD/LTE-TDD/HSPA+/UMTS/EDGE/GPRS/GSM Module LCC Type Supports LTE CAT4 4G Module SIM7600NegotiableMOQ: 1 -
SIMCOM SIM7500 4G LTE Module Integrates With GNSS System, SIM7500A SIM7500E SIM7500SANegotiableMOQ: 1
-
SIMCOM Wireless SIM7500E 4G LTE Module, SIM7500A SIM7500SA SIM7500 MPCIe ModuleNegotiableMOQ: 1
-
4G LTE Wireless Module SIM7600ANegotiableMOQ: 1
-
New and Original SIMCOM FDD SIM7600CE 4G LTE GSM Module With Good PriceNegotiableMOQ: 1
Description
SIM7600CE
SIMCOM SIM7600CE is Multi-Band LTE-TDD/LTE-FDD/HSPA+/TD-SCDMA/EVDO and Dual-Band GSM/GPRS/EDGE module solution in an SMT type which supports LTE CAT4 up to 150Mbps for downlink data transfer. It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C, GPIO etc. With abundant application capability like TCP/ UDP/ FTP/ FTPS/ HTTP/ HTTPS/ SMTP/ POP3 and MMS, the module provides much flexibility and ease of integration for customer's application.SIMCOM SIM7600CE is LCC packaged or Mini PCIe to support LTE TDD B38/B39/B40/B41, LTE FDD B1/B3/B8, TD-SCDMA B34/B39, UMTS/ HSDPA/ HSPA+ B1/B8, CDMA 1X/EVDO BC0 and GSM/GPRS/EDGE900/1800 MHz frequency bands.
Specifications:
• Chipset: Qualcomm MDM9207-0
• Support 4G TDD-LTE Band B38/B39/B40/B41
• Support 4G FDD-LTE Band B1/B3/B8
• Support 3G UMTS/HSDPA/HSPA+ Band B1/B8
• Support 3G TD-SCDMA Band B34/B39
• CDMA 1X/EVDO BC0
• GSM/GPRS/EDGE 900/1800 MHz
• Control Via AT Commands
• Supply voltage range: 3.4V~ 4.2V
• Operation temperature: -40℃ to +85℃
• Dimension: 30 X 30X 2.9 mm
• Weight: 5.5g
• GNSS gpsOne Gen 8B; standalone; assisted, XTRA;
Specifications for Data transfer
• LTE: uplink up to 50Mbps, downlink up to 150Mbps
• TD-HSDPA/HSUPA: Uplink up to 2.2 Mbps, Downlink up to 2.8 Mbps
• TD-SCDMA: Uplink up to 128Kbps, Downlink up to 384Kbps
• HSPA+: Uplink up to 5.76 Mbps, Downlink up to 42 Mbps
• UMTS: Uplink/Downlink up to 384Kbps
• EDGE Class: Max. 236.8Kbps(DL),Max. 236.8Kbps(UL)
• GPRSMax. 85.6Kbps(DL), Max. 85.6Kbps(UL)
• CSD: GSM data rate 14.4Kbps, WCDMA data rate 57.6Kbps, WCDMA 64kbps CSD for Video call
Other features
• USB Driver for Microsoft Windows2000/XP/Vista/7/8
• USB Driver for Windows CE/Mobile
• USB Driver for Linux /Android
• RIL supporting for Android/Windows CE/Mobile
• Automatic installation for windows
• Linux API SDK
• Firmware update via USB
• TCP/IP/IPV4/V6 Multi-PDP,MT PDP
• FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS/MMS
• DTMF
• Gobi SDK to the Win7/Win8/Linux
• MBIM to Win8
• Source code of the PC manager of the device for reference
Interfaces
- USB2.0
- UART
- SIM card
- SPI
- I2C
- Keypad(5*5)
- Constant current sink
- GPIO
- ADC
- PCM
- SDIO
Certifications
ROHS, REACH , CCC
