Home > Products > Wireless Module > SIMCOM Low Power Consumption Cat-NB Module SIM7060R

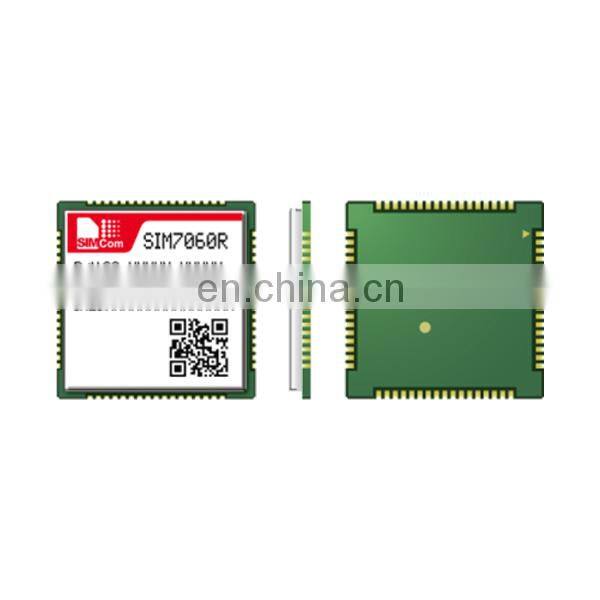

SIMCOM Low Power Consumption Cat-NB Module SIM7060R
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
SIMCOM CAT-M1 Module LTE Multi-Band Module SIM7000E-N
-
Best Price GPS GSM GPRS Chip Module SIMCOM SIM68MB Electronics Component shenzhen
-
SIMCOM Best GPS Receiver Module SIM39EA
-
SIMCOM Wireless Low Price GPS Module SIM28M New Original
-
SIMCOM GPS GNSS Antenna Module SIM33EAU with Embedded Patch Antenna
-
SIMCOM Wireless SIM28ML GPS Module
Product Description
Description
SIM7060R
SIM7060R is the LPWA module which supports wireless communication mode of Cat-NB.
SIM7060R adopts LCC form factor and has a compact size of 24mm*24mm which makes it ideal for compact products design.
SIM7060R has powerful expansibility with abundant interfaces including UART, GPIO, SPI, I2C etc. The SIM7060R is designed for applications that need low latency, low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring, E-health etc.
Product Advantages
● With Power Save Mode(PSM) and Extended Discontinuous Reception(eDRX), SIM7060R can extend battery life to 10 years
● SIM7060R provides deeper coverage enhancement compared to GSM
● The form factor of SIM7060R is compatible with SIM7000&SIM7060G
General Features | Power Consumption |
SIM7060: Cat-NB B1/B2/B3/B4/B5/B8/B12/B13/ B17/B18/B19/B20/B25/B26/B28/B31/B66/B70 Supply voltage range: 2.1V ~ 3.6V Control Via AT Commands Operation temperature: -40℃ ~ +85℃ Dimensions: 24*24*2.6mm Weight: 3.6g | PSM: 3.4uA Sleep: 0.4mA Idle: 5.6mA eDRX@655.36s: 30uA |
Other Features | Interfaces |
TCP/UDP/HTTP/HTTPS/ TLS/DTLS/DNS/PING/LWM2M/COAP/MQTT AYLA Cloud* Firmware update via USB FOTA EAT | UART SIM SPI I2C GPIO ADC |
Data | Certifications |
Cat-NB Uplink 62.5Kbps Downlink 26.15Kbps | CE* RoHS/REACH |
Why Choose Us
FAQ
Q1. What is the minimum order quantity for your products?
A1. Minimum order quantity starts from ONE piece.
Q2. What's the quality of your products?
A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.
Q3. Is this product free of shipping or free samples?
A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
