SIMCOM SIM7000E LTE CAT-M1(eMTC) and NB-IoT Module
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SIMCOM SIM7000A Multi-Band LTE-FDD Module Solution in a SMT TypeNegotiableMOQ: 1 -
SIMCOM SIM7020G Global-Band NB-IoT LPWA Module, SIM7020 IoT Module for GlobalNegotiableMOQ: 1
-
EMTC/NB-IoT/EDGE SIMCOM Module SIM7000G Mini PCIeNegotiableMOQ: 1
-
SIMCOM SIM7000G NB-IoT Module for Global, SIM7000G 4G LTE ModuleNegotiableMOQ: 1
-
SIMCOM SIM7000JC IoT Module LPWA NB-IoT ModulesNegotiableMOQ: 1
Description

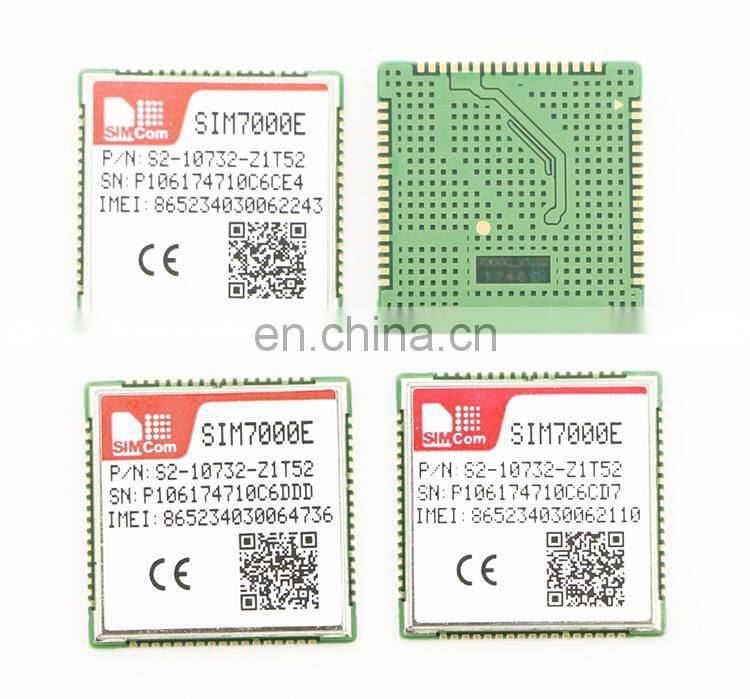

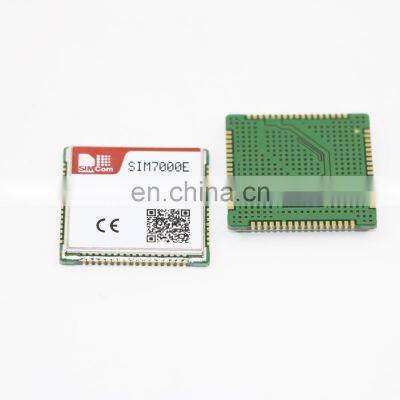

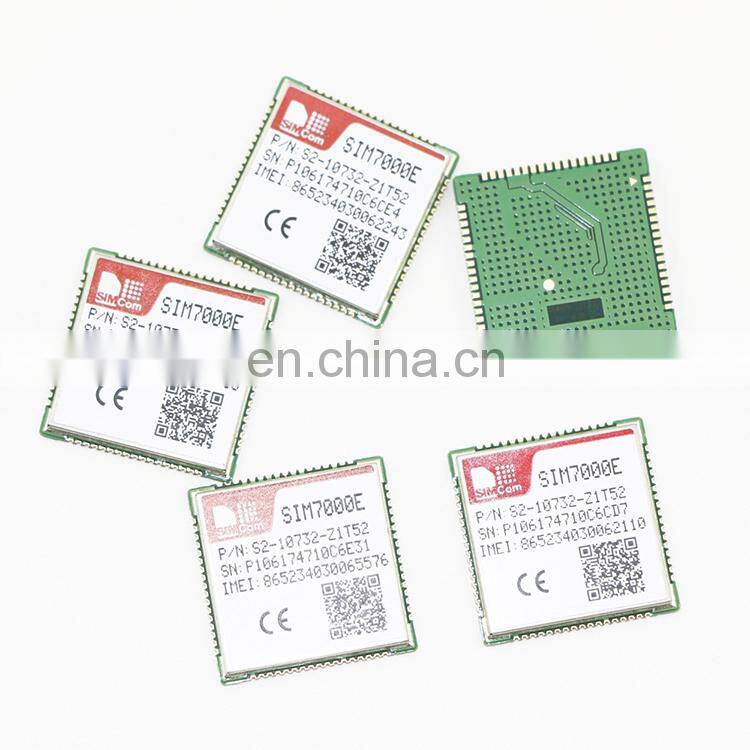

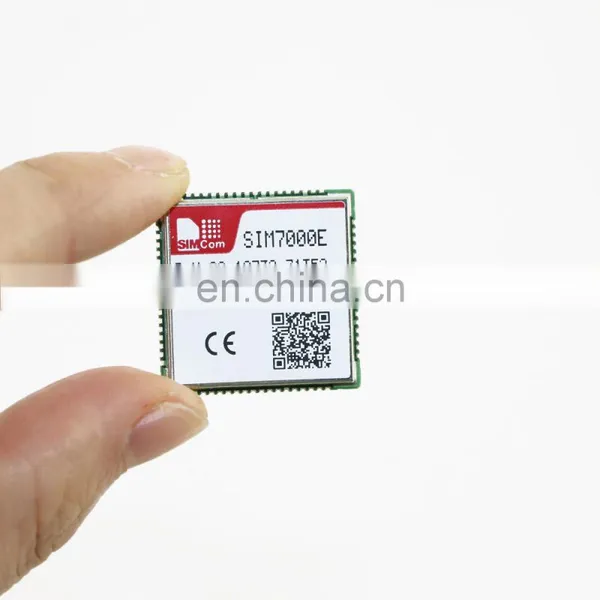

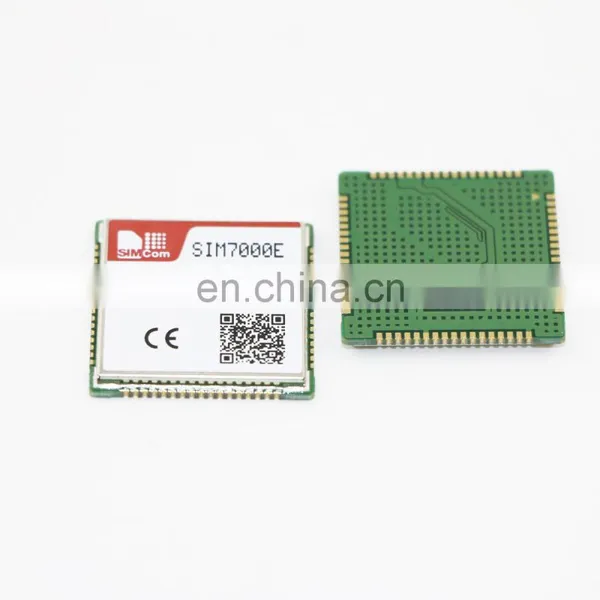

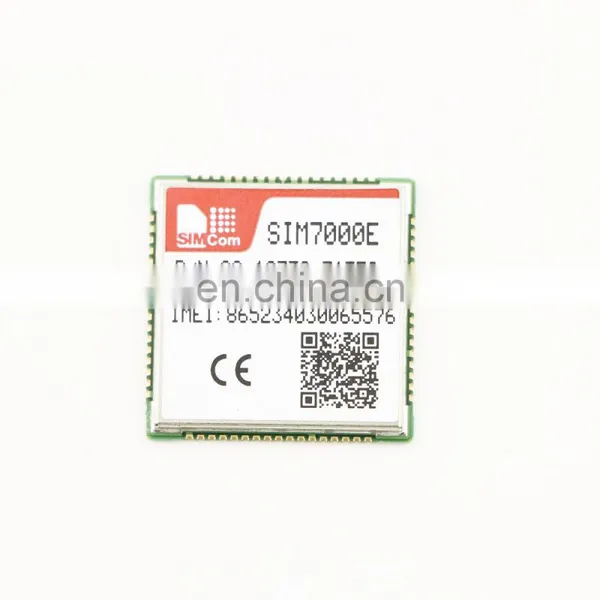

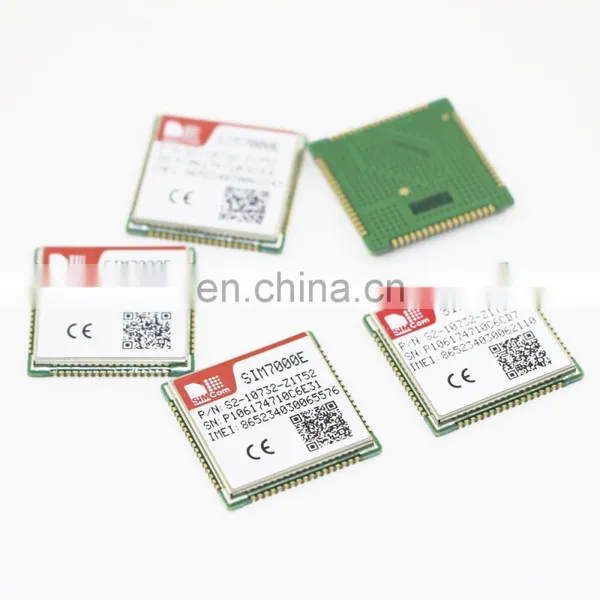

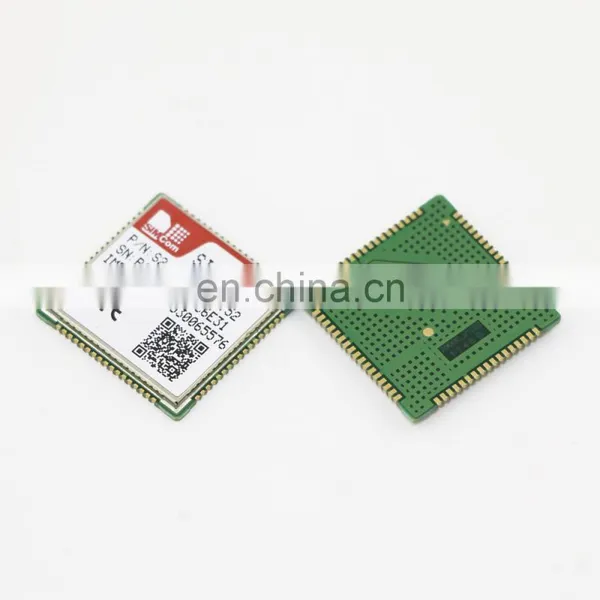

SIMCOM SIM7000E LTE CAT-M1(eMTC) and NB-IoT Module
• The SIM7000E is Multi-Band LTE-FDD module solution in aSMT type which supports LTE CAT-M1(eMTC) up to 375kbpsdata transfer.
• It has strong extension capability with rich interfacesincluding UART, USB2.0, GPIO etc. The moduleprovides much flexibility and ease of integration for customer's application.
• The package of SIM7000E is compatible with SIM900 and SIM800F. AT commands of SIM7000E are mostly compatible with SIM800F. This also minmize the investments of customers, and enables a short time-tomarket.
• It is designed for applications that need low latency, medium throughput data communication in a variety of radio propagation conditions.
• It has strong extension capability with rich interfacesincluding UART, USB2.0, GPIO etc. The moduleprovides much flexibility and ease of integration for customer's application.
• The package of SIM7000E is compatible with SIM900 and SIM800F. AT commands of SIM7000E are mostly compatible with SIM800F. This also minmize the investments of customers, and enables a short time-tomarket.
• It is designed for applications that need low latency, medium throughput data communication in a variety of radio propagation conditions.
• Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, telematics, asset tracking, remote monitoring , E-health, mobile pos terminals and sharing bike.
Certifications
• CE
• RoHS
• REACH
Product advantages
• With Power Save Mode(PSM) and Extended Discontinuous Reception(eDRX), SIM7000E can extend battery life to 10 years;
• With Power Save Mode(PSM) and Extended Discontinuous Reception(eDRX), SIM7000E can extend battery life to 10 years;
• SIM7000E provides deeper coverage enhancement compared to GSM;
• The package and AT commands of SIM7000X mostly are compatible with SIM900 and SIM800F.
• The package and AT commands of SIM7000X mostly are compatible with SIM900 and SIM800F.
General Features
• Quad-Band LTE-FDD B3/B8/B20/B28
• GPRS/EDGE 900/1800Mhz
• Output power
- GSM900: 2W
- DCS1800: 1W
• GPRS/EDGE 900/1800Mhz
• Output power
- GSM900: 2W
- DCS1800: 1W
• Control Via AT Commands
• Supply voltage range:
3.0V~ 4.3V,Typ:3.8V
• Operation temperature:
-40℃ to +85℃
• Dimension: 24 x 24 x 2.6mm
• Weight: 3.0g
• GNSS (GPS,GLONASS,BeiDou and Galileo)
• Supply voltage range:
3.0V~ 4.3V,Typ:3.8V
• Operation temperature:
-40℃ to +85℃
• Dimension: 24 x 24 x 2.6mm
• Weight: 3.0g
• GNSS (GPS,GLONASS,BeiDou and Galileo)
Data
• LTE CAT-M1(eMTC)
- Uplink up to 375kbps,
Downlink up to 300kbps
• NB-IoT
- Uplink up to 66kbps,
Downlink up to 34kbps
• EDGE Class
- Uplink up to 236.8Kbps,
Downlink up to 236.8Kbps
• GPRS
- Uplink up to 85.6Kbps,
Downlink up to 85.6Kbps
Interfaces
• USB2.0 x1
(high-speed)
• UART x2
(7-wire UART and 2-wire UART interface multiplex from GPIO)
• SIM card x1
(1.8V and 3V)
• I2C x1
• GPIO x5
• ADC x1
• LTE CAT-M1(eMTC)
- Uplink up to 375kbps,
Downlink up to 300kbps
• NB-IoT
- Uplink up to 66kbps,
Downlink up to 34kbps
• EDGE Class
- Uplink up to 236.8Kbps,
Downlink up to 236.8Kbps
• GPRS
- Uplink up to 85.6Kbps,
Downlink up to 85.6Kbps
Interfaces
• USB2.0 x1
(high-speed)
• UART x2
(7-wire UART and 2-wire UART interface multiplex from GPIO)
• SIM card x1
(1.8V and 3V)
• I2C x1
• GPIO x5
• ADC x1
Other Features
• USB Driver for Microsoft Windows XP/Vista/7/8
• USB Driver for Windows CE/Mobile
• USB Driver for Linux/Android
• Firmware update via USB
• TCP/IP
• UDP
• PPP
• SMS
• EMAIL
• FTP/HTTP/SSL
• VoLTE
• FOTA
Specifications for SMS
• Point to point MO and MT
• Text and PDU mode
Consumption
• Power off: 7uA
• PSM: 9uA
• Sleep: 1mA
• Idle: 11mA
• USB Driver for Microsoft Windows XP/Vista/7/8
• USB Driver for Windows CE/Mobile
• USB Driver for Linux/Android
• Firmware update via USB
• TCP/IP
• UDP
• PPP
• SMS
• FTP/HTTP/SSL
• VoLTE
• FOTA
Specifications for SMS
• Point to point MO and MT
• Text and PDU mode
Consumption
• Power off: 7uA
• PSM: 9uA
• Sleep: 1mA
• Idle: 11mA
Certifications
• CE
• RoHS
• REACH
Why Choose Us
FAQ
Q1. What is the minimum order quantity for your products?
A1. Minimum order quantity starts from ONE piece.
Q2. What's the quality of your products?
A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.
Q3. Is this product free of shipping or free samples?
A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
