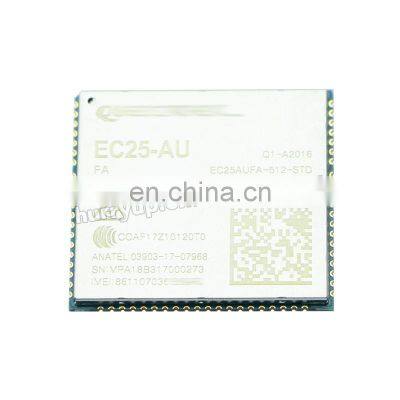

EC25 4G Module LTE Cat 4 EC25-AU EC25AUFA EC25AUFA-512-STD
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
EG25-G Mini PCIe 4G LTE GPS Module Cat.4 With Simcard Holder GPS 4G Module EG25
-
EC25-J 4G LTE Module for Jpapan, EC25 EC25JFA-512-STD
-
EC25 4G Module LTE Module 4G IoT Module LTE Cat.4 EC25-A EC25-E
-
EC25-EU Mini PCIe for EMEA/Thailand, EC25 4G/LTE Module Wireless Network Card
-
EC25-A 4G LTE Module LTE Cat.4 EC25 EC25AFA-512-STD
-
EC25-EUX Mini PCIe Wireless Module for EMEA/Thailand, EC25 Network Module
Product Description
Description
Overview
EC25 is a series of LTE Cat 4 module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel. 11 LTE technology, it delivers maximum data rates up to 150Mbps downlink and 50Mbps uplink. Designed in the compact and unified form factor, EC25 is compatible with multi-mode LTE Standard EC21/EC20 R2.0/EC20 R2.1/EG25-G/EG21-G modules and UMTS/HSPA+ UC20/UC200T module, which allows for flexible migration among them in design and manufacturing.
EC25 contains 13 variants: EC25-E, EC25-EU, EC25-EUX, EC25-J, EC25-A, EC25-V, EC25-AF, EC25-AFX, EC25-MX, EC25-AUT, EC25-AUTL, EC25-AU and EC25-AUX. This makes it backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can be connected even in remote areas devoid of 4G or 3G coverage.
https://www.hurryup.en.china.cn
EC25 supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning.
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows 7/8/8.1/10, Linux, Android/eCall*) extend the applicability of the module to a wide range of M2M and IoT applications such as industrial router, industrial PDA, rugged tablet PC, video surveillance, and digital signage.
www.hurryup.en.china.cn
Key Benefits
● LTE Cat 4 module optimized for M2M and IoT applications
● Worldwide LTE, UMTS/HSPA(+) and GSM/GPRS/EDGE coverage
● Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
● Feature refinements: supports DFOTA*, eCall* and DTMF
● MIMO technology meets demands for data rate and link reliability in modem wireless communication systems
EC25-AU
LTE-FDD: B1/B2①/B3/B4/B5/ B7/B8/B28
LTE-TDD: B40
WCDMA: B1/B2/B5/B8
GSM/EDGE: Quad-band
Embedded GNSS: Optional
Wi-Fi/BT Interface: Y
Region: Latin America/Australia/New Zealand
Carrier:
Telstra*
Regulatory:
GCF/ FCC/ Anatel/ NCC/ RCM
Others:
WHQL
EC25-E
LTE-FDD: B1/B3/B5/B7/B8/B20
LTE-TDD: B38/B40/B41
WCDMA: B1/B5/B8
GSM/EDGE: B3/B8
Embedded GNSS: Optional
Wi-Fi/BT Interface: Y
Region: EMEA/South Korea/Thailand/India
Carrier:
Vodafone/ Deutsche Telekom/ SKT/ Telefónica / KT*/ LGU+*
Regulatory:
GCF/ CE/ KC/ NCC/ RCM/ FAC/ NBTC/ ICASA
Others:
WHQL
Vodafone/ Deutsche Telekom/ SKT/ Telefónica / KT*/ LGU+*
Regulatory:
GCF/ CE/ KC/ NCC/ RCM/ FAC/ NBTC/ ICASA
Others:
WHQL
EC25-EU
LTE-FDD: B1/B3/B5/B7/B8/B20
LTE-TDD: B38/B40/B41
WCDMA: B1/B8
GSM/EDGE: GSM/EDGE
Embedded GNSS: Optional
Wi-Fi/BT Interface: Y
Region: EMEA/Thailand
Carrier:
Deutsche Telekom/ British Telecom
Regulatory:
GCF/ CE/ RCM/ NCC
Others:
WHQL
Deutsche Telekom/ British Telecom
Regulatory:
GCF/ CE/ RCM/ NCC
Others:
WHQL
EC25-EUX
LTE-FDD: B1/B3/B7/B8/B20/B28A
LTE-TDD: B38/B40/B41
WCDMA: B1/B8
GSM/EDGE: B3/B8
Embedded GNSS: Optional
Wi-Fi/BT Interface: N
Region: EMEA/Thailand
Regulatory:
GCF/ CE/ NCC/ RCM
Others:
WHQL
GCF/ CE/ NCC/ RCM
Others:
WHQL
EC25-J
LTE-FDD: B1/B3/B8/B18/B19/B26
LTE-TDD: B41
WCDMA: B1/B6/B8/B19
GSM/EDGE: /
Embedded GNSS: Optional
Wi-Fi/BT Interface: Y
Region: Japan
Carrier:
NTT DOCOMO/ SoftBank/ KDDI
Regulatory:
JATE/ TELEC
Others:
WHQL
NTT DOCOMO/ SoftBank/ KDDI
Regulatory:
JATE/ TELEC
Others:
WHQL
EC25-A
LTE-FDD: B1/B3/B8/B18/B19/B26
LTE-TDD: /
WCDMA: B2/B4/B5
GSM/EDGE: /
Embedded GNSS: Optional
Wi-Fi/BT Interface: Y
Region: North America
Carrier:
AT&T/
T-Mobile/ Rogers/ Telus
Regulatory:
FCC/ IC/ PTCRB
Others:
WHQL
AT&T/
T-Mobile/ Rogers/ Telus
Regulatory:
FCC/ IC/ PTCRB
Others:
WHQL
EC25-V
LTE-FDD: B4/B13
LTE-TDD: /
WCDMA: /
GSM/EDGE: /
Embedded GNSS: Optional
Wi-Fi/BT Interface: Y
Region: Verizon
Carrier:
Verizon
Regulatory:
GCF/ FCC
Others:
WHQL
Verizon
Regulatory:
GCF/ FCC
Others:
WHQL
www.hurryup.en.china.cn
EC25-AF
LTE-FDD: B2/B4/B5/B12/B13/B14/B66/B71
LTE-TDD: /
WCDMA: B2/B4/B5
GSM/EDGE: /
Embedded GNSS: Optional
Wi-Fi/BT Interface: Y
Region: North America FirstNet
Carrier:
Verizon/ AT&T/ T-Mobile/ Rogers/ U.S. Cellular/ Telus/ Bell*
Regulatory:
GCF/ FCC/ IC/ PTCRB
Others:
WHQL
Verizon/ AT&T/ T-Mobile/ Rogers/ U.S. Cellular/ Telus/ Bell*
Regulatory:
GCF/ FCC/ IC/ PTCRB
Others:
WHQL
EC25-AFX
LTE-FDD: B2/B4/B5/B12/B13/B14/B66/B71
LTE-TDD: /
WCDMA: B2/B4/B5
GSM/EDGE: /
Embedded GNSS: Optional
Wi-Fi/BT Interface: N
Region: North America FirstNet
Carrier:
Verizon*/ AT&T*/
T-Mobile*/
U.S. Cellular*
Regulatory:
GCF/ FCC/ PTCRB/ IC
Others:
WHQL
Verizon*/ AT&T*/
T-Mobile*/
U.S. Cellular*
Regulatory:
GCF/ FCC/ PTCRB/ IC
Others:
WHQL
EC25-MX①
LTE-FDD: B2/B4/B5/ B7/B28/B66
LTE-TDD: /
WCDMA: B2/B4/B5
GSM/EDGE: /
Embedded GNSS: N
Wi-Fi/BT Interface: N
Region: Mexico
Regulatory:
FCC/ PTCRB/ IFETEL
Others:
WHQL
FCC/ PTCRB/ IFETEL
Others:
WHQL
EC25-AUT
LTE-FDD: B1/B3/B5/ B7/B28
LTE-TDD: /
WCDMA: B1/B5
GSM/EDGE: /
Embedded GNSS: Optional
Wi-Fi/BT Interface: Y
Region: Australia
Regulatory:
RCM
Others:
WHQL
RCM
Others:
WHQL
EC25-AUTL
LTE-FDD: B3/B7/B28
LTE-TDD: /
WCDMA: /
GSM/EDGE: /
Embedded GNSS: /
Wi-Fi/BT Interface: Y
Region: Australia
Regulatory:
RCM
Others:
WHQL
RCM
Others:
WHQL
EC25-AUX
LTE-FDD: B1/B2①/B3/B4/B5/B7/B8/B28
LTE-TDD: B40
WCDMA: B1/B2/B5/B8/B4
GSM/EDGE: Quad-band
Embedded GNSS: Optional
Wi-Fi/BT Interface: Y
Region: Latin America/Australia/New Zealand
Regulatory:
CE/ NCC/ Anatel/ RCM
Others:
WHQL
CE/ NCC/ Anatel/ RCM
Others:
WHQL
Notes:
① LTE-FDD B2 of EC25-AU and EC25-AUX does not support Rx-diversity.
* Under development
① LTE-FDD B2 of EC25-AU and EC25-AUX does not support Rx-diversity.
* Under development
