Meig SLM750 4G LTE Module, Also Support 3G 2G GSM Networks

Meig SLM750 4G LTE Module, Also Support 3G 2G GSM Networks thumbnail-1
Meig SLM750 4G LTE Module, Also Support 3G 2G GSM Networks thumbnail-2
Meig SLM750 4G LTE Module, Also Support 3G 2G GSM Networks thumbnail-3
Meig SLM750 4G LTE Module, Also Support 3G 2G GSM Networks photo-1

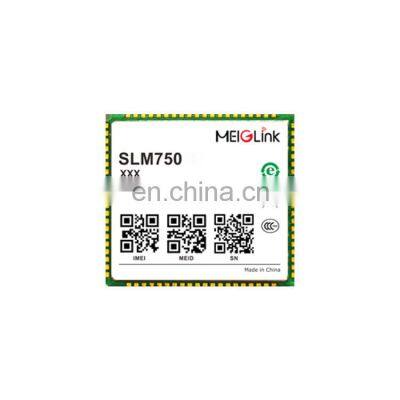

Meig SLM750 4G LTE Module, Also Support 3G 2G GSM Networks photo-2

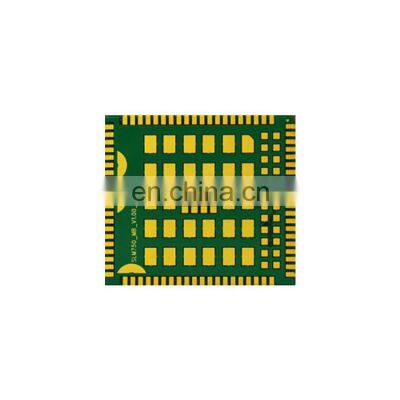

Meig SLM750 4G LTE Module, Also Support 3G 2G GSM Networks photo-3
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Contact Supplier Request Quote Chat Now
Shenzhen Hurryup Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Description
Product Description
● MeiG Smart SLM750 series of M2M modules are designed to provide customers with wireless communication service. It covers three operators’ networks domestically and the main operators’ networks globally. It delivers maximum 150Mbps-DL and 50Mbps-UL data rates on LTE networks, and has backward compatibility with 3G and 2G networks to ensure network communication can work in remote areas.

● Rx diversity and MIMO technology are provided to improve communication quality and optimize data transmission rate; high-sensitivity GNSS function is also provided.

● A rich set of protocols (TCP/FTP/HTTP) and multiple OS compatibility extend the applicability of the module to a wide range of M2M applications.

Main advantages
● Cover LTE-FDD / LTE-TDD / WCDMA / TD-SCDMA / EDGE / GPRS / GSM / EVDO & CDMA 1x network
● Qualcomm® IZat ™ Gen 8C engine, supporting GPS / GLONASS / BeiDou
●Support multiple voice coding (HR / FR / EFR / AMR / AMR-WB), support SRLTE / CSFB / VOLTE (optional)
● Support high-speed USB2.0 interface
● Support radio frequency MIMO and receive diversity technology to improve communication quality and optimize data transmission speed
Basic Attributes:
Product number:
SLM750 module
Package:
LCC package (80pin + LGA 64pin)
Size(mm)：
32.0×29.0×2.4mm
Weight:
< 5g
Module Rate:
LTE-FDD (Cat 4)：
Max 150Mbps(DL)/50Mbps(UL)
LTE-TDD (Cat 4)：
Max 130Mbps(DL)/35Mbps(UL)
LTE (Cat 1)：
Max 10Mbps(DL)/5Mbps(UL)
DC-HSPA+：
Max 42Mbps(DL)/5.76Mbps(UL)
TD-SCDMA：
Max 4.2Mbps(DL)/2.2Mbps(UL)
WCDMA：
Max 384kbps(DL)/384kbps(UL)
EDGE：
Max 236.8kbps(DL)/236.8kbps(UL)
GPRS：
Max 85.6kbps(DL)/85.6kbps(UL)
EVDO RevA：
Max 3.1Mbps(DL)/1.8Mbps(UL)
CDMA1x：
Max 153.6kbps(DL)/153.6kbps(UL)
Drivers & Tools:
Drivers：
Windows XP, Windows Vista,Windows 7, Windows 8, Windows 8.1,Windows 10, Linux, Android
Tools：
One-click upgrade tool, Gobinet dialing tool
* FOTA upgrade (under development)
Module Interface:
Hi-Speed USB 2.0
UART×2
SIM card interface(1.8 / 3.0V)
Antenna interface: main / diversity / GNSS antenna (optional)
I2C×1
WAKEUP-IN & WAKEUP-OUT
Power On/Off, Reset
ADC×2
Fly Mode
LED indicator
PCM×1
WLAN interface × 1
SD interface ×1
SGMII×1
Certification Information:
CCC/SRRC/CTA/CE/FCC/ROHS
Transmit power:
GSM850/900 33±2dBm,GSM1800/1900 30±2dBm,CDMA/EVDO 23~30dBm,WCDMA/HSPA 23+1/-3dBm,TD-SCDMA 23+1/-3dBm,LTE-TDD 23±2.7dBm,LTE-FDD
23±2.7dBm
Protocols:
TCP/UDP/HTTP(S*)/SSL*/FTP/PPP/PING/DTMF/ QMI(*in development)
Environmental Temperature:
Working temperature:
-40℃ to 85℃
Storage temperature:
-45℃ to 90℃
Humidity:
5%~95%
SLM750 series frequency band information:
SLM750-C7A
Frequency band:
LTE-FDD: B1/B3/B5/B8/(B28)
LTE-TDD: B38/B39/B40/B41
WCDMA: B1/B8
TD-SCDMA: B34/B39
CDMA&EVDO: BC0 GSM: 900/1800
Diversity reception:
support
GNSS：
support
PCM / Analog voice:
Support / optional
SLM750-C7B
Frequency band:
LTE-FDD: B1/B3/B5/B8/(B28)
LTE-TDD: B38/B39/B40/B41
WCDMA: B1/B8 TD-SCDMA: B34/B39
CDMA&EVDO: BC0 GSM: 900/1800
Diversity reception:
support
GNSS：
not support
PCM / Analog voice:
Support / optional
SLM750-C7C
Frequency band:
LTE-FDD: B1/B3/B5/B8/(B28)
LTE-TDD: B38/B39/B40/B41
WCDMA: B1/B8 TD-SCDMA: B34/B39
CDMA&EVDO: BC0 GSM: 900/1800
Diversity reception:
not support
GNSS：
not support
PCM / Analog voice:
Support / optional
SLM750-C1A（Support LTE Cat 1）
Frequency band：
LTE-FDD: B1/B3/B5/B8 LTE-TDD: B41
Diversity reception ：
optional
GNSS：
optional
PCM / Analog voice:
not support
SLM750-TE
Frequency band ：
LTE-FDD: B1/B3/B5/B7/B8/B20
LTE-TDD: B40
WCDMA: B1/B5/B8
GSM: 850/900/1800/1900
Diversity reception ：
support
GNSS：
optional
PCM / Analog voice:
Support / optional
SLM750-TAU
Frequency band ：
LTE-FDD: B1/B3/B5/B7/B8/B28
LTE-TDD: B40
WCDMA: B1/B5/B8
GSM: 850/900/1800/1900
Diversity reception ：
support
GNSS：
optional
PCM / Analog voice:
Support / optional
SLM750-TA
Frequency band ：
LTE-FDD:B2/B4/B5/B12/B13/B17/B25/B26
LTE-TDD:B41
WCDMA:B2/B4/B5
CDMA&EVDO:BC0/BC1
GSM:850/1900
Diversity reception ：
support
GNSS：
optional
PCM / Analog voice:
Support / optional
SLM750-TSA
Frequency band ：
LTE-FDD:B2/B4/B5/B7/B8/B28
LTE-TDD:B40
WCDMA:B2/B5/B8
GSM:850/900/1800/1900
Diversity reception ：
support
GNSS：
not support
PCM / Analog voice:
not support
