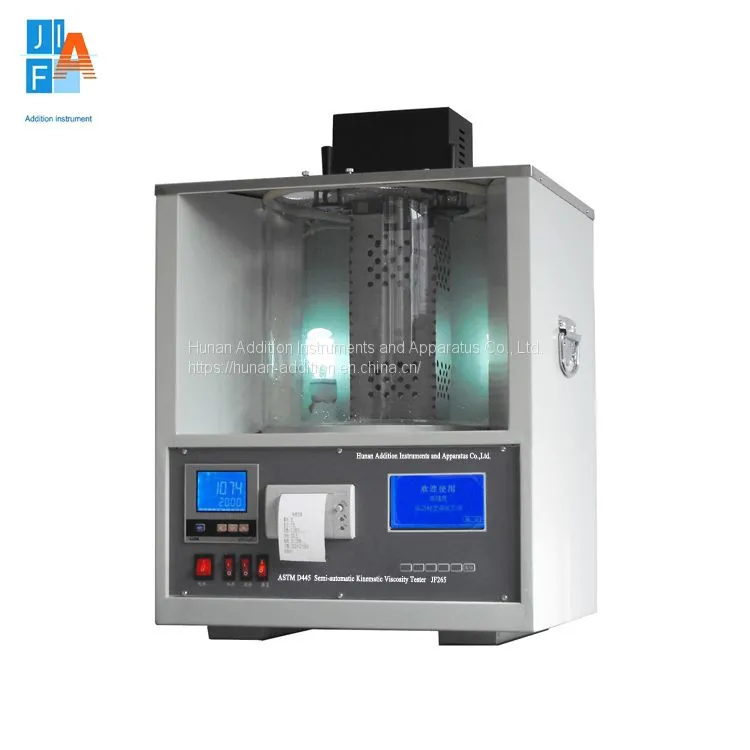

Petroleum Products Kinematic Viscosity Tester
Product Model: JF265 (Conventional Manual)
Product Introduction
This instrument is suitable for measuring the viscosity of petroleum products. The mechanism of the instrument: measure the time that a certain volume of liquid flows through a calibrated glass capillary viscometer under gravity at a constant temperature, the product of the capillary constant of the viscometer and the flow time is the kinematic viscosity of the liquid at this temperature.
Technical Parameter
1. Applicable standards: ASTM D445, ISO3104, DIN51366
2. Temperature control method: PID digital temperature controller
3. Temperature control accuracy: ±0.1℃
4. Temperature control range: room temperature～100℃
4. Heating method: electric heating tube heating
5. Power of the whole machine: 2KW
6. Working unit: 4 pipes, equipped with sliding hammer
7. Working power supply: AC220,240V/50,60Hz
8. Instrument size: 360*360*520mm
9. Net weight: 20KG
Features
1. 360° transparent structure, easy to observe;
2. All-aluminum operating table, the surface is treated by oxidation drawing;
3. The sputtering turbine liquid circulator improves the temperature uniformity of the upper, middle
and lower parts of the bathtub;
4. Four samples can be tested at the same time, which is convenient for parallel samples;
5. High-power solid-state relay control output, no voltage leakage;
6. There is a stirrer on the electronic heating bath;
7. Stainless steel heater;
8. The thermostat displays the heating state;
9. Safety protection device to prevent overheating and low water level;
10. Imported Omron PID thermostat, digital display temperature, degree 0.1℃
