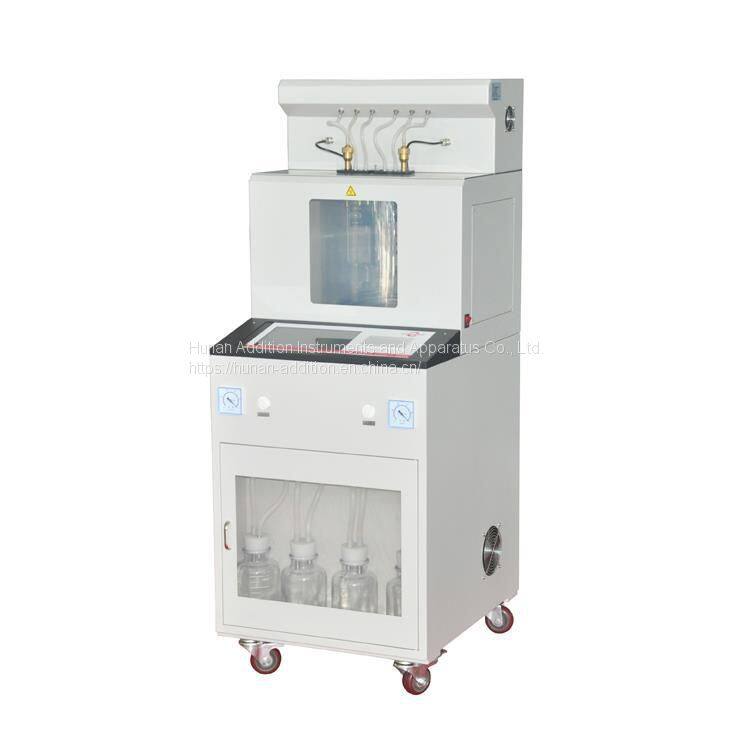

ASTM D445 Automatic Kinematic Viscosity Tester

Automatic Kinematic Viscosity Tester

Product Model: JF265Z1 (Fully automatic upgrade)

Product Introduction

This instrument adopts microprocessor control technology and is designed and manufactured with color liquid crystal display. This instrument is a test equipment for measuring the kinematic viscosity (mm2/s) of liquid petroleum products (referring to Newtonian liquids) and dilute polymer solutions. It can also be used to calibrate the coefficient of the capillary tube according to the actual test conditions by using standard substances. , it can be widely used in pharmacopoeia, petroleum, chemical, scientific research, measurement and other departments.

The instrument uses a microcomputer as the central control component, touch screen operation mode, English menu prompts for operation, convenient and flexible operation of the instrument, and has certain fault identification, error information output and fault handling capabilities.

Technical Information

1. Applicable standard: ASTM D445

2. measurement accuracy: in line with D445

3. Temperature control range: room temperature～110℃, adjustable

4. Temperature control accuracy: ±0.05℃, resolution 0.001℃

5. Work unit: 2 units

6. Timing accuracy: ±0.01S

7. temperature sensor: PT1000 probe, built-in automatic temperature correction system

8. Heating method: outlet heater

9. Liquid level detection: far infrared photoelectric detection

10. display: 10-inch color touch screen

11. Data storage: 100 sets of test results

12. Working power supply: AC (220,240V) V, 50,60Hz

13. Power of the whole machine: 2000w

14. the size of the instrument: 550*600*1350mm

15. weight: 65KG

Features

1. It adopts a 10-inch color high-definition LCD touch screen and a full English operation interface, which is easy to operate.

2, 100 sets of test data can be stored, inquired and printed at any time. With embedded thermal printer, printing is fast.

3. Imported PT1000 platinum resistance temperature sensor is used to measure the temperature accurately, so that the display resolution can reach 0.001℃, and the temperature is controlled.

Degree ±0.05℃.

4. Powerful software data processing system with viscometer calibration program and viscosity index calculator attached.

5. Imported optical fiber detection, no indoor light or light interference;

6. Asynchronous determination of two samples can be performed at the same time, and the processes of constant temperature, detection, calculation, printing, cleaning, and drying can be completed automatically

7. This instrument has certain fault identification, error information output and fault processing capabilities, which is convenient for users to analyze and judge the status of the instrument, and quickly deal with the fault of the instrument.

8. The testing process fully meets industry standards and the data is reliable;
