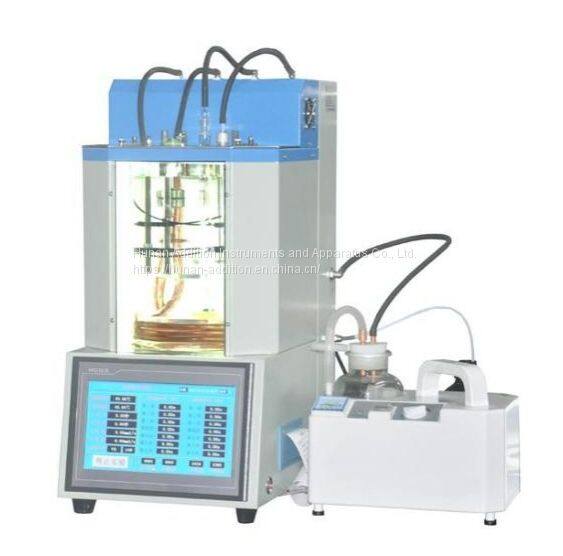

ASTM D445 Automatic Kinematic Viscometer

Automatic Kinematic Viscometer

Product Model: JF265Z (Conventional Automatic)

Product introduction

This instrument is designed and produced in accordance with industry standards. The instrument adopts a modular design, the detection part adopts advanced sensors and high-precision AD conversion circuits, and the main control part adopts a number of industrial applications, high reliability 16-bit RISC structure, ultra-low power consumption microprocessor, good and reliable. Communication will form a unified and reliable measurement and control platform of each module. The program adopts the high-quality and simplest modular program design, and is organically combined with the hardware, so that the automatic heating and constant temperature, liquid level detection, timing, cleaning of the viscosity tube, printing, etc. in the kinematic viscosity measurement process are fully automatic. Achieved the operation mode of one-click results.

The instrument presets 4 sets of measurement parameters for selection when testing different samples, which is convenient for detection operations. At the same time, the preset parameters are modifiable to meet the requirements of measuring special samples.

Technical Parameter

1. Applicable standard: ASTM D445  GB/T 265

2. Measurement accuracy: in line with ASTM D445

3. Temperature control range: Rt ~ 100 ℃, adjustable

4. Temperature control accuracy: ±0.01℃

5. Working unit: 2 units

6. Timing accuracy: ±0.01s

7. Temperature sensor: high-quality PT1000 probe, built-in temperature automatic correction system

8. Heating method: outlet heater

9. Liquid level detection: far infrared photoelectric detection

10. Display: 10-inch color touch screen

11. Data storage: 100 sets of test results

12. Working power supply: AC (220,240V) V, 50,60Hz

13. Power of the whole machine: 1500w

14. Instrument size: 350*430*800mm

15. Weight: 43KG

Features

1. Using PLC control, high stability and reliability;

2. Only one key is needed to complete all automatically, automatic sample injection, timing, calculation, cleaning, drying, and printing results;

3. Good man-machine interface, easy to operate;

4. 16 groups of preset parameters can be called at any time;

5. Optical fiber detection, no indoor light and light interference;

6. The optical fiber detection position can be adjusted and flexible;

7. It can detect oil samples of various colors, and the "flexibility" can be adjusted arbitrarily by customers;

8. 100 test results can be automatically stored, and can be viewed and printed at any time;

The testing process fully complies with the national standards and the data is reliable;
