Plastic Film Foam Rubber Paper Slitting Rewinding Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2000
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PP PE PC PET PVC Plastic Film Foam Paper Label Sticker Roll to Roll Slitting and Rewinding Machine With Laminating FunctionNegotiableMOQ: 1 -
Plastic Film Paper Laminating and Slitting Rewinding MachineNegotiableMOQ: 1
-
Label Paper Foam PET PVC PC PE Plastic Film Roll Slitting Rewinding MachineNegotiableMOQ: 1
-
PP PVC PET PE Plastic Film Label Paper Foam Fabric Roll Slitting Rewinding MachineNegotiableMOQ: 1
-
PP/PVC/PET/PE Plastic Film/Label/Foam/ Roll Paper Slitting Rewinding Machine/Slitter RewinderNegotiableMOQ: 1
Product Overview

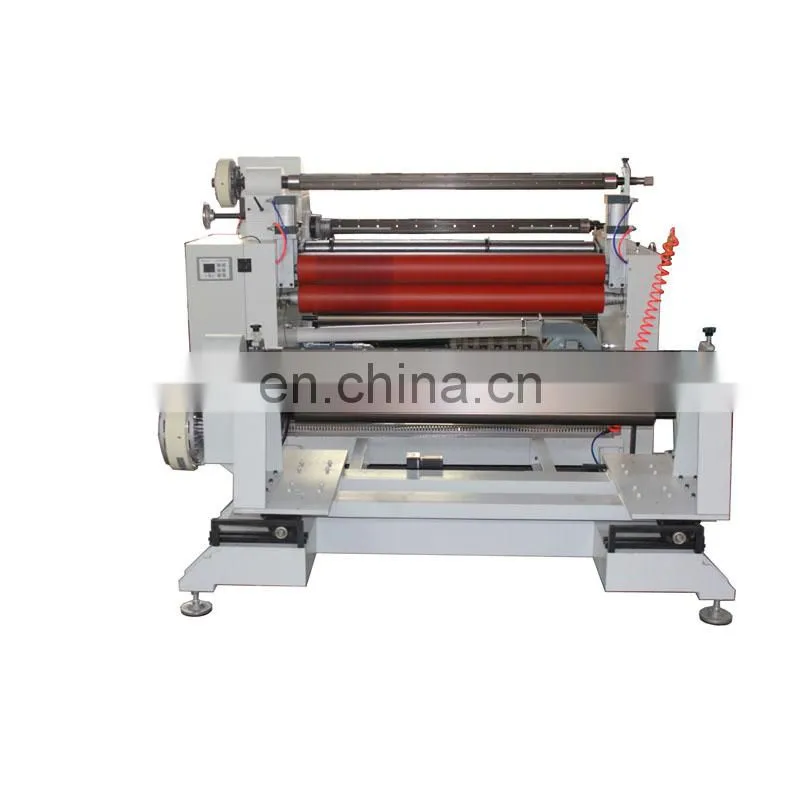

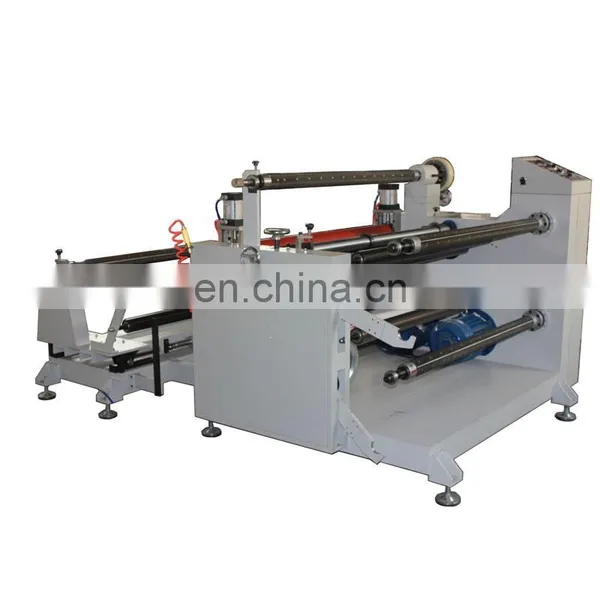

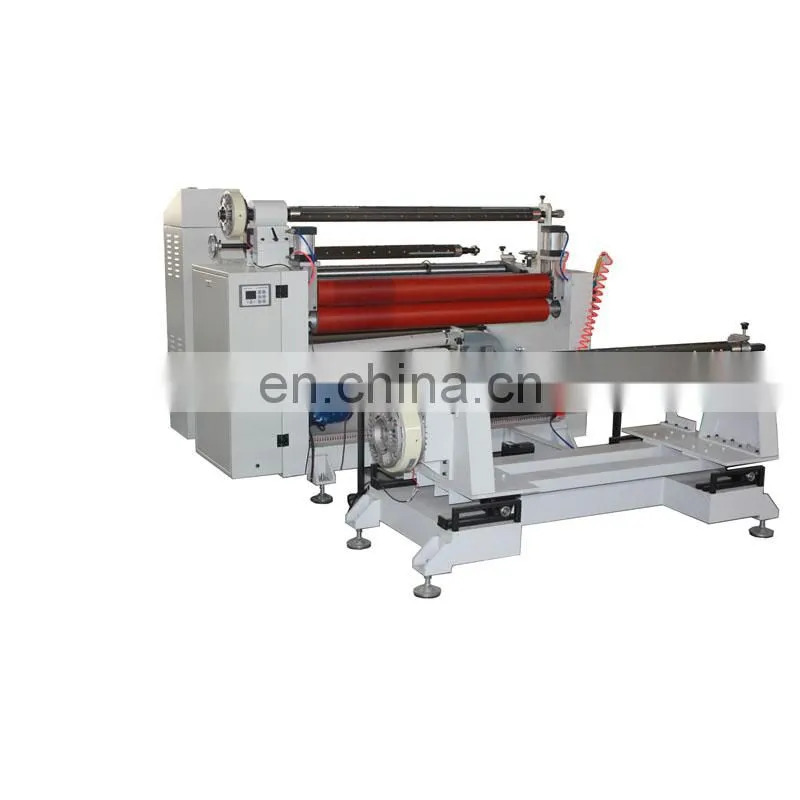

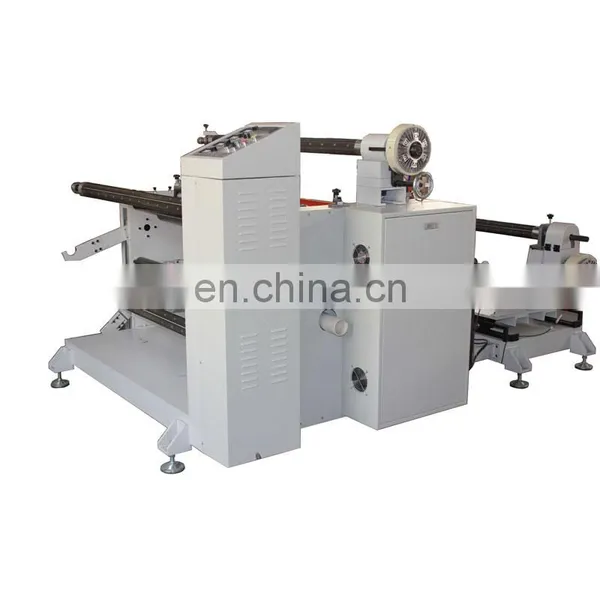

Plastic film foam rubber paper slitting rewinding machine
This machine can slit flexible materials,such as plastic,paper,foam,film.label,sticker.etc.
With EPC system, and the magnetic powder controls the unwinding and rewinding tension.
Main machine with frequency conversion speed.
The slitting width can be adjusted as requested.
Precise slitting,fast slitting speed,easy operation and maintenance.
PRODUCT SPECIFICATIONS
Model |
DP-650 |
DP-1300 |
DP-1600 |
Max Feeding Width |
650mm |
1300mm |
1600mm |
Power |
2.2KW |
6KW |
6KW |
Slitting Speed |
80m/min |
80m/min |
80m/min |
Max. Unwinding Diameter |
600mm |
600mm |
800mm |
Max. Rewinding Diameter |
450mm |
450mm |
450mm |
Slitting Precision |
± 0.1mm |
± 0.1mm |
± 0.1mm |
Minimum slitting width |
25mm |
25mm |
25mm |
Voltage |
380V 50HZ |
380V 50HZ |
380V 50HZ |
FEATURES AT A GLANCE

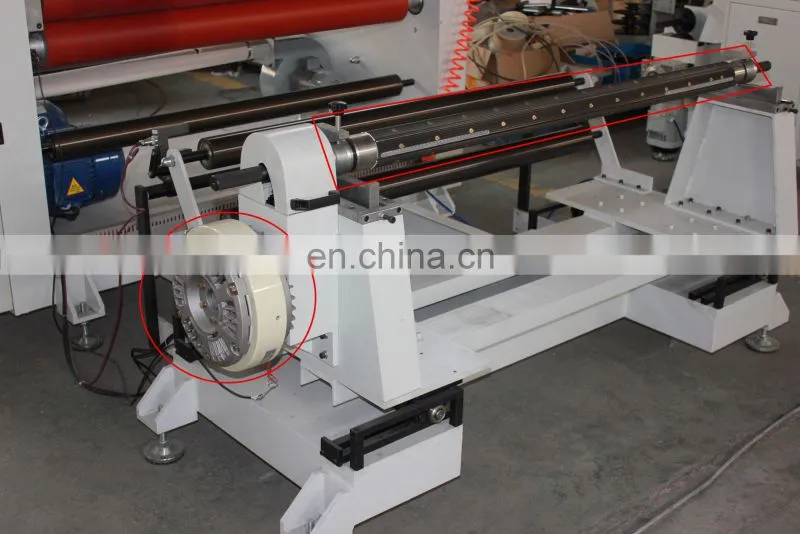

1pcs 3inch inflatable unwind shaft.
Magnetic powder brake 100N controls the unwinding tension.

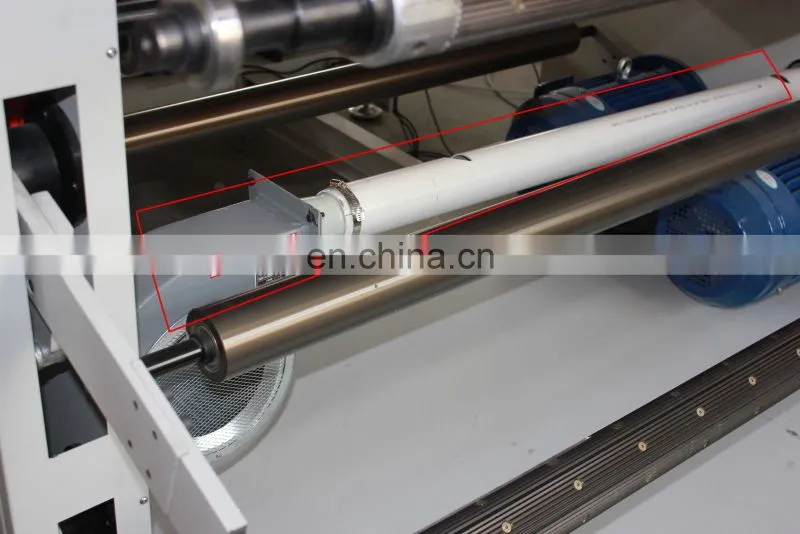

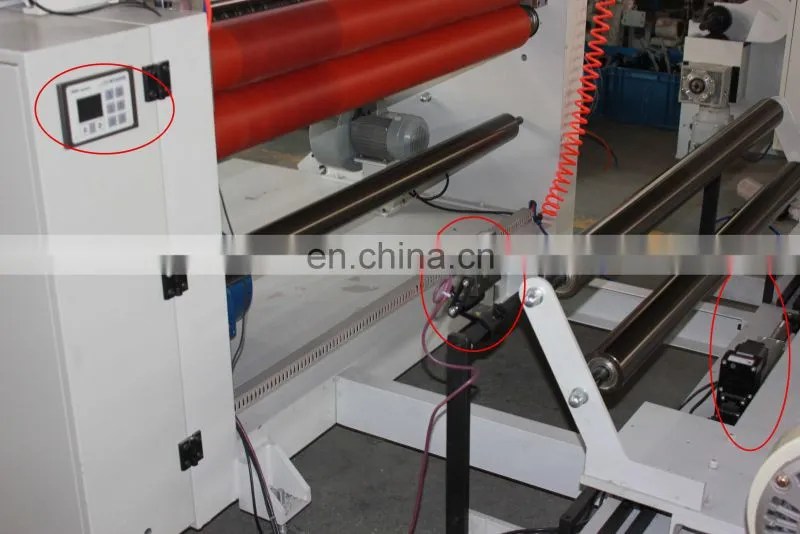

EPC Web Guiding Controller System to keep the material in line.

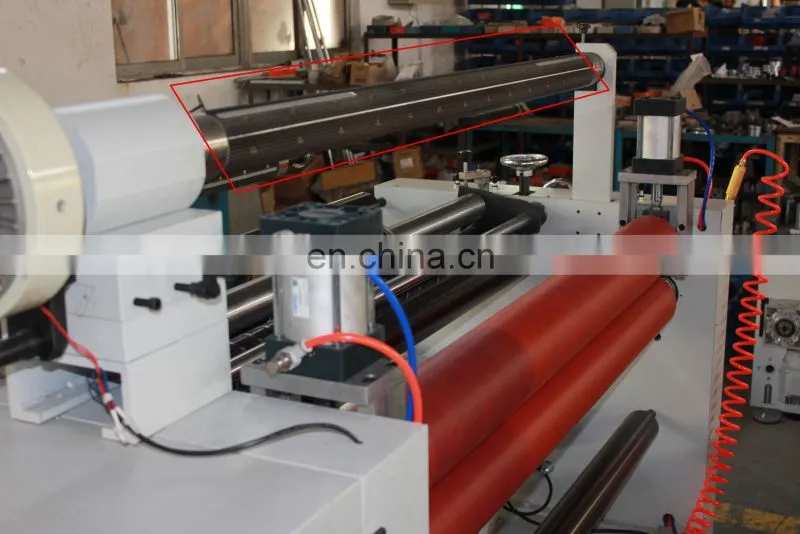

Up 3inch inflatable unwind shaft for laminating function.
Magnetic powder brake 50N controls the unwinding tension.

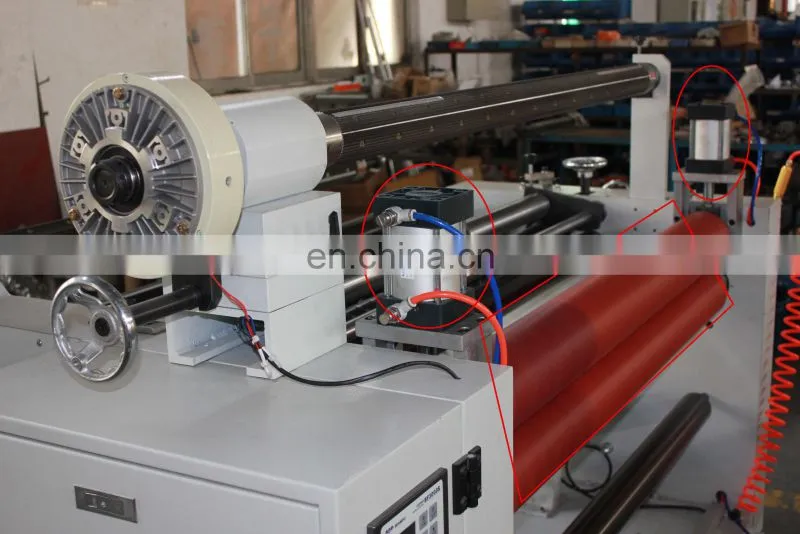

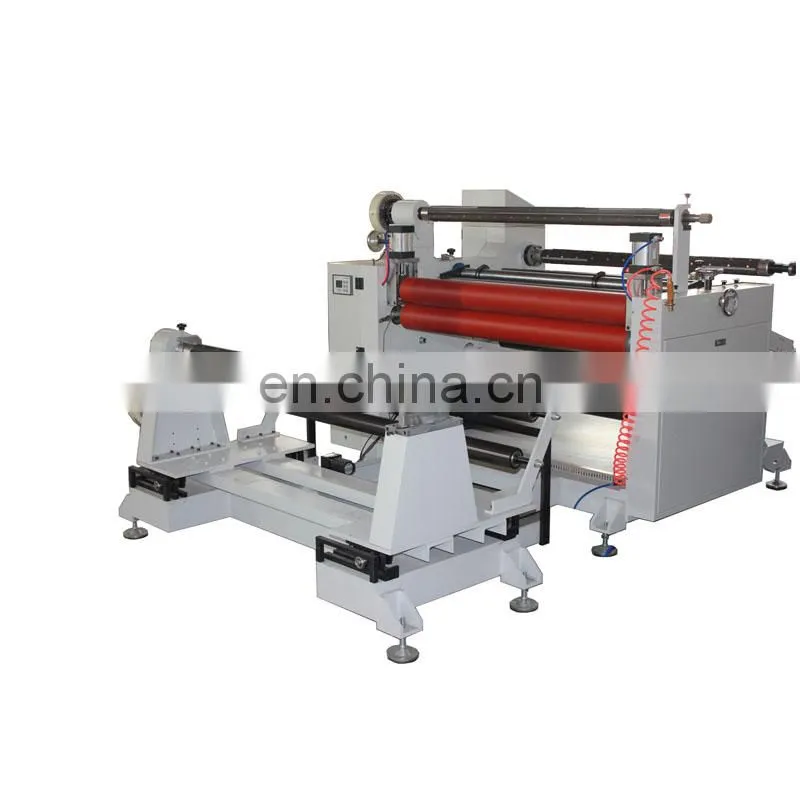

Laminating and pulling roller:
Upper and under PU rubber roller with Diameter 135mm.
2 cylinders adjust the rubber roller up and down.
Aluminum guide roller with hard anode oxidation.

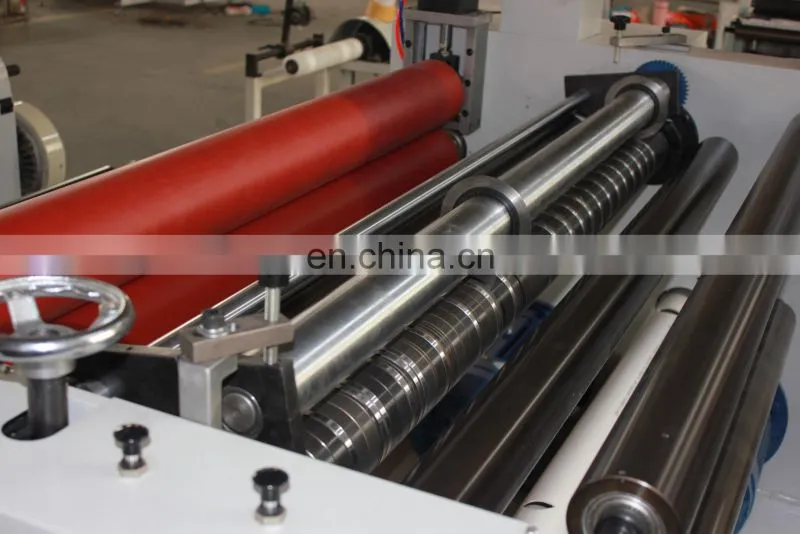

Upper 65mm knife shaft with slitter Dia.110*75*1
Under 65mm knife shaft with slitter Dia.90*65*10
Manual fine-tuning lock device.
8 rotary slitting blade can be adjustable,the minimum slitting width is 25mm.
Air blower for trimming.
2pcs 3inch inflatable rewind shaft.
Magnetic powder clutch 50N control the rewinding tension.
Double main motor.
2 pneumatic arms to hold the rewinding shaft.

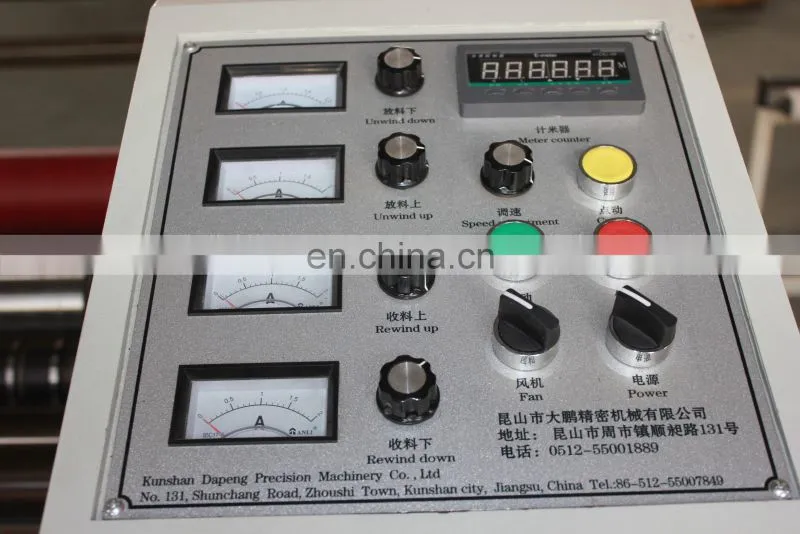

The slitting speed and the tension can be set on this control panel.
With meter counter.
Click below picture to check our 650mm machine:
