Product Description
Product Description

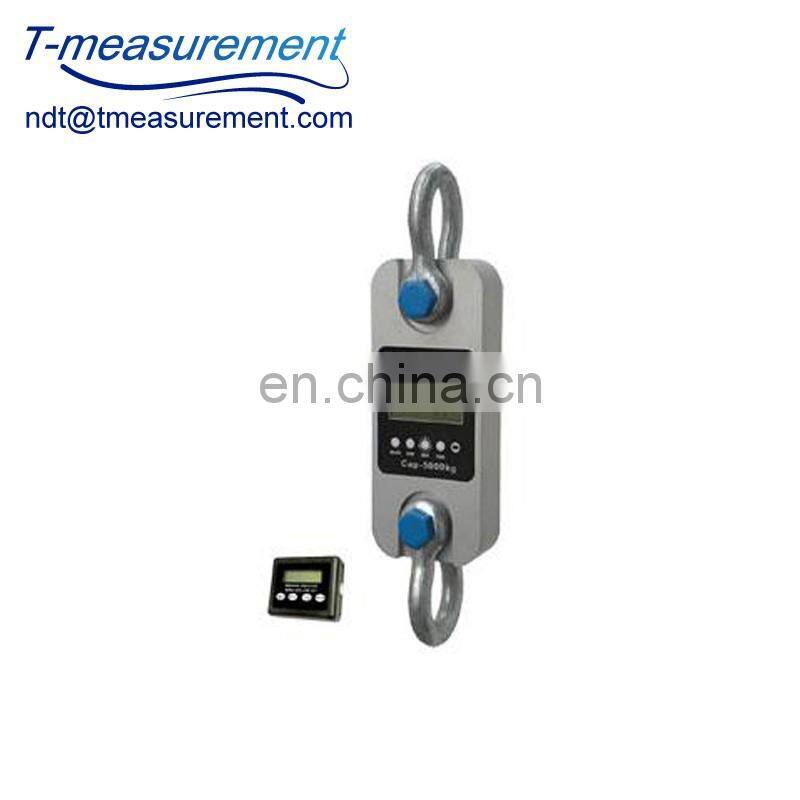

50 Ton digital crane scale wireless dynamometer with shackles
TEM-W1 wireless dynamometer is an extremely well-built instrument for industry us ,as a standard wireless tool offer universal applications, the indicator 180 have USB port, Communicate with PC, Solve many laptops without serial port problem. TEM-W1 wireless dynamometer is microprocessor controlled for high precision accuracy, calibration is easier with Palm size 180 indicator.
50 Ton digital crane scale wireless dynamometer with shackles

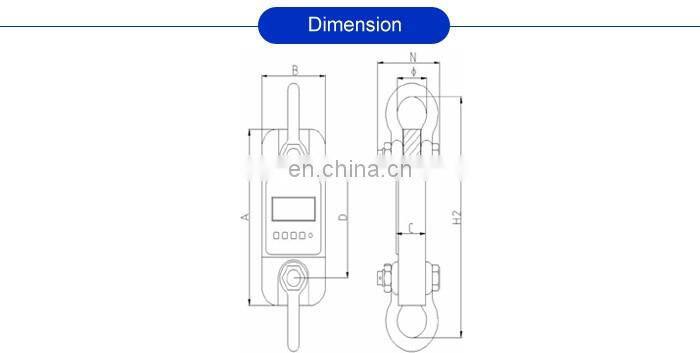

Dimensions

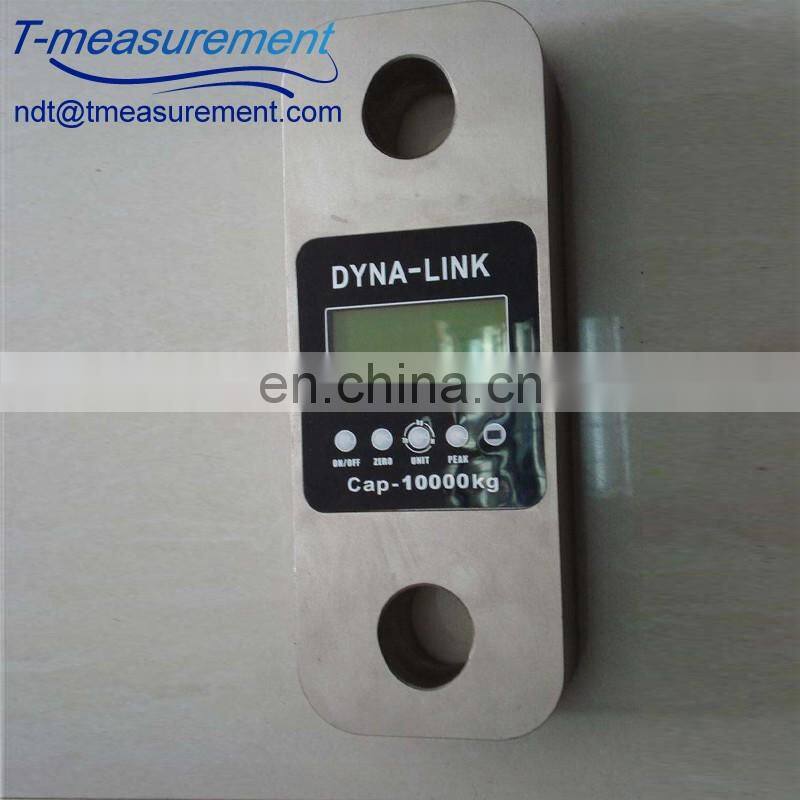

Detailed Images
Features of Quality Guaranteed accuracy Dynamometer Wireless Crane Load Cell Scale
Body protection: Aluminum and alloy steel capacities are powder coated.
Accuracy: 0.05% for 1-50t, 0.1% for above 50t capacity.
Units: Units are clearly display on the screen, available in the following measurement reading: kilograms(kg), short Tons(t) pounds(lb), Newton and kilonewton(kN)
Shackles: High tension industrial standard G2130 anchor shackle bows, galvanized finish.
Gravity regulation: The acceleration of gravity can be regulated through indicator according to different places value.
Functions: wireless indicator with many functions: Zero, tar, Low battery warnings, peak hold, overload warning. User calibration(with password).
Set-Point: Two user programmable Set-Point can b used for safety and warning applications or for limit weighing.
Package: Packed with carry case, easy to bring.
Indicator key: 4 local mechanical keys: ”ON/OFF”,”ZERO”,”PEAK” and ”Unit Change”.
Specifications
Main technical data of DL-W1 wireless dynamometer
Body Display | 25mm (1’’) 5digits LCD with backlight | Ultimate Load | 400% F.S. |
Indicator Display | 25mm (1’’) 5digits LCD with backlight | Battery Life | ≥50 hours |
Power on zero range | 20% F.S. | Ultimate Load | 400% F.S. |
Manual Zero Range | 4% F.S. | Body Battery | “LR6(AA)”size alkaline batteries. 1.5Vⅹ3 |
Tare Range | 20% F.S. | Indicator Battery | “LR6(AA)”size alkaline batteries. 1.5Vⅹ4 |
Stable Time | ≤5 seconds | Operating Temp. | - 20℃ ~ + 50℃ |
Overload Indication | 100% F.S. + 9e | Operating Humidity | ≤85% RH under 20℃ |
Max. Safety Load | 125% F.S. | Wireless Distance | Min. 80m(default) [200m(optional)] |
50 Ton digital crane scale wireless dynamometer with shackles
Weights
Model | DL-W1-1 | DL-W1-2 | DL-W1-3 | DL-W1-5 | DL-W1-10 |
Unit Weight(kg) | 1.6 | 2.1 | 2.1 | 2.7 | 10.4 |
Weight with shackles(kg) | 3.1 | 4.6 | 4.6 | 6.3 | 24.8 |
Model | DL-W1-20 | DL-W1-25/30 | DL-W1-50 | DL-W1-100 | DL-W1-200 |
Unit Wight(kg) | 17.8 | 25/25 | 39 | 81 | 210 |
Weight with shackles(kg) | 48.6 | 73/73 | 128 | 321 | 776 |

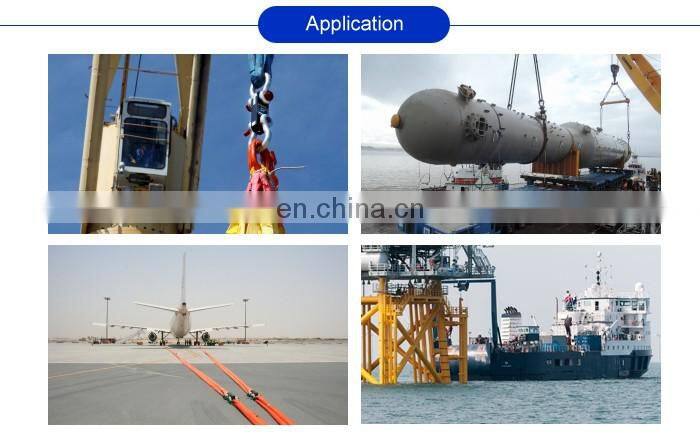

Application
Dalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.
We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.
We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.
We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.
We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.
