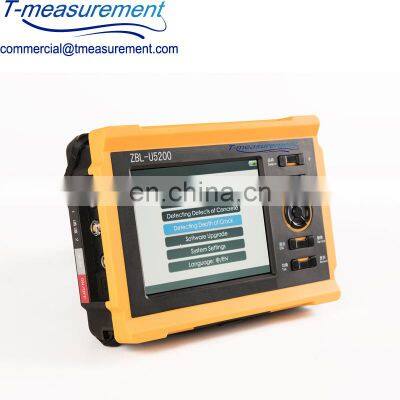

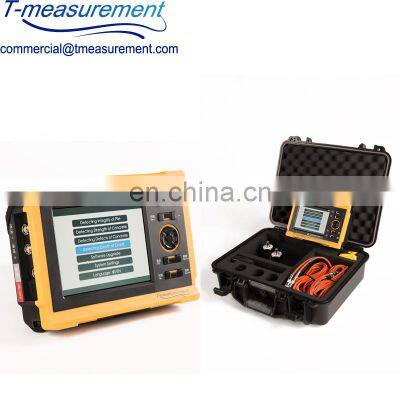

Taijia ZBL-U5200 UPV Test On Concrete Ultrasonic Pulse Detector Measuring The Depth Of The Crack
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2012
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZBL-R660 Scanner Covermeter Steel Reinforcement Detector Concrete Wall ScannerNegotiableMOQ: 1 -
Taijia TM-8812 Ultrasonic Thickness Gauging Measurement Of Thickness ,Thickness Gauge Conversion Meter TesterNegotiableMOQ: 1
-
Taijia TM-8812 Ultrasonic Thickness Measurement Gauge Material Thickness Ultrasonic Thickness Gauges MeasurementNegotiableMOQ: 1
-
Taijia Profometer Ferroscan Concrete Steel Rebar Locator Rebar Detector ScannerNegotiableMOQ: 1
-
Taijia Tferroscan/Profometer Rebar Locator Rebar Detector ScannerNegotiableMOQ: 1
Product Description
non destructive testing of concrete structures Ultrasonic detector
Structural concrete compressive strength, crack depth and defect detection
Ultrasonic transmission method for rapid detection of pile foundation, continuous wall integrity;
Geological prospecting, rock integrity, weathering evaluation test
Rock, concrete and other non- metallic materials mechanical properties testingUltrasonic-rebound combined method for testing compressive strength of concrete
non destructive testing of concrete structures Ultrasonic detector
Detailed Images
Model |
non destructive testing of concrete structures Ultrasonic detector |
Control Mode |
Built-in AB industrial control board |
Monitor |
5.7 inch, semi inverse semi penetration, TFT |
Operating Mode |
Touch screen & Keys |
Data Storage |
Built in electronic hard disk(≥4GB)+U disk |
Acquisition Mode |
Single channel manual point by point acquisition |
Number of Channels |
1 emitter+1 receiver |
Trigger |
Signal |
Sampling Interval(μS) |
0.025~1638.4 optional multiple levels |
Acoustic Time Accuracy(μS) |
0.025 |
Acoustic Time range(μS) |
±1677700 |
Dynarnic Range(dB) |
154 |
Bandwidth(kHz) |
3~450 |
Receiving Sensitivity(μV) |
≤10 |
Gain Accuracy(dB) |
0.5 |
Transmitting Voltage(V) |
65, 250,500,1000 optional four levels |
Work time(h) |
>8 |
Internal:Built-in Battery |
|
External: 220VAC/DC |
|
Temperature(℃): -10~+50 |
|
Humidity (RH) :<90% |
Analyse system
