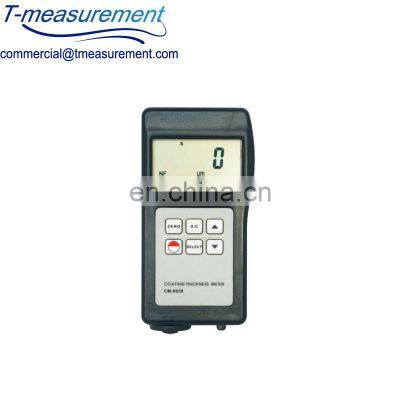

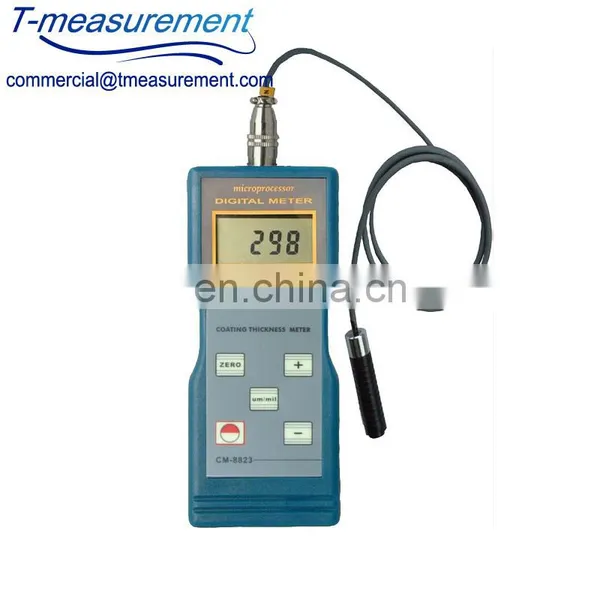

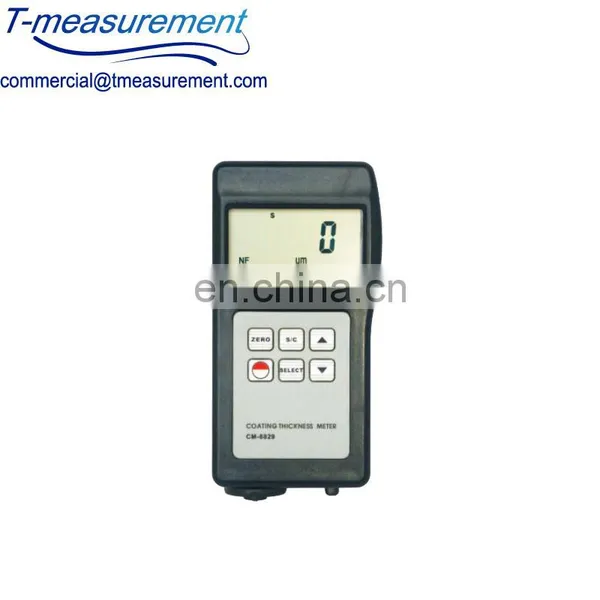

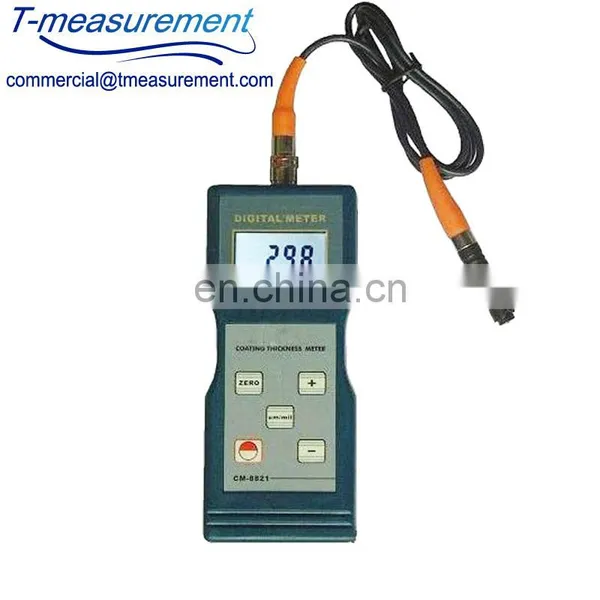

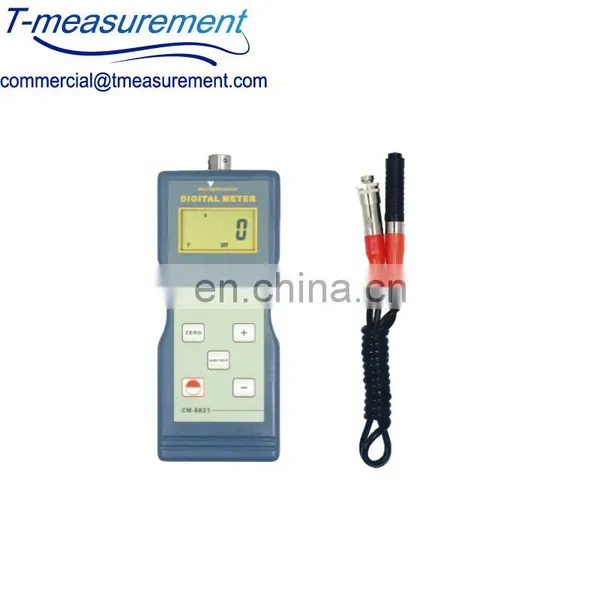

Taijia CM Series Positector 6000 Film Coating Thickness Gauge Conveyor Belt Thickness Measurement Instruments
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2012
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Taijia CM Series Cladding/Galvanized Coating Thickness Gauge Cladding Thickness GaugeNegotiableMOQ: 1 -
Taijia UTG21-K Water Level Sensor Ultrasonic ,Ultrasonic Level Transmitter Ultrasonic Level MeasurementNegotiableMOQ: 1
-
Irrigation Flanged Ultrasonic Water Meter /Sandwich Insertion Ultrasonic Water MeterNegotiableMOQ: 1
-
Ultrasonic Water Flow Meter Sandwich Insertion Ultrasonic Flow MeterNegotiableMOQ: 1
-
Light Weight Output Digital Portable Sandwich Insertion Type Ultrasonic Flow MeterNegotiableMOQ: 1
Product Description
Features
* Two principles: Magnetic Induction and Eddy Current. * Two measurement mode: Single and Continuous.
* Metric/imperial system selectable.
* Manual or automatic power off.
* Automatic memory of calibration value, and automatic recognize the substrate.
* Operation process have buzzing reminder.
* Integral Type have better stability and repeatability.
* Separate Type can provide several types of probes, measure can be more flexibility.
* Use RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
Applications
Coating thickness gauge is a kind of portable measuring instrument, can take fast, intact, precise measurement of coating thickness. It can not only be used in engine-ering field, laboratories, but also meet the demand of multiple measuring by using different probes. It is used widely in manufacturing, metal processing industry, chemical industry, commodity inspection field, etc. As an essential instrument in material protection industry.
Technical Parameters
Specification
Range |
0~1250µm / 0~50mil |
Resolution |
0.1µm / 1µm |
Accuracy |
±1~3%n or ±2.5µm |
Min. Radius Workpiece |
F Type: convex 1.5 mm / concave 25 mm |
NF Type: |
convex 3 mm / concave 50 mm |
Min. Measuring Area |
6 mm |
Min. Sample Thickness |
0.3 mm |
Metric / Imperial |
Convertible |
Battery Indicator |
Low Battery Indicator |
Automatic Power Off |
yes |
Temperature |
0~50°C |
RS-232C Data Cable with Software |
optional |
Bluetooth Data Adapter with Software |
optional |
