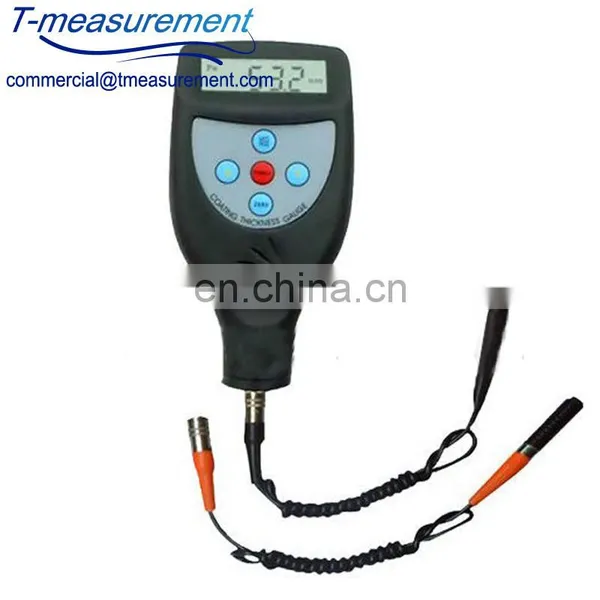

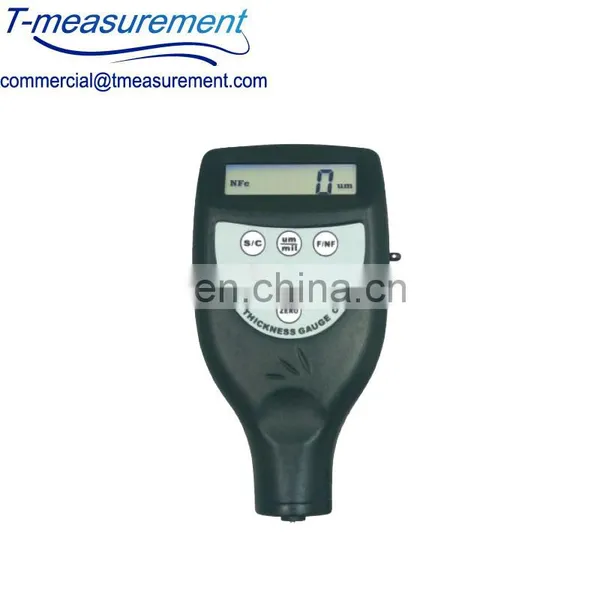

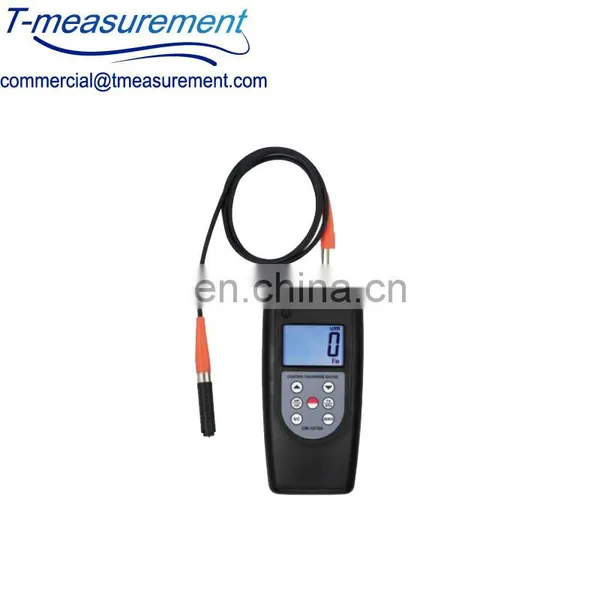

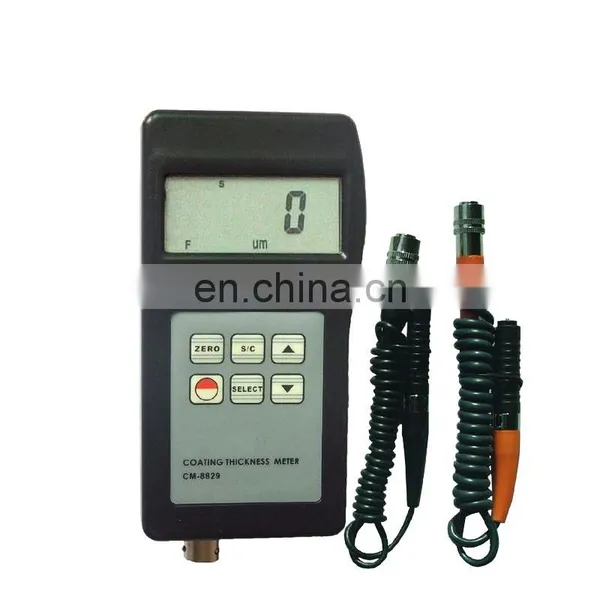

Taijia CM Series Cladding/Galvanized Coating Thickness Gauge Cladding Thickness Gauge
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Taijia UTG21-K Water Level Sensor Ultrasonic ,Ultrasonic Level Transmitter Ultrasonic Level Measurement
-
Irrigation Flanged Ultrasonic Water Meter /Sandwich Insertion Ultrasonic Water Meter
-
Ultrasonic Water Flow Meter Sandwich Insertion Ultrasonic Flow Meter
-
Light Weight Output Digital Portable Sandwich Insertion Type Ultrasonic Flow Meter
-
IP68 Smart Water Meter/sandwich Insertion Type Ultrasonic Water Meter
-
Taijia TEM-912 Resilience Test Hammer Rebound Test Hammer Rebound Schimidt Hammer
Product Description
Product Description
Features
* Two principles: Magnetic Induction and Eddy Current. * Two measurement mode: Single and Continuous.
* Metric/imperial system selectable.
* Manual or automatic power off.
* Automatic memory of calibration value, and automatic recognize the substrate.
* Operation process have buzzing reminder.
* Integral Type have better stability and repeatability.

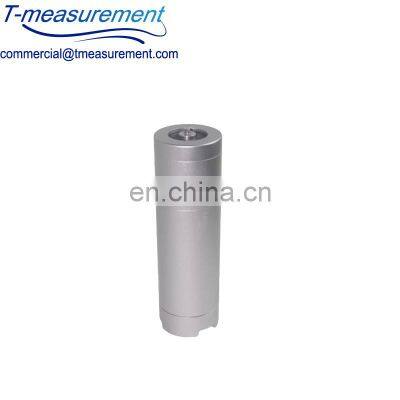

* Separate Type can provide several types of probes, measure can be more flexibility.
* Use RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
Applications
Coating thickness gauge is a kind of portable measuring instrument, can take fast, intact, precise measurement of coating thickness. It can not only be used in engine-ering field, laboratories, but also meet the demand of multiple measuring by using different probes. It is used widely in manufacturing, metal processing industry, chemical industry, commodity inspection field, etc. As an essential instrument in material protection industry.Technical Parameters
Specification
Range | 0~1250µm / 0~50mil |
Resolution | 0.1µm / 1µm |
Accuracy | ±1~3%n or ±2.5µm |
Min. Radius Workpiece | F Type: convex 1.5 mm / concave 25 mm |
NF Type: | convex 3 mm / concave 50 mm |
Min. Measuring Area | 6 mm |
Min. Sample Thickness | 0.3 mm |
Metric / Imperial | Convertible |
Battery Indicator | Low Battery Indicator |
Automatic Power Off | yes |
Temperature | 0~50°C |
RS-232C Data Cable with Software | optional |
Bluetooth Data Adapter with Software | optional |
Company Profile
Dalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.
We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.
We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.
Related products
About Us
Trade Terms
1. 18 Month's Warranty.
2. Delivery time:3-7 working days after payments received
3. MOQ:1 set.
4. Service express company:TNT/DHL/FedEX.
5. We accept T/T, Western Union, PayPal & Secure Payment.
2. Delivery time:3-7 working days after payments received
3. MOQ:1 set.
4. Service express company:TNT/DHL/FedEX.
5. We accept T/T, Western Union, PayPal & Secure Payment.
