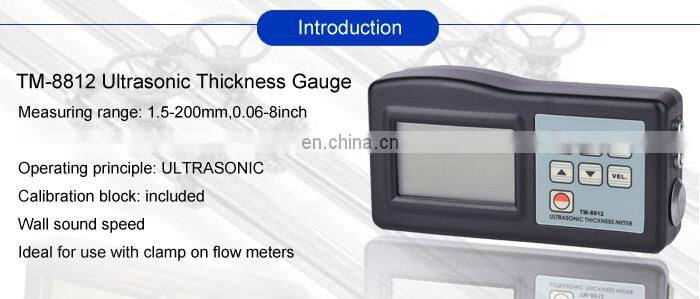

Brief Introduction of ultrasonic thickness gauge
TM8812 ultrasonic thickness gauge is used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, shipbuilding, power station, and machine manufacturing.
Ultrasonic thickness meter's Application
Applicable to measure the thickness of many materials, e.g. Steel, Cast iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron.
Plastic Digital Thickness Gauge Thickness Gauge Meter for Cast Iron/Aluminum
Plastic Material TM 8812 Ultrasonic Thickness Meter Thickness Gauge Measurement Quartz Glass

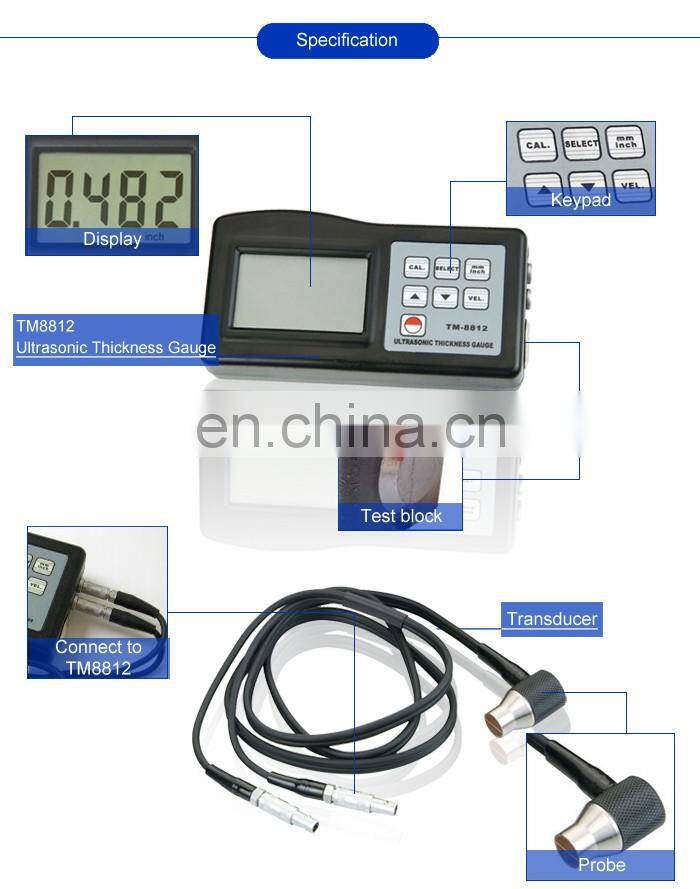

Model | TM-8812 Ultrasonic Thickness Gauge |
Measuring range(Metric Imperial) | 1.0~225 mm 0.05~9 inch |
Operating principle | ULTRASONIC |
Materials measured | Any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC ,gray cast iron, nodular cast iron and other materials. |
Sound velocity | 500~9000 m/s |
Lower limit steel pipes | Diameter 15 x2.0mm, Diameter 20 x3.0mm determined by the transducer |
Calibration block | Included |
Resolution | 0.1 mm |
Accuracy | ±(0.5%n+0.1) |
RS232C interface | With RS232C |
Power supply | 4 x1.5V AAA(UM-4) |
Battery indicator | Low battery indicator |
Operating conditions | 10~90% RH |

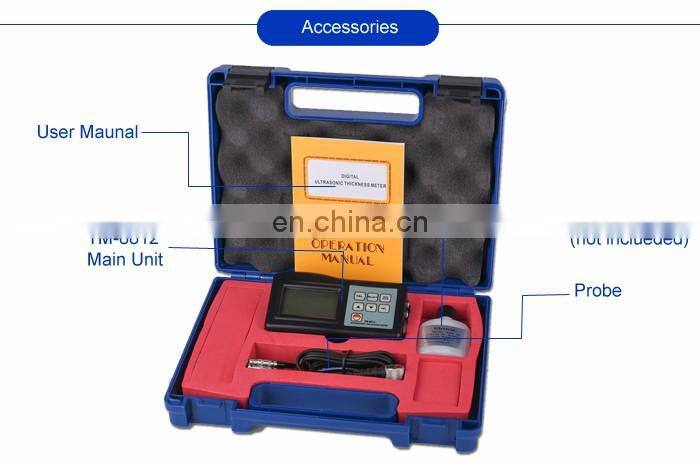

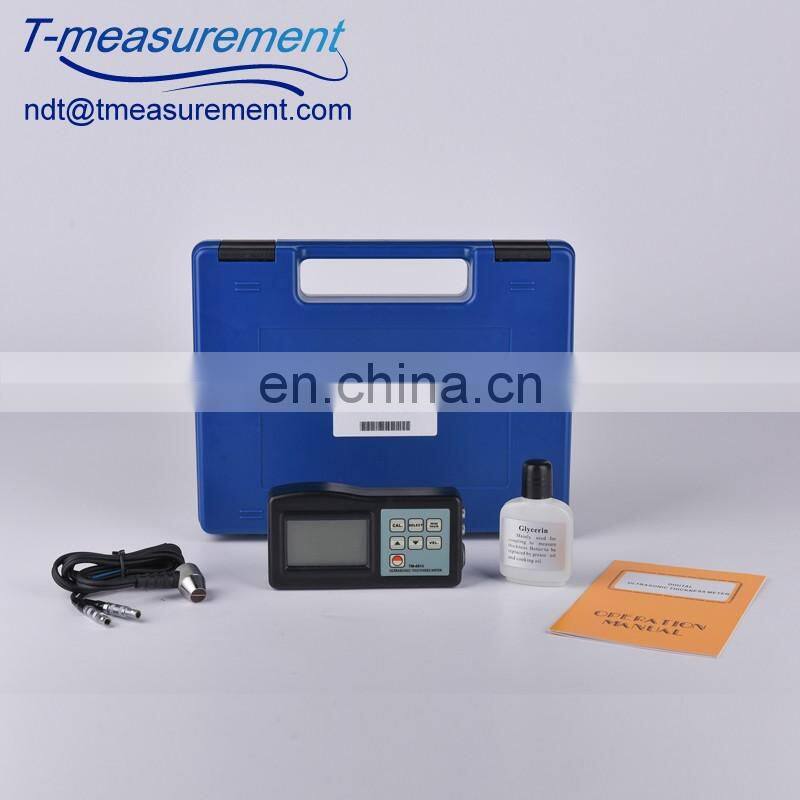

Standard Accessories
1. Main unit
2. 5MΦ10 standard sensor
3. Carrying case
4. Operating manual
Optional Accessories
1. 6M Ф 6mm thin material probe
2. 5M Ф 12mm high temperature probe
3. Curved surface probe
4. USB,RS232C data cable with software
5. Bluetooth data output with software
1. 18 Month's Warranty.
2. Delivery time:3-7 working days after payments received
3. MOQ:1 set.
4. Service express company:TNT/DHL/FedEX.
5. We accept T/T, Western Union, PayPal & Secure Payment.

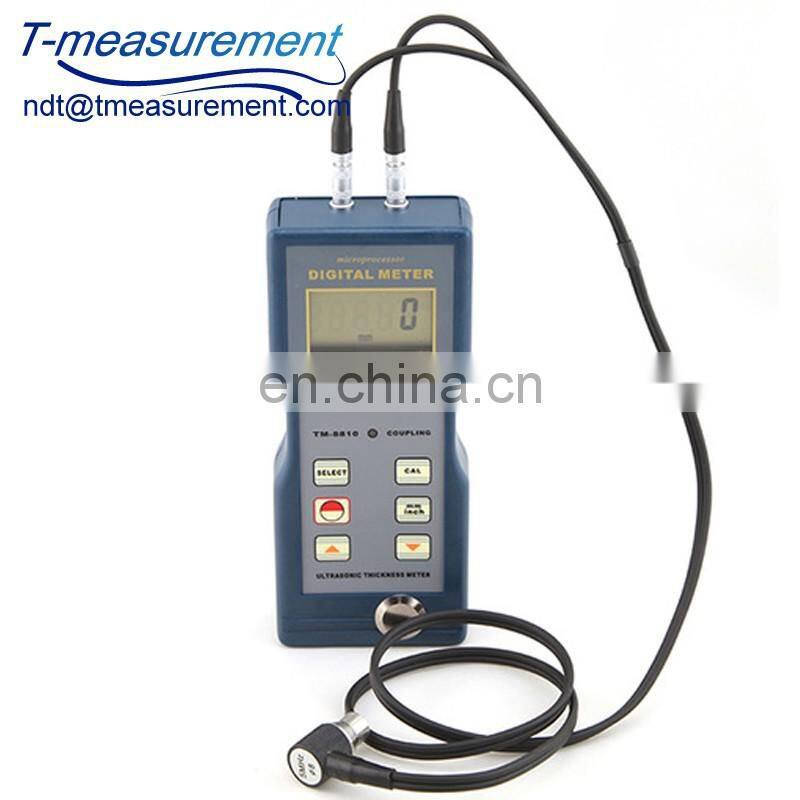

TM-8810 Ultrasonic Thickness Gauge
TM-8811 Ultrasonic Thickness Gauge
TM-8812 Ultrasonic Thickness Gauge
