JKMF High Speed Automatic Sandwich Bread Pillow Packing Machine Hot Dog Burritos Flow Wrapping Machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
JKMF High Speed Long Bread Roll Pillow Packing Machine French Baguette Flow Packing Wrapping Machine
-
JKMF High Speed Bake Bread Pillow Packing Machine With Date Printer Croissant Bread Flow Packing Wrapping Machine
-
JKMF Servo Motor Corn Tortilla Pillow Packing Machine Flour Tortilla Flow Wrapping Machine
-
Automatic Hardware Part Horizontal Packaging Machine Water Pipe Elbow Packing Machine Waterproof Tape Water-tap Packing Machine
-
JKMF Automatic Hardware Part Flow Packaging Machine Power Plug Switch Socket Packing Machine Charger Cable Packing Machine
-
Hot Sales Automatic Soap Bar Flow Packaging Machine For Small Lundry Soap Packing Machine Bath Toilet Soap Packing Machine
Product Description
JKMF High Speed Automatic Sandwich Bread Pillow Packing Machine Hot Dog Burritos Flow Wrapping Machine
Products Description

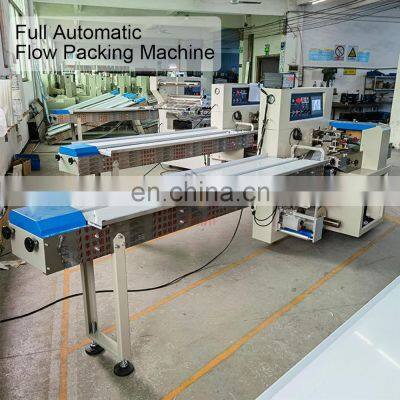

The JKMF flow packing machine features quick, easy changeover and adjustment that minimizes product and film waste and reduces maintenance costs.
The machine working starts with a cylindrical roll of film. The flow wrapping machine will transfer the film from the roll and through to the forming collar (sometimes referred to as tube or plow). At the same time, a conveyor has lined up individual products for wrapping. The film is fed through the collar and the product is surrounded with film, sealed and the film is then cut. The finished individual product is then gathered downstream to be bagged or cartoned prior to boxing and palletizing.
Automatic flow packing machine is a widely used packing machine.
Suitable for all kinds of product packaging. Including medical supplies, vegetables and meat, baked bread, snacks and candy, daily necessities, hardware accessories, etc.
Machine Paramenters
JKMF flow packing machine, packaging speed is fast, the efficiency is high, the packaging process is clean and hygienic, and the operation is simple.
Choose the right packaging equipment for your operation and get the highest levels of safety, shelf life, flavor retention, and appearance at every stage of production.
The process of automatic bag making, date coding, labeling, weighing, and packaging is completed at one time.
Main Features
1.Dual frequency conversion control, Bag length can be set and cut in one step, saving time and film.
2.Interface features easy and quick setting and operation.
3.Self failure diagnosis, clear failure display.
4.High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5.Temperature independent PID control, more suitable for packaging different materials.
6.Positioned stop function, without sticking knife or wasting film.
7.Simple driving system, reliable working, convenient maintenance.
8.All control is realized through software, easy for function adjusting and technical upgrade.
2.Interface features easy and quick setting and operation.
3.Self failure diagnosis, clear failure display.
4.High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5.Temperature independent PID control, more suitable for packaging different materials.
6.Positioned stop function, without sticking knife or wasting film.
7.Simple driving system, reliable working, convenient maintenance.
8.All control is realized through software, easy for function adjusting and technical upgrade.
Model | JK-250X | JK-350X | JK-450X | JK-600X |
Film Width | Max.250 mm | Max.350 mm | Max.350 mm | Max.350 mm |
Packing Size | L: 45~330 mm W:30~110 mm H:Max.70 mm | L: 65~330 mm W:50~160 mm H:Max.80 mm | L: 45~330 mm W:30~110 mm H:Max.70 mm | L: 45~330 mm W:30~110 mm H:Max.70 mm |
Packing Speed | 40~230 bags/min | 40~230 bags/min | 30~150 bags/min | 30~150 bags/min |
Machine Power | 220V, 50/60Hz, 2.4KW | 220V, 50/60Hz, 2.4KW | 220V, 50/60Hz, 2.6KW | 220V, 50/60Hz, 2.6KW |
Machine Size | 3920*670*1320 mm | 4020*720*1450 mm | 3990*900*1468 mm | 3990*1000*1468 mm |
Machine Weight | 800 KG | 900 KG | 900 KG | 1050 KG |

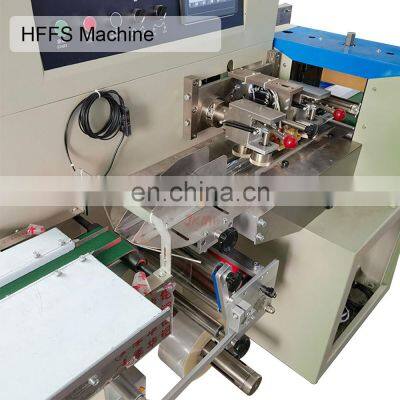

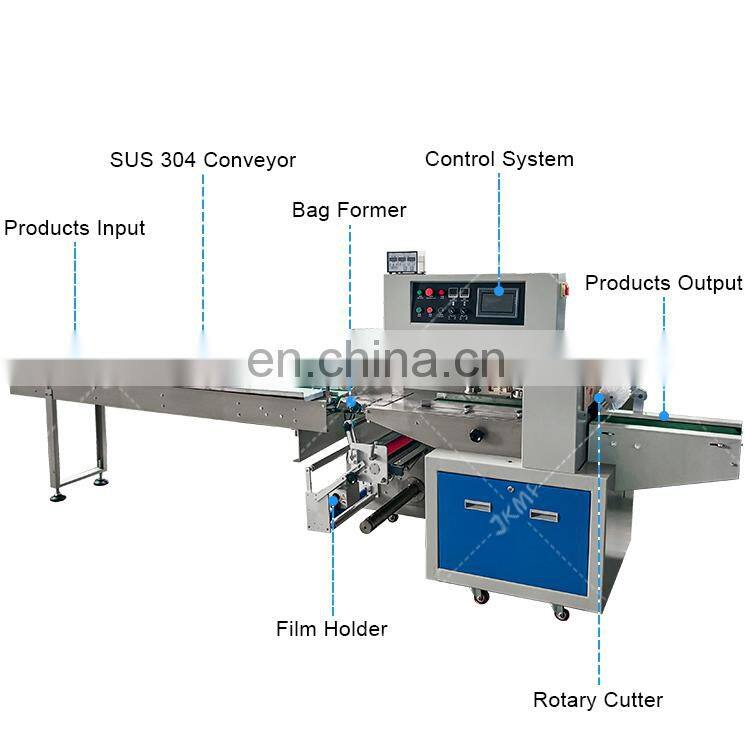

Machine Details

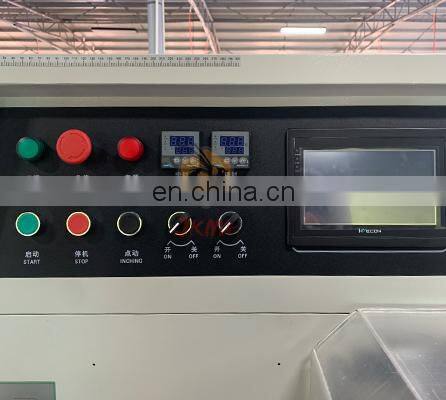

The packaging parameters setting is set on the HMI screen (human machine interface).
A pulse is generated for machine movement, and this is transferred to the PLC (programmable logic controller).
Including packaging size, packaging speed, etc.

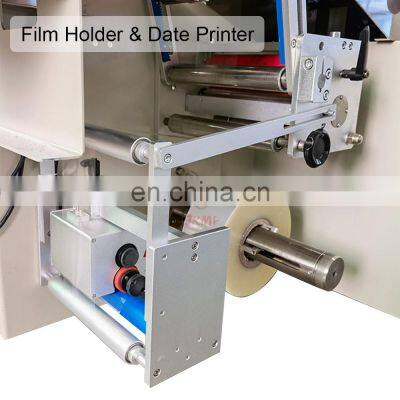

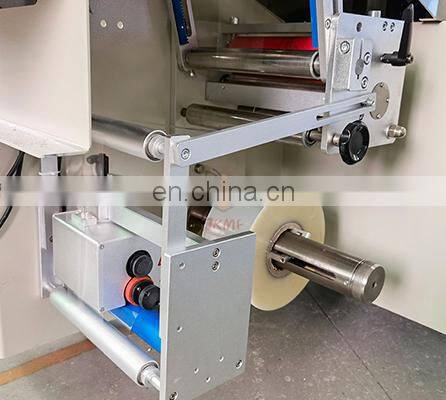

With Date Printer
When the HFFS packaging machine is operating, the film is usually pulled off the roll by film transport belts, which are positioned to the side of the forming tube which is located at the front of the machine.
A date printer can be installed on the film holder, so that the production date and other information can be printed on the colleague of the packaging.

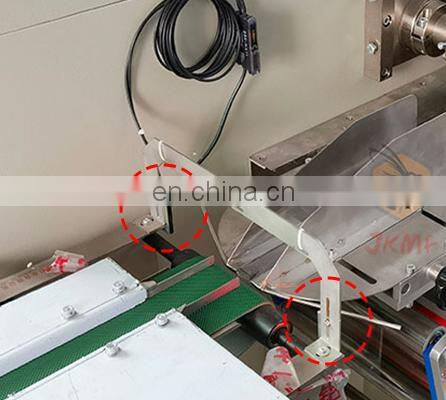

Infrared Sensing Device

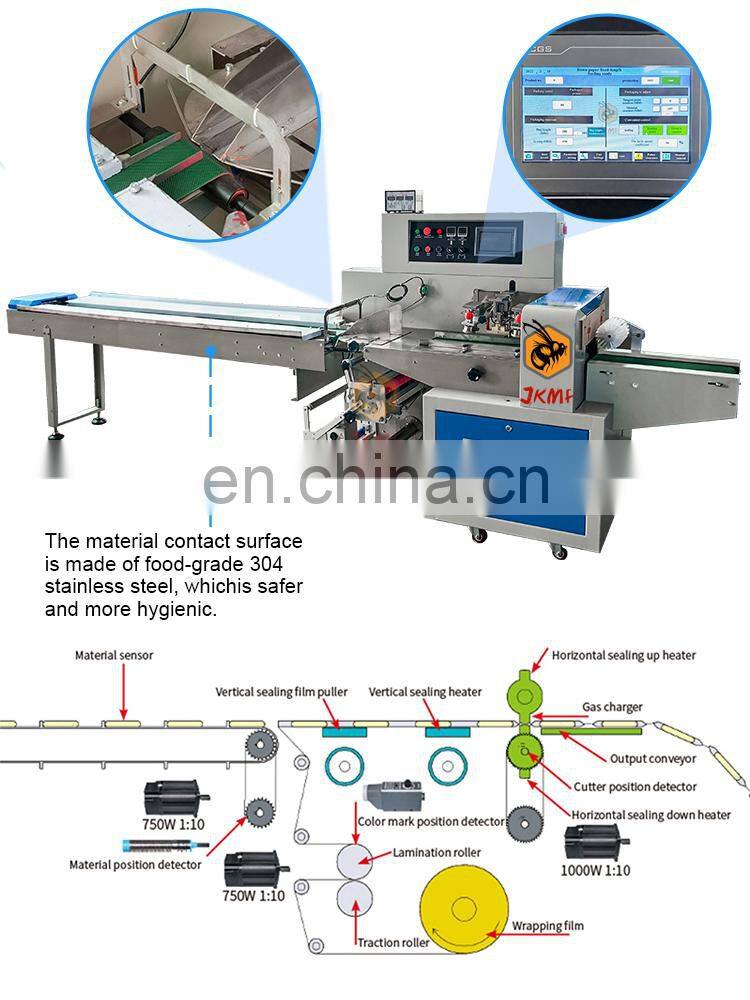

The machine adopts a three-servo induction drive system, infrared induction products, and transmits the signal to the PLC controller, and the machine automatically recognizes and judges the size of the bag.

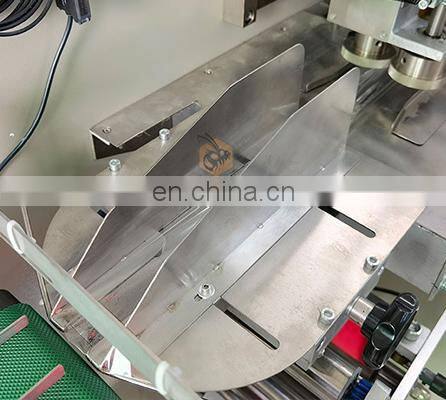

The film enters a forming tube assembly.
As it crests the shoulder (collar) on the forming tube, it is folded around the tube so that the end result is a length of film with the two outer edges of the film overlapping each other.

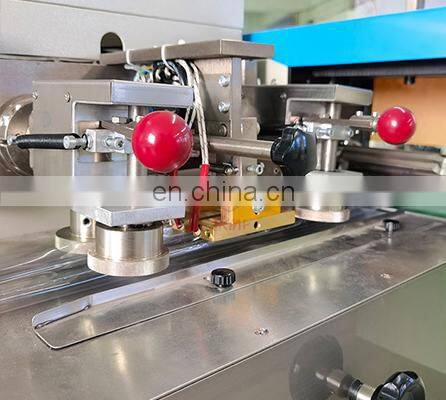

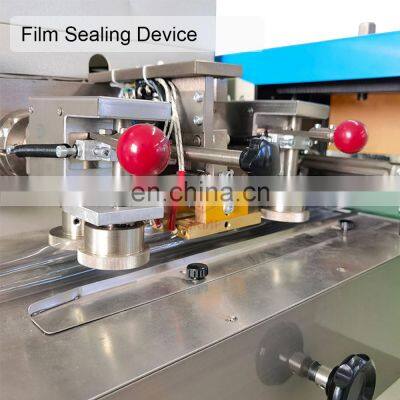

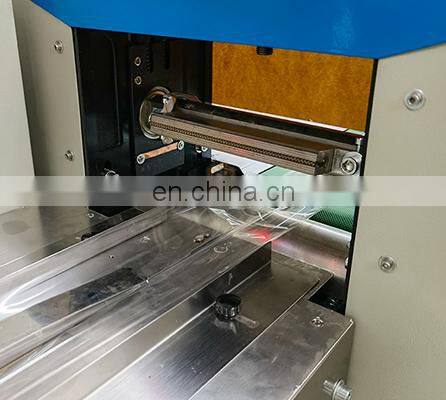

The horizontal seal bar, which is hot, moves forward and makes contact with the horizontal overlap on the film, bonding the layers of film together.
A set of heated horizontal sealing jaws come together to make the top seal of one bag and the bottom seal of the next bag. While the sealing jaws are closed, the product that is being packaged is dropped down the middle of the hollow forming tube and filled into the bag.
This is a complete packaging process, you will get the perfect packaging finished product.

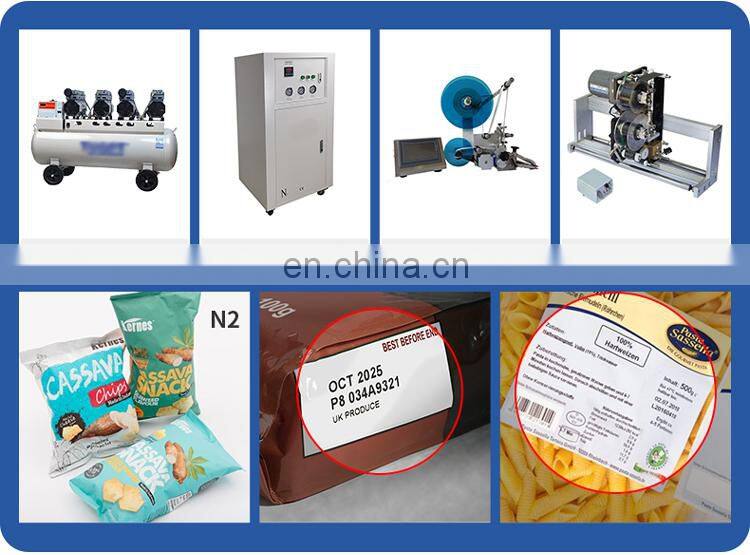

If your product needs to be filled with nitrogen to ensure the freshness of the product, then you need to purchase a set of nitrogen production equipment. In addition, our machines can also be equipped with labeling machines, date coding machines, etc. to meet your production needs.
Why Choose Us
JIKE BEE MACHINERY has a professional team to provide customers with various packaging solutions. Fully understanding the needs of customers,engineers design the most suitable solution. We have our own processing and assembly workshop and quality inspection and debugging process to ensure the quality of the machine.
After acceptance by the customer, they are packed in international standard wooden cases and shipped.
The machine has more than 10 advanced patented technologies, CE certificate, ISO9001 certification, etc.

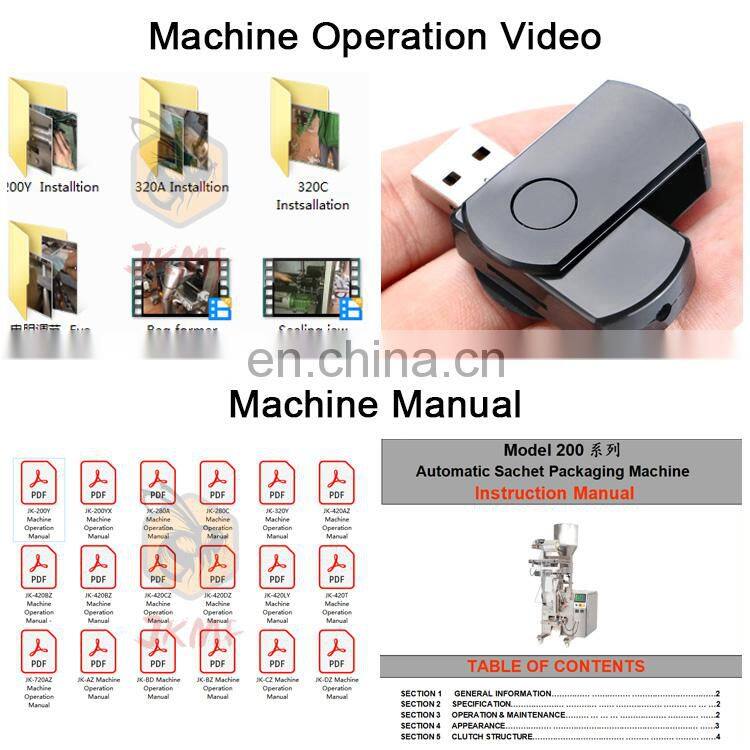

We will package the machine's instruction manual and a USB flash drive with machine operation videos together with the machine.
Ensure that you can use the machine as soon as you receive it. If you have something you don't understand, our after-sales team will also help you answer in time.
Ensure that you can use the machine as soon as you receive it. If you have something you don't understand, our after-sales team will also help you answer in time.
Our customers have covered more than 80 countries around the world.
And give us unanimous praise.
Company Profile

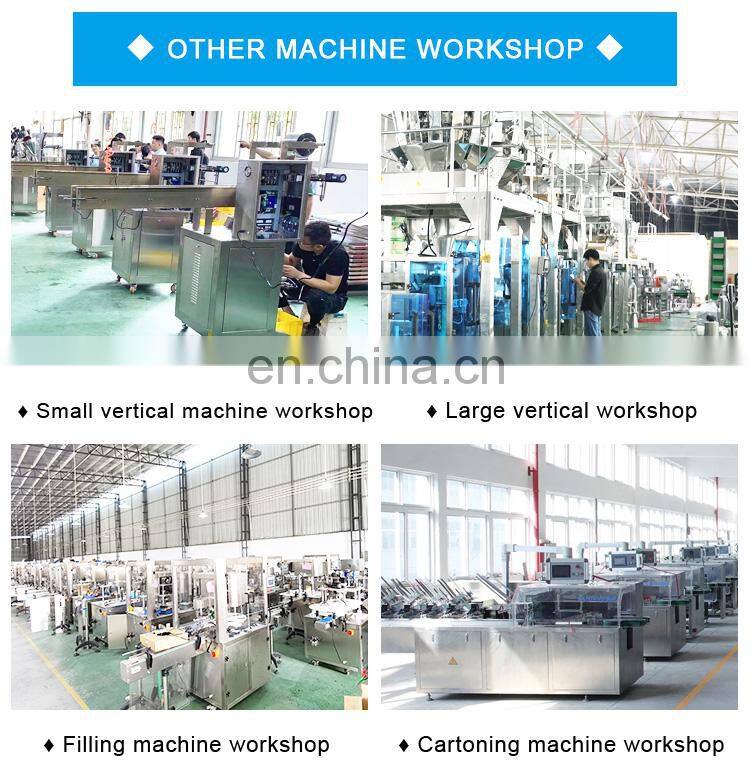

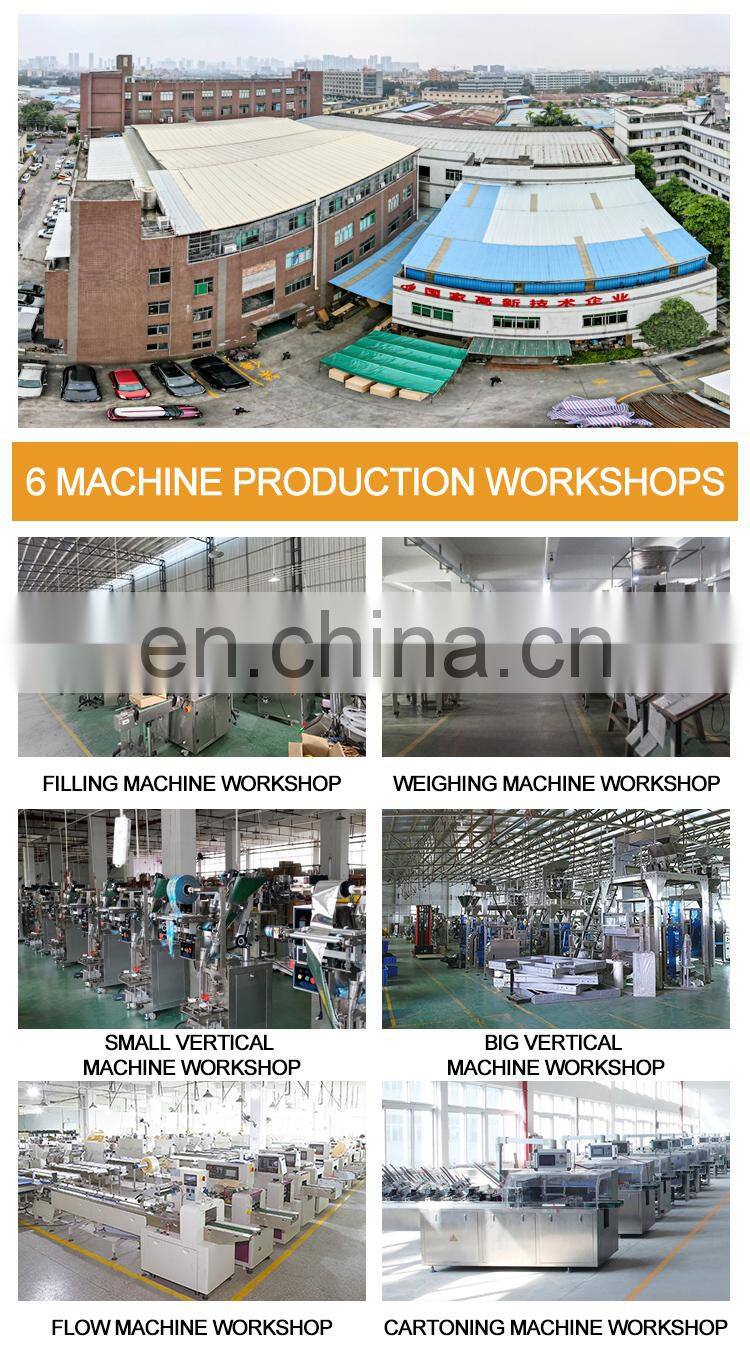

Foshan Jike Bee Automation Equipment Co., Ltd. is a manufacturer of automatic packaging equipment.We are a production-oriented enterprises focused on product innovation, factory direct sales and perfect after-sales service in one.
Mainly applicable to: food, hardware, drugs, daily chemicals, pesticides, fruits and vegetables, cosmetics, other industries.The company has its own patent and product technical certification, which can bring customers high quality equipment and worthy of customer trust.
FAQ
Q1:Do you have manual or operation video for us to know more about the machine?
Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q2:How can I trust you for the first time business ?
Please note our above business license and certificate. And if you don't trust us, then we can use trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q3:Is engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q4:How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
Q5:Will you provides the door to door service?
Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
