Light Cream,Cheese Automatic Packaging Machine,filling Machine, Saide-SJYB-ⅢSD-F

100--1000ml Automatic Liquid Packaging Machine

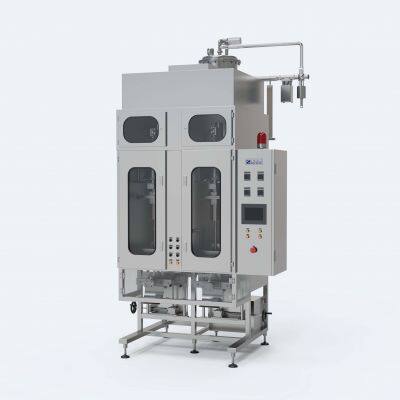

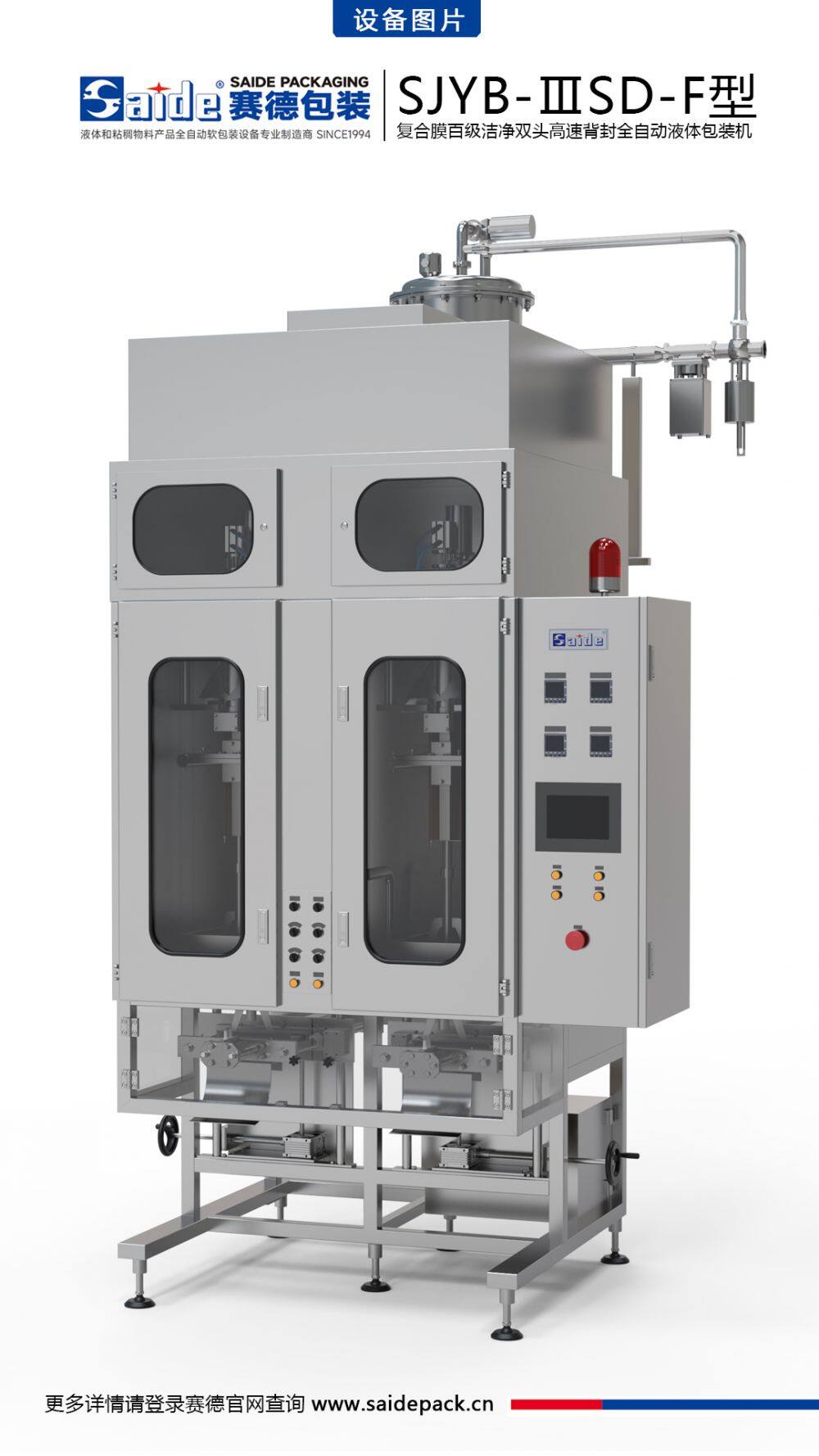

SJYB-ⅢSD-F

Class 100 Cleanroom Grade Back-Sealing Dual-Head Automatic Liquid Packaging Machine -Composite Film

The packaging machine can be customized according to your requirements.

Main Applications

This machine is a Class 100 clean, back-sealed, high-speed, dual-head fully automatic packaging equipment designed and manufactured for liquids and viscous materials that require high cleanliness in the packaging environment. It is suitable for packaging the following products:

Butter, lard, soybean oil, palm oil and other animal and vegetable oils, various sauces such as bean paste, sweet bean sauce, and salad dressing, various soups like bone broth, cream, condensed milk, egg liquid, coconut milk, lubricating oil, liquid fertilizer, coatings, wood paint, detergents, fabric softeners, bleach, additives, pasteurized milk, dairy beverages, liquid condiments such as soy sauce and vinegar, fruit juice, drinking water, and plant-based protein beverages.

Technical Features

1.      Equipped with a Class 100 laminar flow purification device on top, the entire packaging process is completed within its clean environment.

2.      The vertical-sealing lifting mechanism allows stepless adjustment within different height ranges, enabling quick product changeovers for various specifications.

3.      The sealing process, optimized for nylon film, enhances seal strength through a multi-blade design.

4.      Modular construction with stainless steel components, featuring a servo motor and pneumatic hybrid drive system.

5.      Intelligent control system incorporating PLC and HMI touchscreen.

6.      High-intensity UV lamp for packaging film sterilization.

7.      Supports CIP (Clean-in-Place) automatic circulation cleaning system.

8.      Packaging material: composite film.

9.      Fully automated process including bag forming, filling, metering, sealing/cutting, and date printing.

10.   The machine boasts high cleanliness, wide capacity adjustment range, high-speed operation, precise metering, strong stability, long service life, user-friendly operation, and flexible adjustments.

Technical Performance Parameters

Capacity：60~90bags/min；36~60bags/min

Packing Volume：500~100ml；1200~500ml

Width of film：240~350mm

Accuracy：±0.5%

Air Pressure： 0.65MPa       Power supply：AC220V±10% 50Hz

Maximum Power：4KW

Dimensions：1700(L)×1650(W)×3300(H)mm     Weight：700Kg
