Oil Packaging Machine,Grease Packaging Machine, Fat Packaging Machine Saide-SJYB-Ⅵ

1-5L Automatic Liquid Packaging Machine

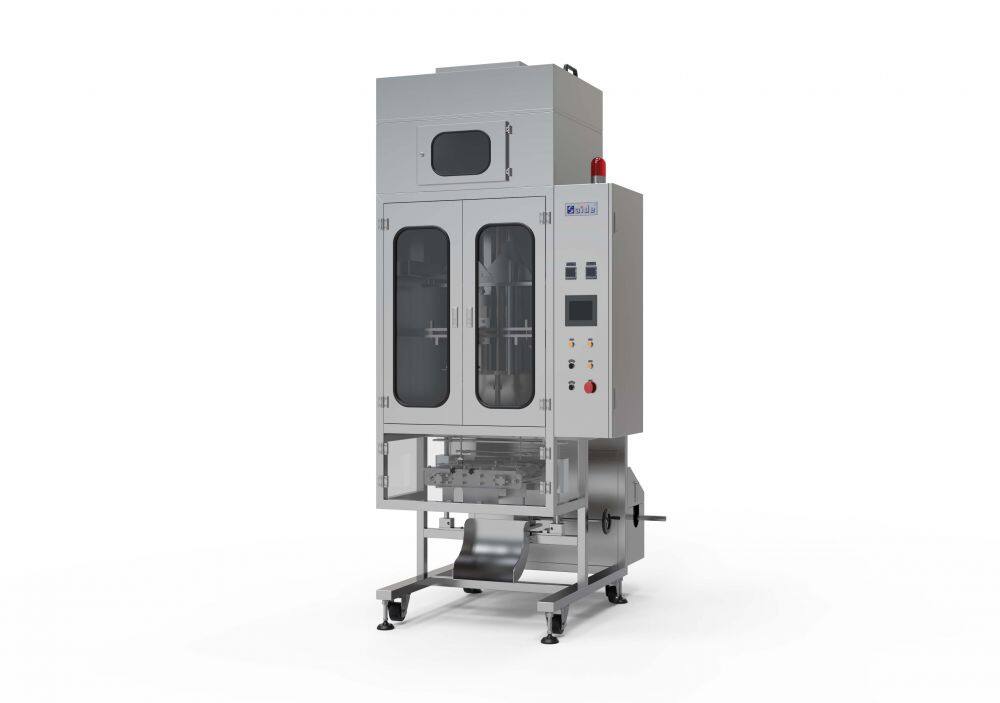

SYB-Ⅵ/SJYB-Ⅵ

Automatic Liquid Packaging Machine（Class 100 Cleanroom Grade）

The capacity can be customized according to requirements.

Main Applications

This machine is an fully automatic packaging equipment designed and manufactured for liquid and viscous materials, suitable for packaging the following products:

Butter, lard, salad oil, palm oil, and other animal and vegetable fats; various sauces such as bean paste, sweet bean sauce, and salad dressing; various soups including beef bone broth; liquid condiments like soy sauce, vinegar, and yellow wine; cream, condensed milk, egg liquid, coconut milk, cold noodle sauce, herbal tea, alcoholic beverages; lubricants, liquid fertilizers, coatings, wood paint, detergents, fabric softeners, bleach, additives; pasteurized milk, yogurt, dairy beverages, fruit juice, drinking water, plant-based protein drinks, and active probiotic cultures..

Technical Features

1.      Optional top-mounted Class 100 laminar flow purification device ensures the entire packaging process is completed in a clean environment.

2.      The lift-type horizontal sealing unit allows stepless adjustment within different height ranges, enabling quick switching between products of various specifications.

3.      Modular design with stainless steel components, combining servo motors and pneumatic systems for transmission.

4.      Equipped with an intelligent control system featuring PLC and HMI touch screen.

5.      High-intensity UV lamps sterilize the packaging film.

6.      Supports CIP (Clean-in-Place) automatic circulation cleaning system.

7.      Uses composite film packaging material, with multi-sealing blade design to enhance seal strength.

8.      Fully automated process including bag forming, filling, measuring, sealing/cutting, and date printing.

9.      The machine features high cleanliness, large capacity and adjustment range, fast operation, high measurement accuracy, strong stability, long service life, user-friendly operation, and flexible adjustments.

Technical Performance Parameters

Capacity：5~20bags/min；

Packing Volume：5~1L；

Width of film：350-620mm

Accuracy：±0.5%

Air Pressure： 0.65MPa      Air consumption：0.6m³/min（0.8Mpa）

Power supply：AC220V±10%  50Hz

Maximum Power：3 KW /2.5KW

Dimensions：1560(L)×1550(W)×2700 (H)mm/3100mm     Weight： 670Kg /710Kg
