Liquid Seasoning Packaging Machine,Sauce Packaging Machine,Automatic Liquid Packaging Machine,Saide-SJYB-ⅢSD.

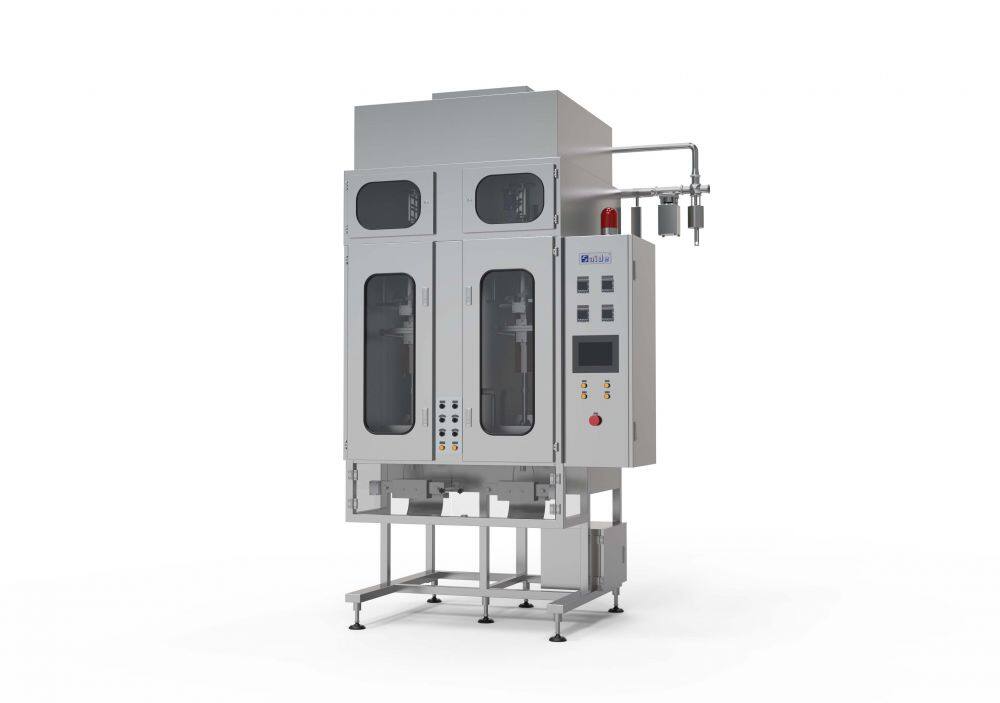

100--1000ml Automatic Liquid Packaging Machine

 SJYB-ⅢSD

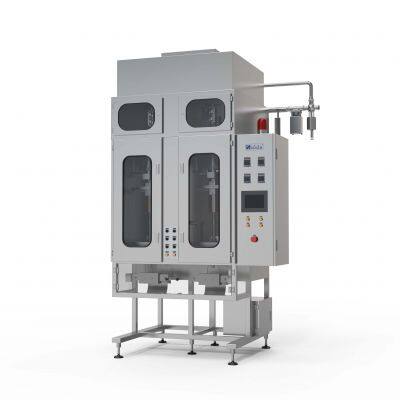

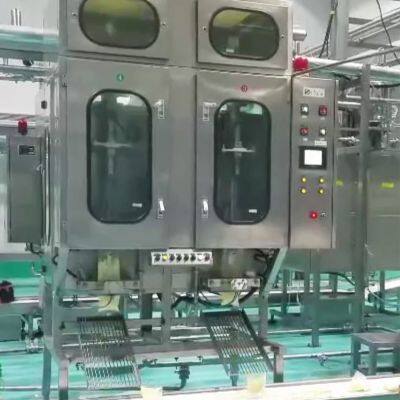

Class 100 Cleanroom Grade Back-Sealing Dual-Head Automatic Liquid Packaging Machine

The packaging machine can be customized according to your requirements.

Main Applications

This machine is a Class 100 clean, back-sealed, high-speed, dual-head fully automatic packaging equipment designed and manufactured for liquids and viscous materials with high requirements for packaging environment cleanliness. It is suitable for packaging the following products:

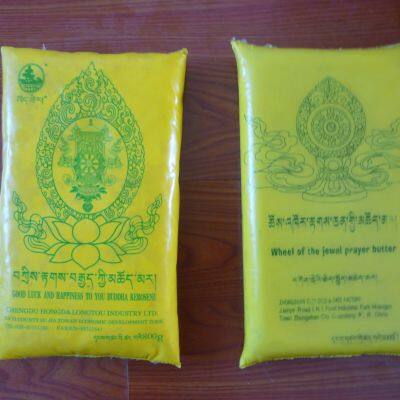

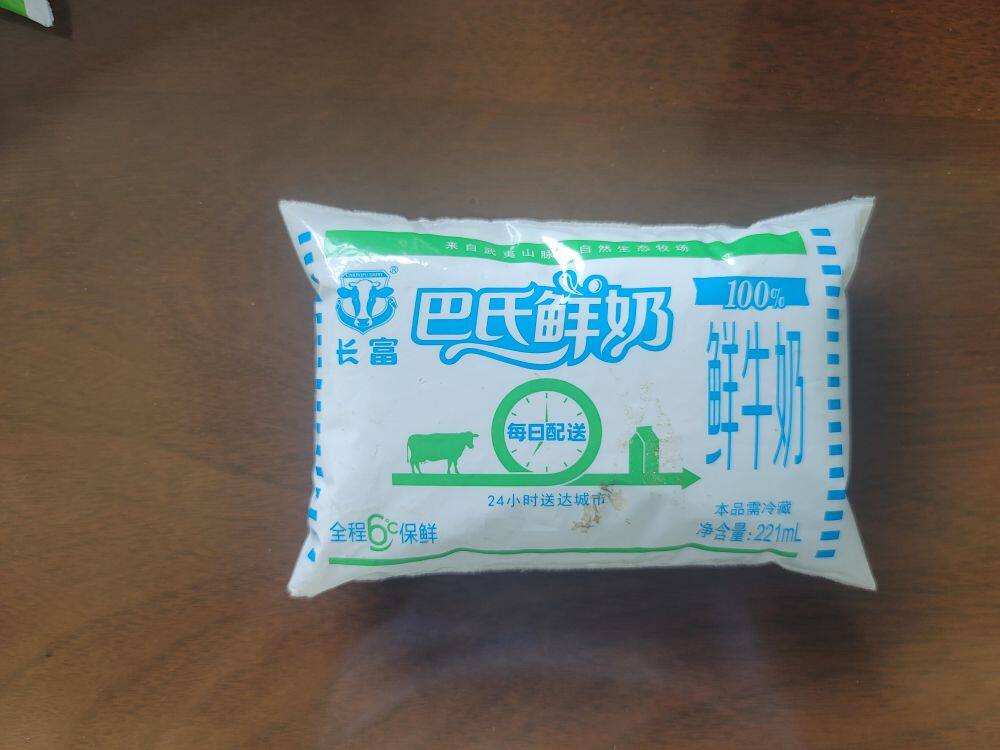

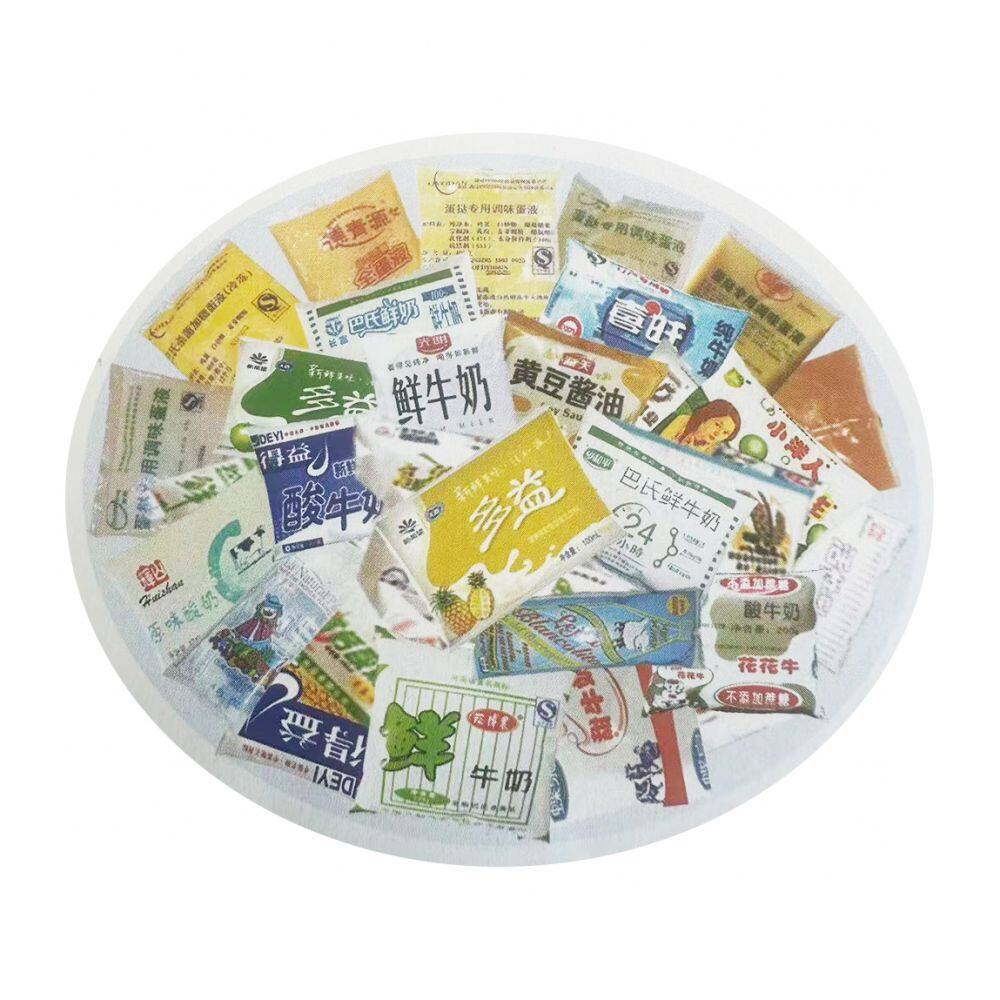

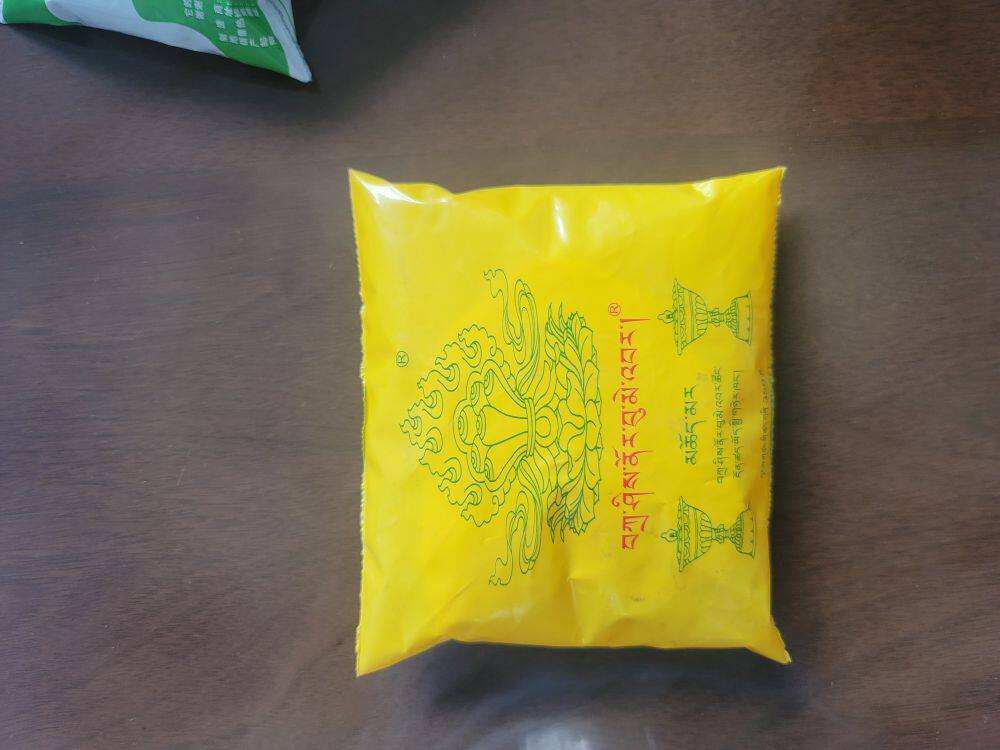

Pasteurized milk, dairy beverages, pre-fermented yogurt, cream, condensed milk, soy milk, fruit juice, drinking water, plant-based protein beverages, liquid eggs, various soups, liquid condiments such as soy sauce and vinegar, as well as active biological cultures.

Technical Features

1.      Equipped with a Class 100 cleanroom laminar flow purification system on the top, ensuring the entire packaging process is completed in a purified environment.

2.      Modular design with stainless steel components, combining servo motors and pneumatic transmission systems.

3.      Intelligent control system featuring PLC and human-machine interface (HMI) touchscreen.

4.      High-intensity UV lamps for sterilizing packaging film.

5.      Supports CIP (Clean-in-Place) automatic circulation cleaning system.

6.      Packaging material: PE film.

7.      Fully automated processes including bag forming, filling, measuring, sealing/cutting, and date printing.

8.      The machine boasts high cleanliness, wide capacity adjustment range, fast operation speed, high measurement accuracy, strong stability, long service life, user-friendly operation, and flexible adjustments.

Technical Performance Parameters

Capacity       ：90~134 bags/min；50~90 bags/min

Packing Volume：500~100ml；1000~500ml

Width of film：240~330mm

Accuracy：±0.5%

Air Pressure： 0.65MPa

Air consumption：1.0m³/min（0.8Mpa）

Power supply：AC220V±10% 50Hz

Maximum Power：4KW

Dimensions：1700(L)×1600(W)×3100(H)mm

Weight：700Kg
