100--1000ml Automatic Liquid Packaging Machine

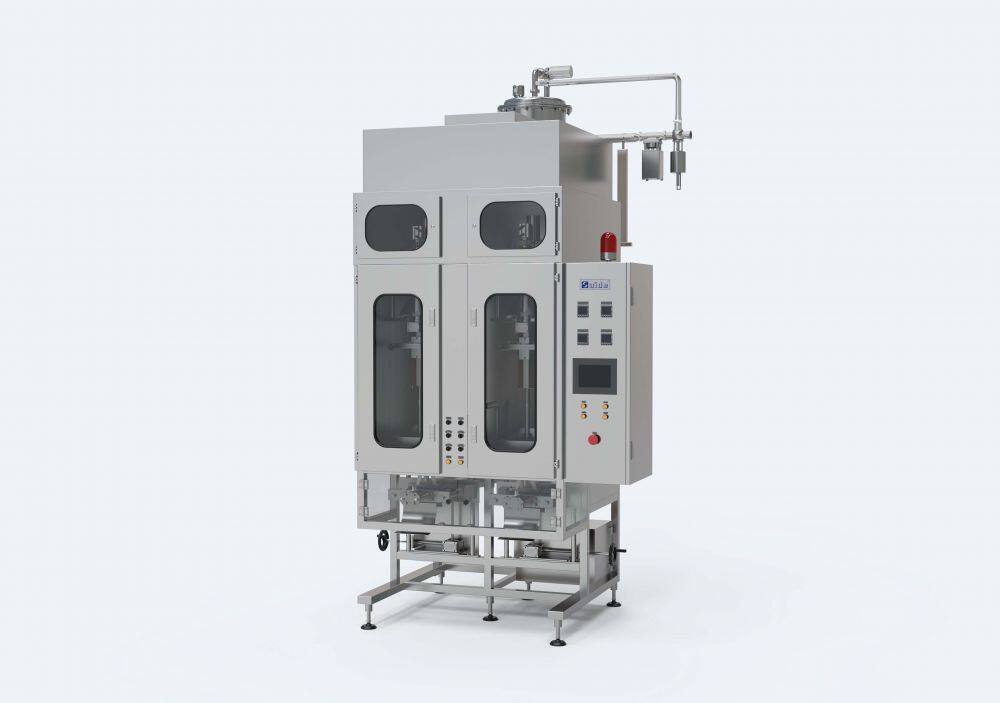

 SJYB-ⅢSD-F

Class 100 Cleanroom Grade Back-Sealing Dual-Head Automatic Liquid Packaging Machine -Composite Film

The packaging machine can be customized according to your requirements.

Main Applications

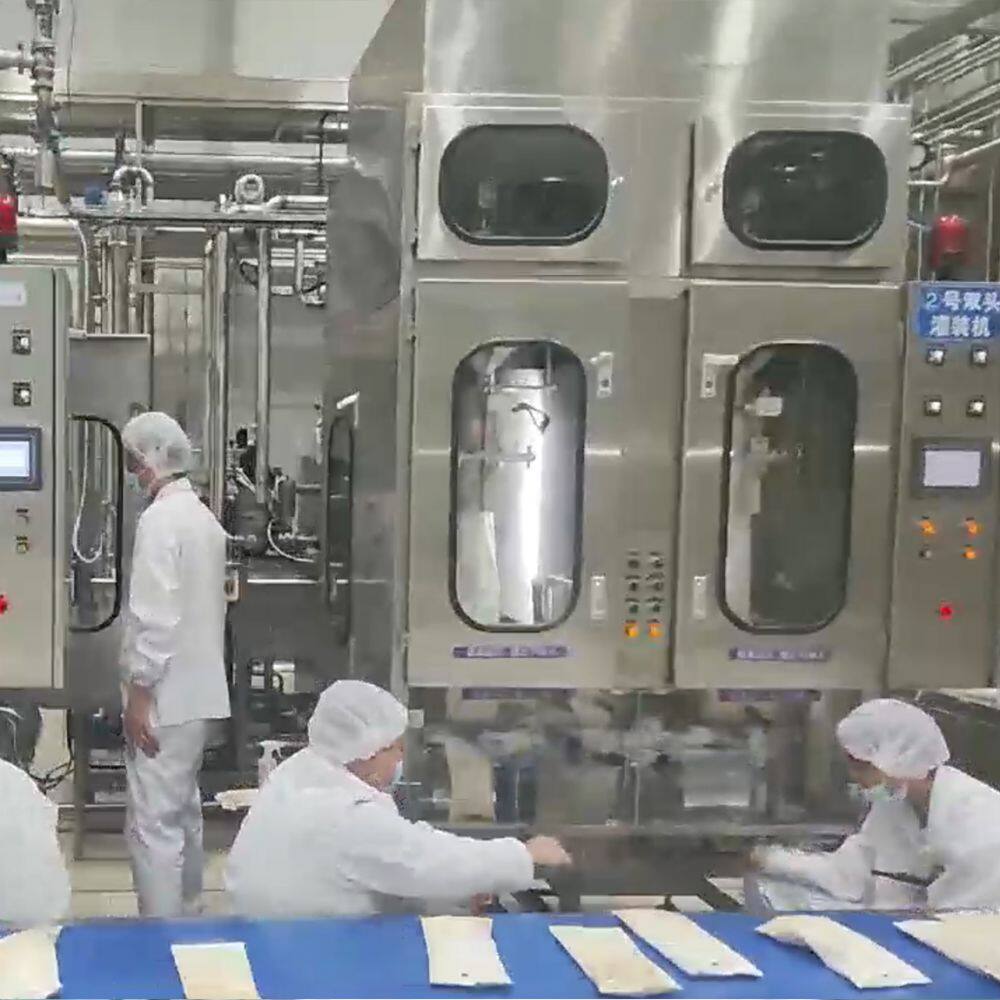

This machine is a Class 100 clean, back-sealed, high-speed, dual-head fully automatic packaging equipment designed and manufactured for liquids and viscous materials that require high cleanliness in the packaging environment. It is suitable for packaging the following products:

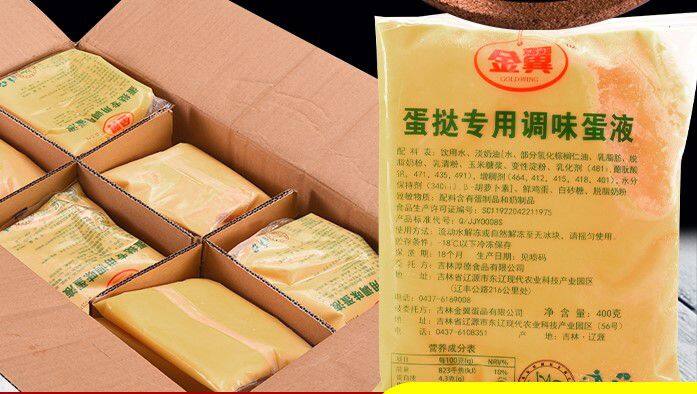

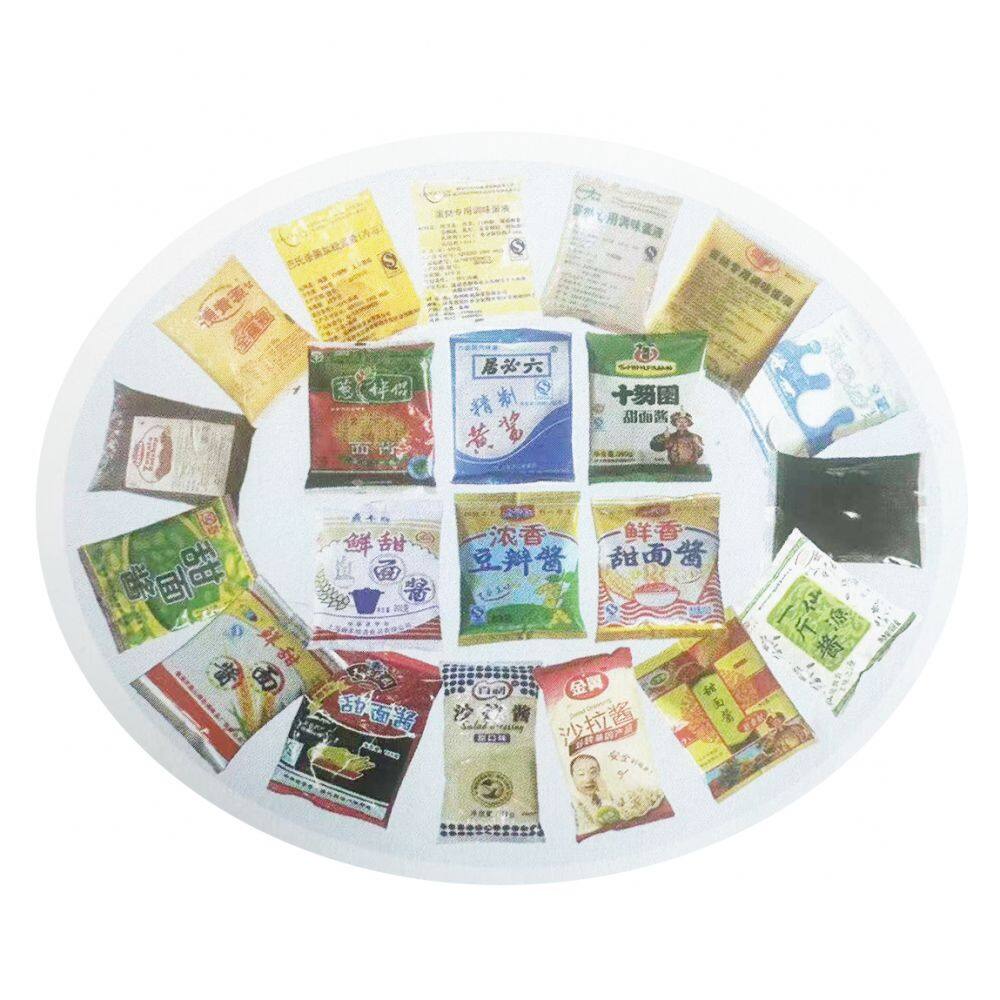

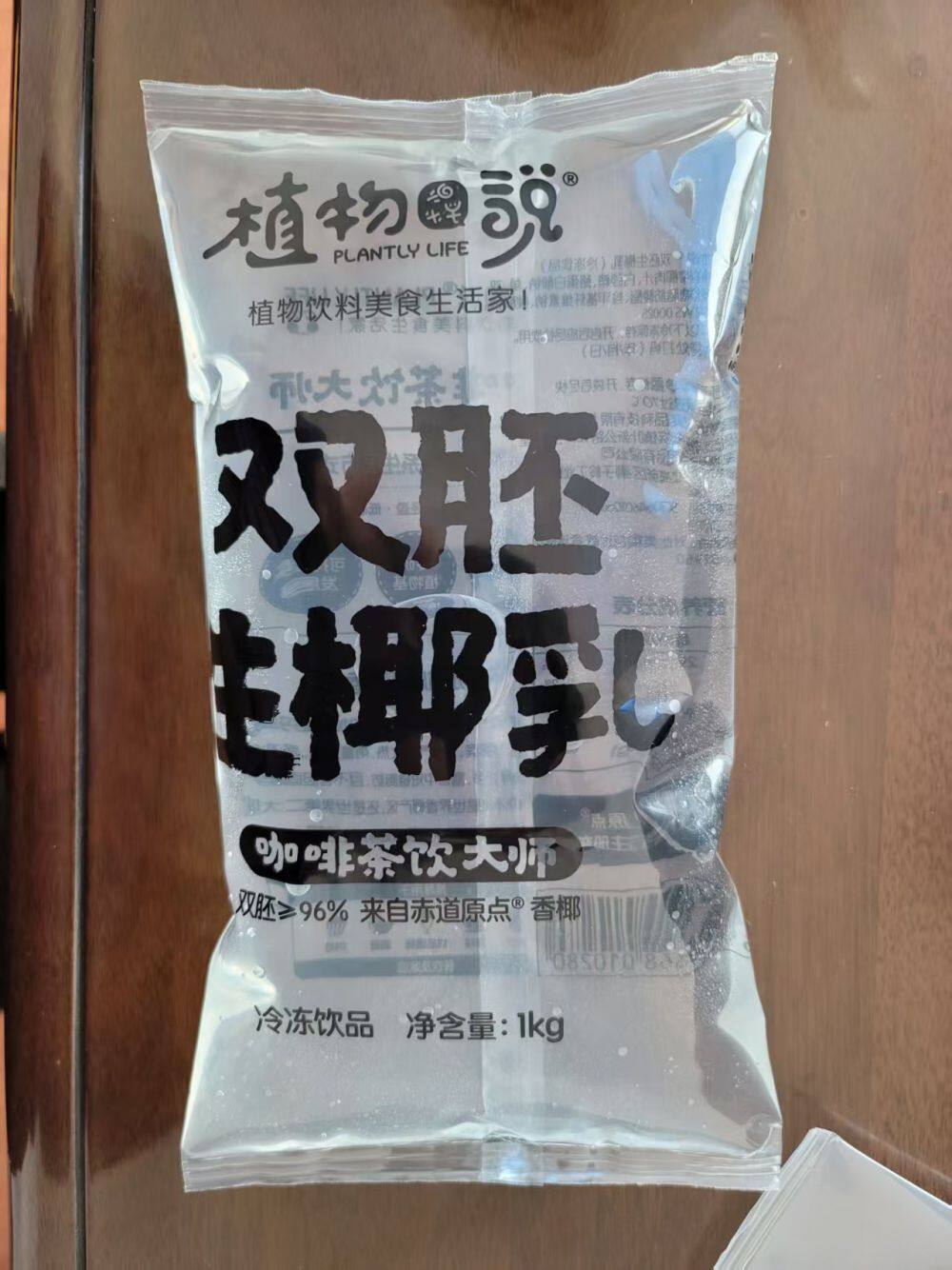

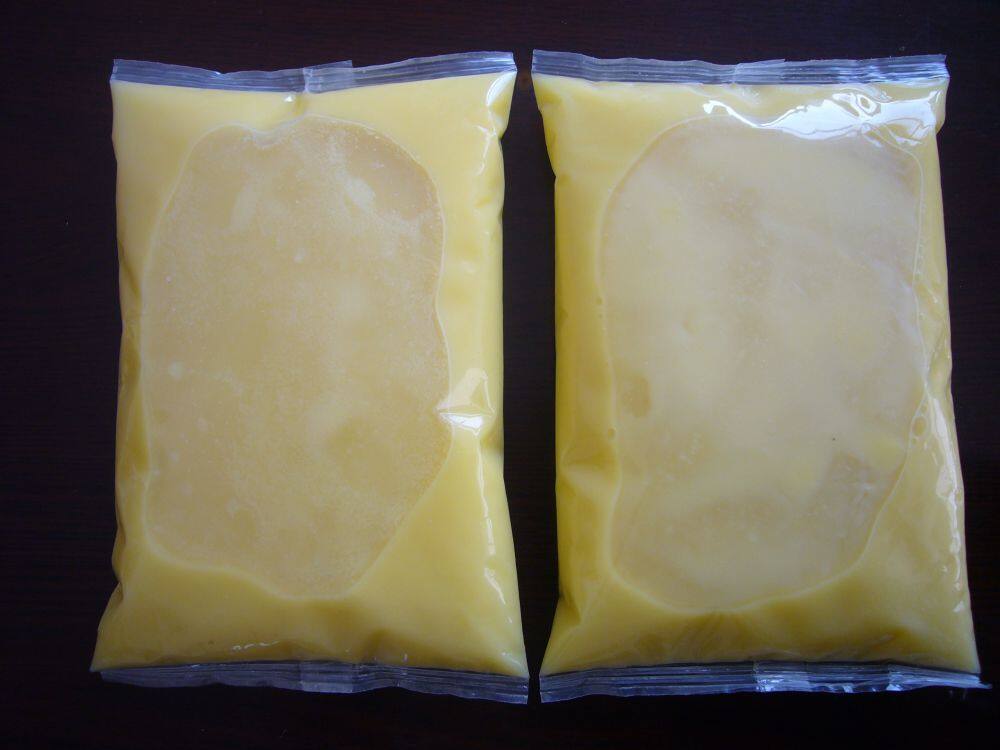

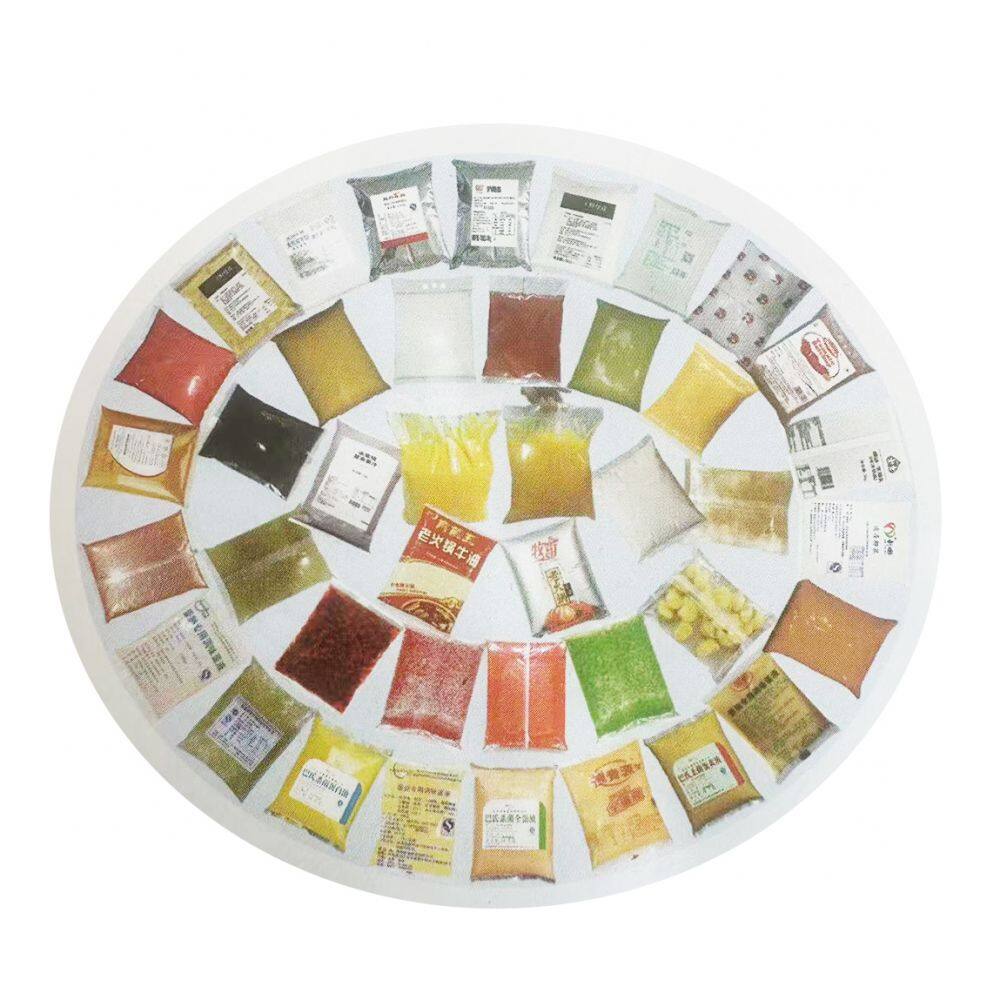

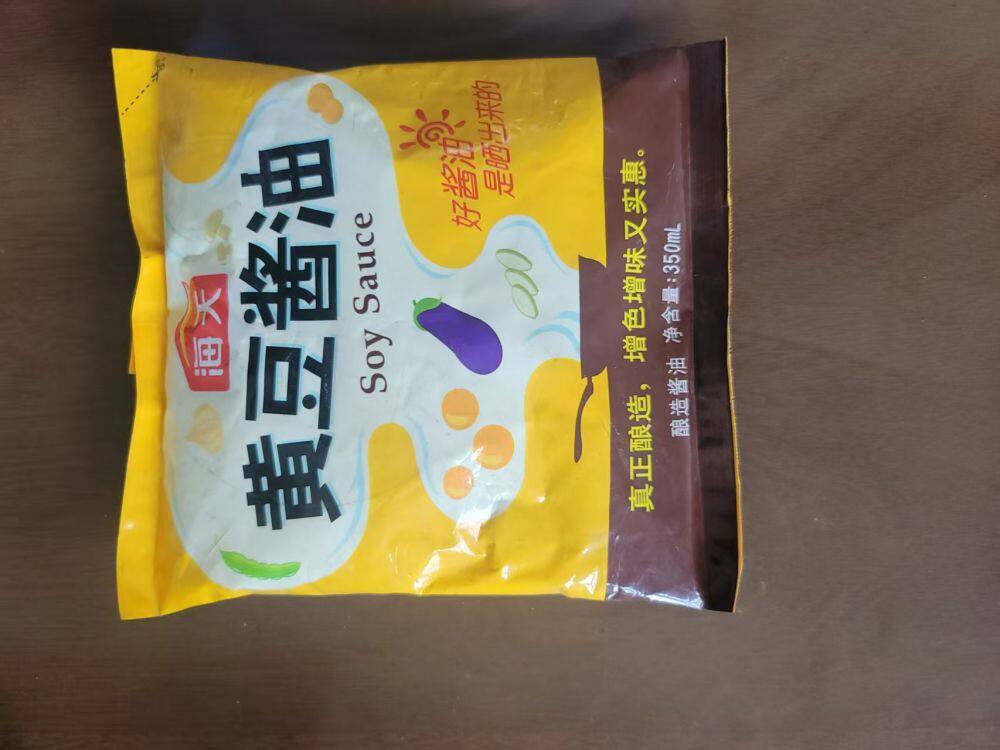

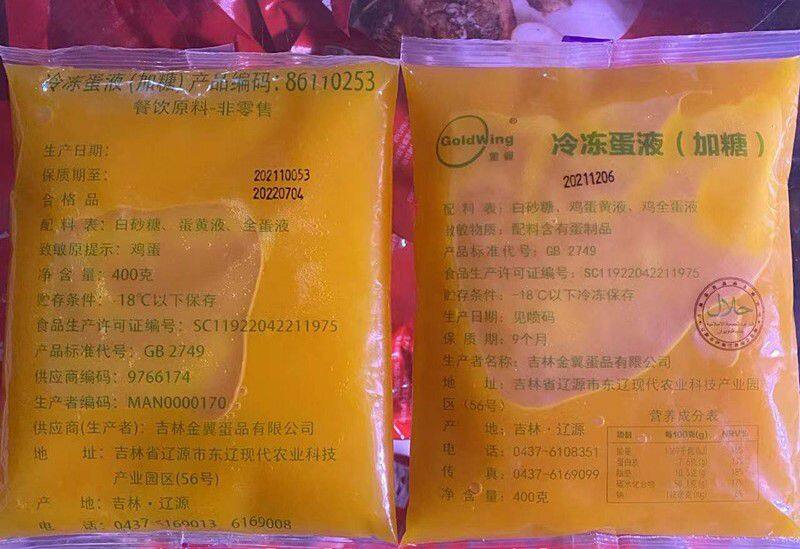

Butter, lard, soybean oil, palm oil and other animal and vegetable oils, various sauces such as bean paste, sweet bean sauce, and salad dressing, various soups like bone broth, cream, condensed milk, egg liquid, coconut milk, lubricating oil, liquid fertilizer, coatings, wood paint, detergents, fabric softeners, bleach, additives, pasteurized milk, dairy beverages, liquid condiments such as soy sauce and vinegar, fruit juice, drinking water, and plant-based protein beverages.

Technical Features

1.      Equipped with a Class 100 cleanroom laminar flow purification system on the top, ensuring the entire packaging process is completed in a purified environment.

2.      Modular design with stainless steel components, combining servo motors and pneumatic transmission systems.

3.      Intelligent control system featuring PLC and human-machine interface (HMI) touchscreen.

4.      High-intensity UV lamps for sterilizing packaging film.

5.      Supports CIP (Clean-in-Place) automatic circulation cleaning system.

6.      Packaging material: PE film.

7.      Fully automated processes including bag forming, filling, measuring, sealing/cutting, and date printing.

8.      The machine boasts high cleanliness, wide capacity adjustment range, fast operation speed, high measurement accuracy, strong stability, long service life, user-friendly operation, and flexible adjustments.

Technical Performance Parameters

Capacity       ：36~90 bags/min

Packing Volume：1200~100ml

Width of film：240~350mm

Accuracy：±0.5%

Air Pressure： 0.65MPa

Air consumption：1.0m³/min（0.8Mpa）

Power supply：AC220V±10% 50Hz

Maximum Power：4KW

Dimensions：1700(L)×1600(W)×3300(H)mm

Weight：700Kg
