Bag-in-Box Packaging Machine,Liquid Packaging Machine, Saide-SJYB-ⅢSC

5—25L Packaging Machine with Lid/Nozzle

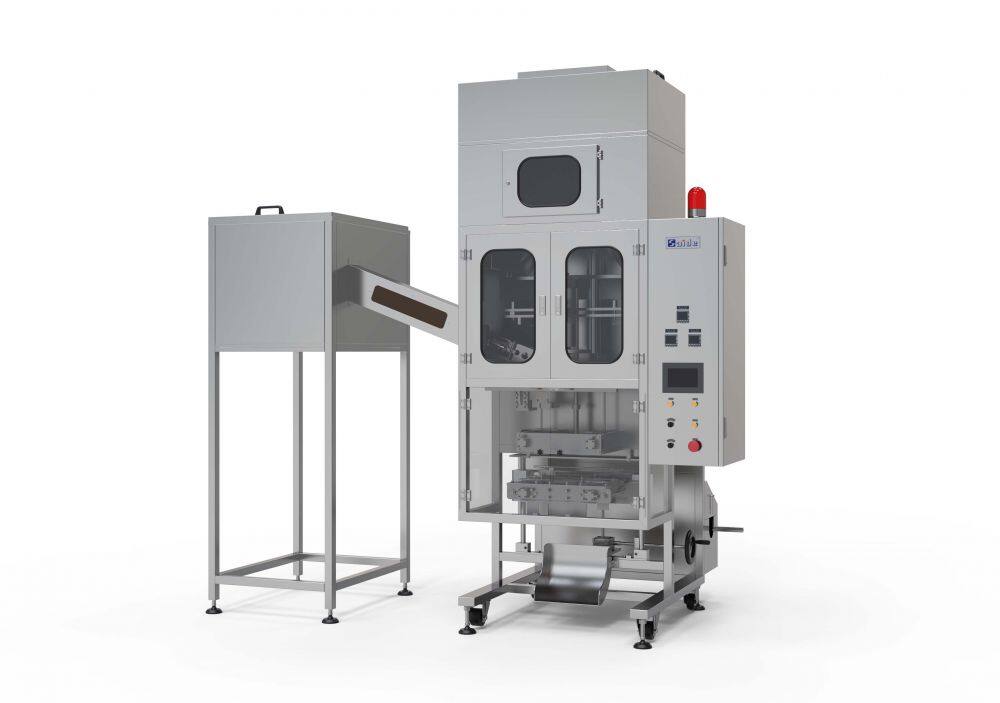

SJYB-ⅦG(L)/SJYB-ⅧG(L)

Class 100 Cleanroom Grade High-Capacity Automatic Liquid Packaging Machine with Lid/Nozzle

The packaging machine can be customized according to your requirements.

Main Applications

This machine is a high-cleanliness, large-capacity fully automatic packaging equipment designed for filling liquids and viscous materials with spout or screw caps, while meeting stringent requirements for packaging environment cleanliness. It is suitable for packaging the following products:

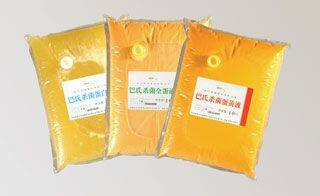

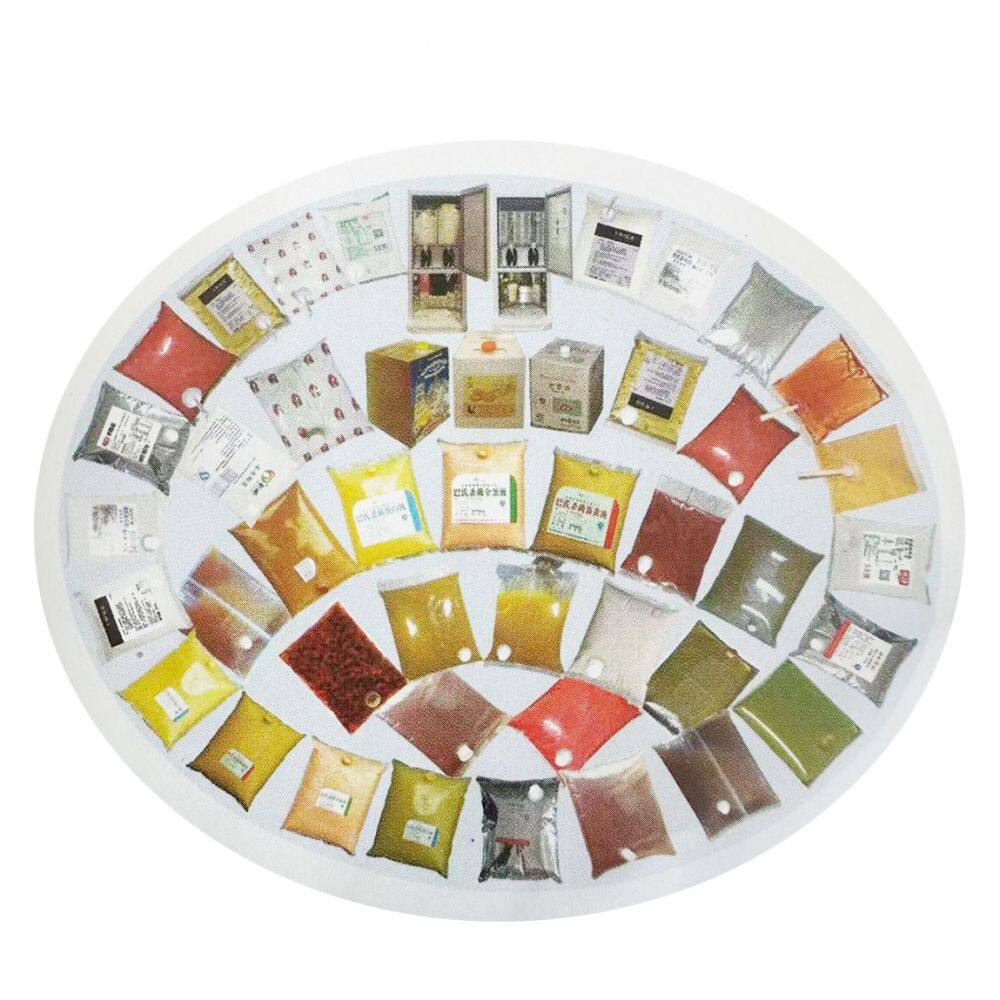

Butter, lard, salad oil, palm oil, and other animal and vegetable fats; various sauces such as bean paste, sweet bean sauce, and salad dressing; various soups including beef bone broth; liquid condiments like soy sauce, vinegar, and yellow wine; cream, condensed milk, egg liquid, coconut milk, cold noodle sauce, herbal tea, alcoholic beverages; lubricants, liquid fertilizers, coatings, wood paint, detergents, fabric softeners, bleach, additives; pasteurized milk, yogurt, dairy beverages, fruit juice, drinking water, plant-based protein drinks, and active probiotic cultures.

Technical Features

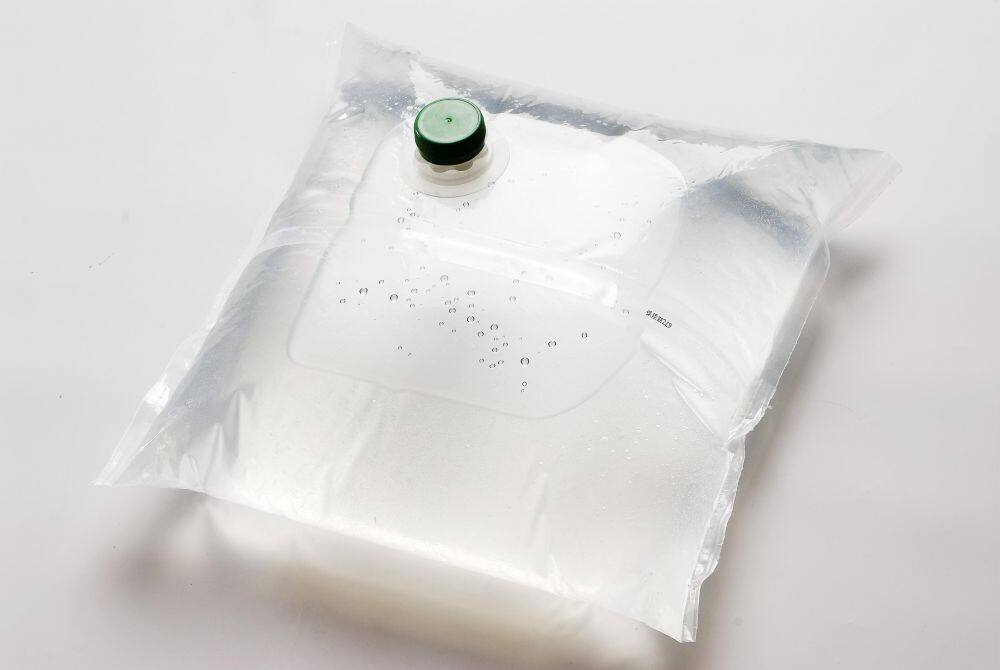

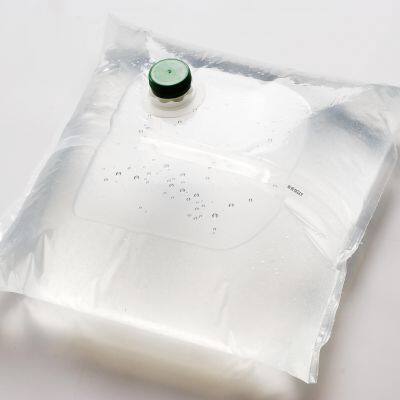

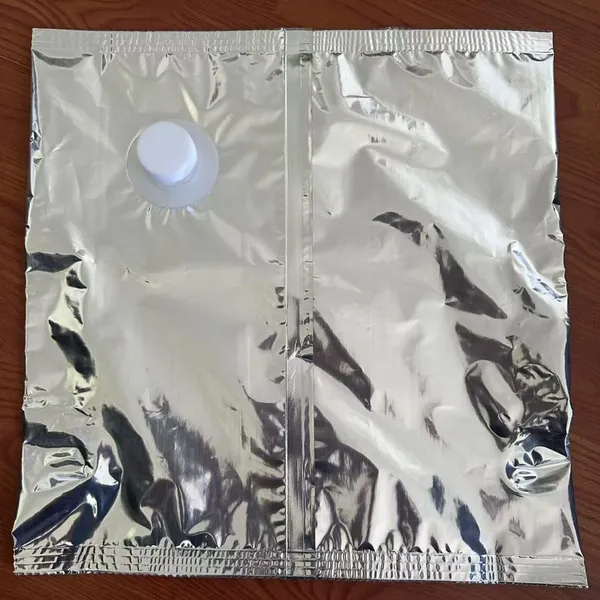

1.      Customizable packaging with either a faucet spout or screw cap option. The faucet-spout packaging can be embedded in a printed carton and dispensed from the lower side.

2.      Customizable capacity options: 5–12L for Type VII or 10–25L for Type VIII.

3.      Optional top-mounted Class 100 laminar flow purification device, enabling the entire packaging process to be completed in a purified environment.

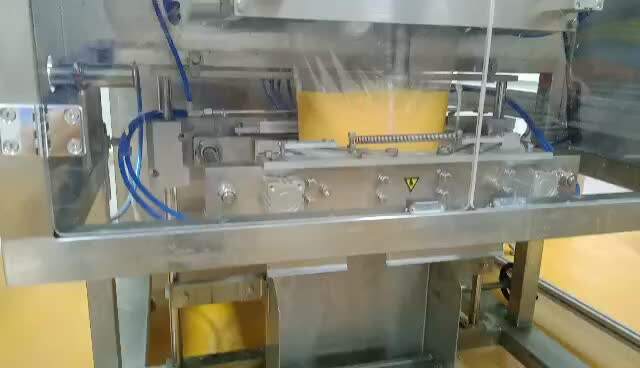

4.      Lift-type horizontal sealing device with stepless height adjustment for quick switching between different product specifications.

5.      Modular design with stainless steel components, combining servo motor and pneumatic drive systems.

6.      Intelligent control system featuring PLC and HMI touchscreen.

7.      High-intensity UV lamp for sterilizing packaging film.

8.      Supports CIP (Clean-in-Place) automatic circulation cleaning system.

9.      Multi-layer composite film packaging material with reinforced seal strength through multi-blade sealing design.

10.   Fully automated packaging process, including bag forming, spout/cap attachment, filling, measuring, sealing/cutting, and date printing.

11.   The machine offers high cleanliness, large adjustable capacity range, precise measurement, strong stability, long service life, user-friendly operation, and flexible adjustments.

Technical Performance Parameters

Capacity：3~8bags/min；2.5~6bags/min

Packing Volume：12~5L；25-10L

Width of film：730-970mm

Accuracy：±0.5%

Air Pressure： 0.65MPa

Air consumption：0.45m³/min（0.8Mpa）

Power supply：AC220V±10% 50Hz

Maximum Power：3.5KW

Dimensions：2920(L)×1750(W)×3200(H)mm

Weight：900Kg
