Help CenterJZNC-XIU01B
Related Products
Brand:YASKAWA

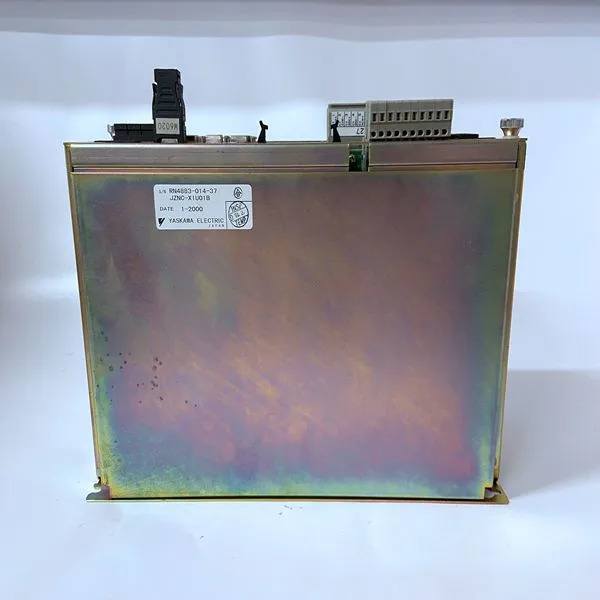

Type:JZNC-XIU01B
Origin:Japan
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
Input/Output Input/Output (I/O) signals are routed through backplane connector P2. A P2 adapter board or LCP2 adapter board routes the signals and grounds from connector P2 to an MVME712 series transition module (MVME712-12, MVME712-13, MVME712A, MVME712AM, or MVME712M). The transition module routes the signals to the appropriate configuration headers and industry-standard connectors. Refer to the MVME712-12, MVME712-13, MVME712A, MVME712AM, and MVME712B Transition Modules and LCP2 Adapter Board User’s Manual or the MVME712M Transition Module and P2 Adapter Board User’s Manual for more information. Notes When used with the MVME162, only serial ports 2 and 4 on the MVME712 are available for use. Serial ports 1 and 3 and the printer port are not connected to any MVME162 circuits and should not be used. An I/O device may be connected to serial port 1 (or 2) on the MVME162 or to serial port 2 (or 4) on the MVME712, but not both. (That is, if an I/O device is connected to MVME162 port 1, no other I/O device should be connected to MVME712 port 2; they are functionally the same port.)
VMEbus Interface The optional VMEchip2 ASIC is the VMEbus interface for the MVME162. (This option is a factory build and cannot be added in the field.) VMEchip2 features include: ❏ Two programmable 32-bit tick timers ❏ A programmable watchdog timer ❏ Programmable map decoders for the master and slave interfaces ❏ A VMEbus to/from local bus DMA controller ❏ A VMEbus to/from local bus non-DMA programmed access interface ❏ A VMEbus interrupter ❏ A VMEbus system controller ❏ A VMEbus interrupt handler ❏ A VMEbus requester Processor-to-VMEbus transfers can be D8, D16, or D32. VMEchip2 DMA transfers to the VMEbus, however, can be D16, D32, D16/BLT, D32/BLT, or D64/MBLT. No-VMEbus-Interface Option If desired, the MVME162 can function as an embedded controller without a VMEbus interface (i.e., without the optional VMEchip2). Contact your local Motorola sales office for ordering information. MCchip The Memory Controller (MCchip) ASIC provides four 32-bit programmable tick timers and an interface to the LAN chip, SCSI chip, serial port chip, BBRAM, PROM/Flash, SRAM, DRAM, reset control, watchdog timers, access timers, and interrupter logic.
Send Inquiry to This Supplier
