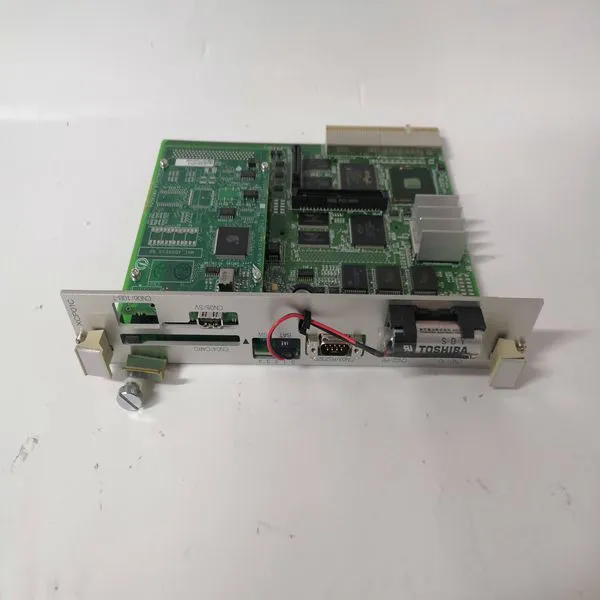

JANCD-XCP0101C-1

Brand:YASKAWA

Type:JANCD-XCP0101C-1

Origin:  the United States

Warranty: 365 days

Colour: new/used

Shipping method: Courier delivery

Module of PLC, DCS, ESD system card, the card is a vibration monitoring system, steam turbine control system module, the advantages of the gas generator spare parts brand: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts

Our main products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.

Load Sharing Input The 505E is capable of using an analog input to accept a load sharing signal from Woodward’s Digital Synchronizer and Load Control (DSLC™). This input in conjunction with the DSLC allows the control to isochronously loadshare with any other system using a DSLC. The 505E’s internal summing junction adds this signal with the speed/load PID’s reference. In addition to loadsharing, the DSLC input to the 505E can be used to synchronize the unit to either the plant bus or to the utility. Cascade Control The Cascade control can be configured to control any system process, related to or affected by turbine speed or load. Typically this controller is used as a turbine inlet or exhaust pressure controller. The Cascade control is a PID controller that compares a 4–20 mA process signal with the Cascade setpoint. The PID controller sets the speed controller setpoint until the process signal and the setpoint match. The Cascade control can also receive a programmable (optional) droop feedback signal to increase control loop stability. This is a direct feedback using a portion of the cascade control amplifier’s output. The Cascade setpoint is adjustable with raise or lower commands through the keypad on the front of the control, the remote contact inputs, or the communication links. Also, the setpoint can be directly set by entering the new setpoint from the keypad or through either Modbus communications link. In addition, a remote cascade setpoint analog input can be programmed to remotely position the cascade setpoint. Remote Cascade Setpoint One of the 4–20 mA inputs can be configured to remotely adjust the Cascade setpoint. The remote cascade setpoint input directly affects the 505E’s Cascade setpoint.

The maximum rate at which the remote input signal can change the Cascade setpoint is programmable and can be changed in the Run mode. When the remote setpoint is enabled, the Cascade setpoint will move at a much slower rate until the two settings are matched at which the setpoint will be allowed to move at the maximum rate. The remote cascade function can be enabled and disabled as required from the front-panel keypad, the remote contact inputs or either Modbus communication link.
