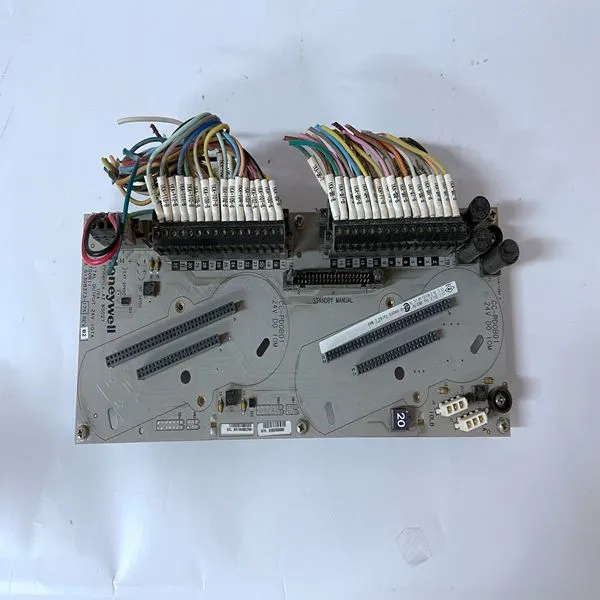

CC-TDOB11

Brand: HONEYWELL

Type:CC-TDOB11

Origin: the United States

Warranty: 365 days

Colour: new/used

Shipping method: Courier delivery

Module of PLC, DCS, ESD system card, the card is a vibration monitoring system, steam turbine control system module, the advantages of the gas generator spare parts brand: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts

Our main products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.

The VMEchip2 includes both a global and a local reset driver. When the VMEchip2 operates as the VMEbus system controller, the reset driver provides a global system reset by asserting the VMEbus signal SYSRESET*. A SYSRESET* may be generated by the RESET switch, a power-up reset, a watchdog timeout, or by a control bit in the LCSR in the VMEchip2. SYSRESET* remains asserted for at least 200 ms, as required by the VMEbus specification. Similarly, the VMEchip2 provides an input signal and a control bit to initiate a local reset operation. By setting a control bit, software can maintain a board in a reset state, disabling a faulty board from participating in normal system operation. The local reset driver is enabled even when the VMEchip2 is not the Operating Instructions 3-2 User’s Manual 3 system controller. A local reset may be generated by the RESET switch, a power-up reset, a watchdog timeout, a VMEbus SYSRESET*, or a control bit in the GCSR. Note For an MVME162 without the VMEbus option (i.e., with no VMEchip2), the LCSR control bit is not available to reset the module. In this case, the watchdog timer is allowed to time out to reset the MVME162. Front Panel Indicators (DS1 - DS4) There are eight LEDs on the MVME162 front panel: FAIL, STAT, RUN, SCON, LAN, FUSE, SCSI, and VME. ❏ FAIL LED (red). Lights when the BRDFAIL* signal line is active. Part of DS1. ❏ STAT LED (yellow). Driven by the MC68040 status lines on the MVME162. Lights when a halt condition from the processor is detected. Part of DS1.

 ❏ RUN LED (green). Lights when the local bus TIP* signal line is low. This indicates one of the local bus masters is executing a local bus cycle. Part of DS2. ❏ SCON LED (green). Lights when the VMEchip2 in the MVME162 is the VMEbus system controller. Part of DS2. ❏ LAN LED (green). Lights when the LAN chip is local bus master. Part of DS3. ❏ FUSE LED (green). Lights when power is available to the transceiver interface (the MVME162 supplies +12V power to the LAN Ethernet transceiver interface through a fuse). Part of DS3. ❏ SCSI LED (green). Lights when the SCSI chip is local bus master. Part of DS4. ❏ VME LED (green). Lights when the board is using the VMEbus (VMEbus AS* line asserted by the VMEchip2) or when the board is accessed by the VMEbus (VMEchip2 is the local bus master). Part of DS4.
