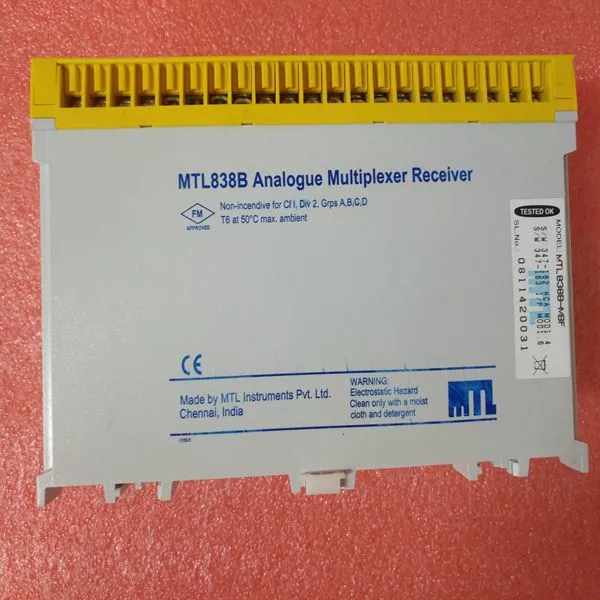

Help CenterMTL838B-MBF
Related Products
Brand:MTL
Type:MTL838B-MBF
Origin:the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
Offset Description 25 Read Block Count: Total number of read blocks transferred from the module to the processor. 26 Write Block Count: Total number of write blocks transferred from the processor to the module. 27 Parse Block Count: Total number of blocks successfully parsed that were received from the processor. 28 Event Command Block Count: Total number of Event Command blocks received from the processor. 29 Command Control Block Count: Total number of Command Control blocks received from the processor. 30 Error Block Count: Total number of block errors recognized by the module. 31 Port 1 Current Error: For a slave port, this field contains the value of the current error code returned. For a master port, this field contains the index of the currently executing command. 32 Port 1 Last Error: For a slave port, this field contains the value of the last error code returned. For a master port, this field contains the index of the command with an error. 33 Port 2 Current Error: For a slave port, this field contains the value of the current error code returned. For a master port, this field contains the index of the currently executing command. 34 Port 2 Last Error: For a slave port, this field contains the value of the last error code returned. For a master port, this field contains the index of the command with an error. 35 to (n-1) Spare Where n = 60, 120, or 240 depending on the Block Transfer Size parameter.
8.4.11 Set Port and Command Active Bits Block (9500) Block 9500: Set Port and command active bits This block enables and disables ports, as well as individual Master commands for a port. Block 9500: Request from Processor to Module Offset Description 0 Write Block ID: 9500 to set port and command enable/disable state 1 Port 1 active state: 0=disabled, 1=enabled 2 to 21 Command enable bits for Port 1 commands (0=disabled, 1=enabled) 22 Port 2 active state: 0=disabled, 1=enabled 23 to 42 Command enable bits for Port 2 commands (0=disabled, 1=enabled) 43 to (n-1) Spare Where n = 60, 120, or 240 depending on the Block Transfer Size parameter. Block 9500: Response from Module to Processor Offset Description 0 Read Block ID: 9500 requested by processor. 1 Write Block ID: To be used by the processor in its next Write block. 2 to (n-1) Spare
Send Inquiry to This Supplier
