Help Center6410-007-N-N-N
Related Products
Brand:PACIFIC

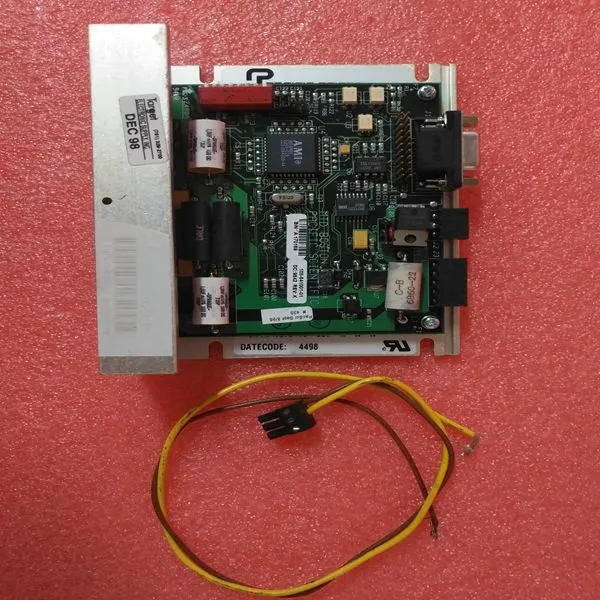

Type:6410-007-N-N-N
Origin:the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
8.4.12 Get Port and Command Active Bits Block (9501) Block 9501: Get Port and command active bits This block requests the enabled/disabled status of ports and Master commands. Block 9501: Request from Processor to Module Offset Description 0 Write Block ID: 9501 to get port and command enable/disable state 1 to (n-1) Spare Where n = 60, 120, or 240 depending on the Block Transfer Size parameter. Block 9501: Response from Module to Processor Offset Description 0 Read Block ID: 9501 requested by processor. 1 Write Block ID: To be used by the processor in its next Write block. 2 Port 1 active state: 0=disabled, 1=enabled 3 to 22 Command enable bits for Port 1 commands (0=disabled, 1=enabled) 23 Port 2 active state: 0=disabled, 1=enabled 24 to 43 Command enable bits for Port 2 commands (0=disabled, 1=enabled)
8.4.13 Pass-through Formatted Word Data Block for Functions 6 & 16 (9956) Block 9956: Pass-Through Formatted Block for Functions 6 and 16 with Word Data Block If one or more of the slave ports on the module are configured for formatted PassThrough mode, the module sends input image blocks with identification codes of 9956, 9957, 9958 or 9959 to the processor for each write command received. Any incoming Modbus Function 5, 6, 15 or 16 command is passed from the port to the processor using a block identification number that identifies the Function Code received in the incoming command. The MBS Add-On Instruction handles the receipt of all Modbus write functions and to respond to commands issued by the remote Modbus Master device. Note: Mutual exclusion on Pass-Through Block IDs 9956, 9957, 9958, and 9959 from both ports - If both ports are configured as slave ports, when both of the slave ports receive write commands with the same Function Code, which would need to use the same block identifier from the above list, the module will process the command from the port which first received the command and will return an Exception Code error code 6 (node is busy - retry command later error) from the other port that received the command last. The Master retries the command on the busy port after a short delay. This prevents Pass-Through blocks on both ports from overwriting each other. Block 9956: Request from Module to Processor Offset Description 0 Read Block ID: 9956 1 Write Block ID: 9956 2 Number of word registers in Modbus data set 3 Starting address for Modbus data set 4 to (n+1) Data (Length in words = n - 2) Where n = 60, 120, or 240 depending on the Block Transfer Size parameter. The ladder logic is responsible for parsing and copying the received message and performing the proper control operation as expected by the Master device. The processor must then respond to the Pass-Through control block with an output image write block with the following format. This informs the module that the command has been processed and can be cleared from the Pass-Through queue. Block 9956: Response from Processor to Module Offset Description 0 Write Block ID: 9956 1 to n Spare (Length in words = n - 2)
Send Inquiry to This Supplier
