Help CenterZMI-2002 8020-0211-1-J
Related Products
Brand: ZYGO

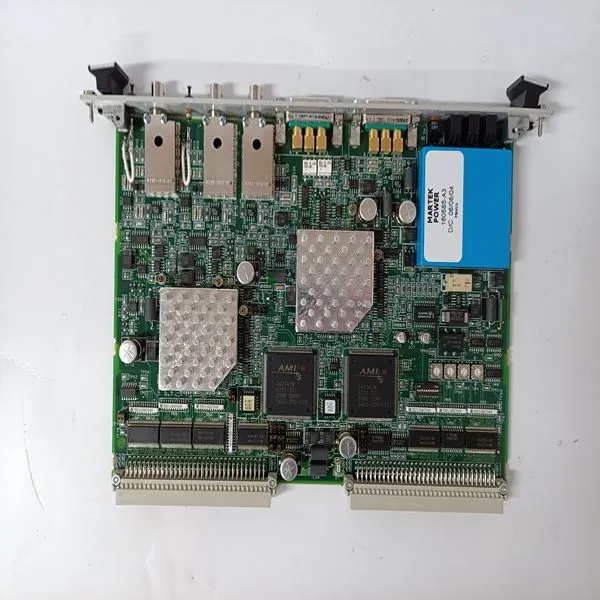

Type:ZMI-2002 8020-0211-1-J
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Module of PLC, DCS, ESD system card, the card is a vibration monitoring system, steam turbine control system module, the advantages of the gas generator spare parts brand: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
Our main products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
SCSI Interface The MVME162 supports mass storage subsystems through the industrystandard SCSI bus. These subsystems may include hard and floppy disk drives, streaming tape drives, and other mass storage devices. The SCSI interface is implemented using the NCR 53C710 SCSI I/O controller. Support functions for the NCR 53C710 are provided by the MCchip. Refer to the NCR 53C710 user’s guide and to the MVME162 Embedded Controller Programmer’s Reference Guide for detailed programming information. Refer to the MVME712-12, MVME712-13, MVME712A, MVME712AM, and MVME712B Transition Modules and LCP2 Adapter Board User’s Manual or to the MVME712M Transition Module and P2 Adapter Board User’s Manual for the pin assignments of the transition module SCSI connectors. SCSI Termination The individual configuring the system must ensure that the SCSI bus is properly terminated at both ends. The MVME162 provides sockets for SCSI bus terminators on the P2 adapter board or the LCP2 adapter board. If the SCSI bus ends at the adapter board, then termination resistors must be installed on the adapter board. +5V power to the SCSI bus TERMPWR signal and termination resistors is provided through a fuse located on the adapter board. Local Resources The MVME162 includes many resources for the local processor. These include tick timers, software programmable hardware interrupts, watchdog timer, and local bus timeout.
Programmable Tick Timers Four 32-bit programmable tick timers with 1 µs resolution are provided in the MCchip and two 32-bit programmable tick timers are provided in the optional VMEchip2. The tick timers can be programmed to generate periodic interrupts to the processor. Refer to the MCchip and VMEchip2 descriptions in the MVME162 Embedded Controller Programmer’s Reference Guide for detailed programming information. Watchdog Timer A watchdog timer is provided in both the MCchip and the optional VMEchip2. The timers operate independently but in parallel. When the watchdog timers are enabled, they must be reset by software within the programmed time or they will time out. The watchdog timers can be programmed to generate a SYSRESET signal, local reset signal, or board fail signal if they time out. Refer to the VMEchip2 and MCchip descriptions in the MVME162 Embedded Controller Programmer’s Reference Guide for detailed programming information. Software-Programmable Hardware Interrupts Eight software-programmable hardware interrupts are provided by the VMEchip2. These interrupts allow software to create a hardware interrupt. Refer to the VMEchip2 desciption in the MVME162 Embedded Controller Programmer’s Reference Guide for detailed programming information.
