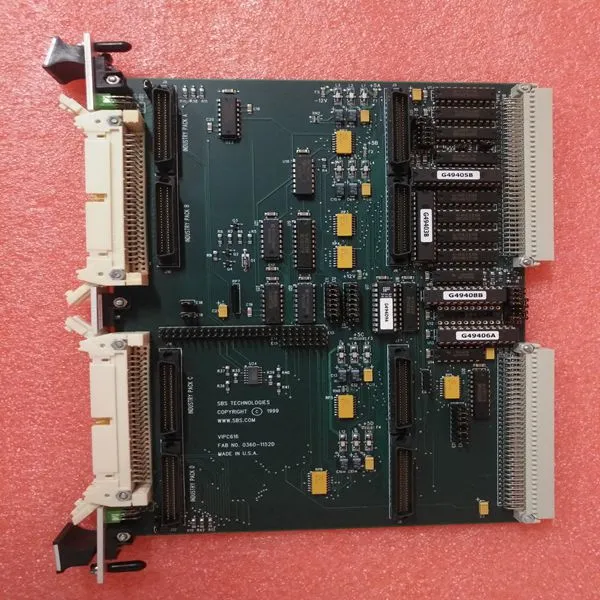

VME-IP-Carrier VIPC616 91611524

Brand:SBS

Type:VME-IP-Carrier VIPC616 91611524

Origin:the United States

Warranty: 365 days

Colour: new/used

Shipping method: Courier delivery

Products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.

Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,

Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts

8.4.21 Cold-boot Control Block (9999) Block 9999: Cold-boot Control Block If the CompactLogix or MicroLogix 1500-LRP processor sends a block number 9999, the firmware performs a cold-boot operation. The firmware reloads the configuration file from the processor to the module and resets all MBS memory, error and status data. Block 9999: Request from Processor to Module Offset Description 0 Write Block ID: 9999 1 to (n-1) Spare Where n = 60, 120, or 240 depending on the Block Transfer Size parameter.

Ethernet Port Connection 8.5.1 Ethernet Cable Specifications The recommended cable is Category 5 or better. A Category 5 cable has four twisted pairs of wires, which are color-coded and cannot be swapped. The module uses only two of the four pairs. The Ethernet port or ports on the module are Auto-Sensing. You can use either a standard Ethernet straight-through cable or a crossover cable when connecting the module to an Ethernet hub, a 10/100 Base-T Ethernet switch, or directly to a PC. The module detects the cable type and uses the appropriate pins to send and receive Ethernet signals. Some hubs have one input that can accept either a straight-through or crossover cable, depending on a switch position. In this case, you must ensure that the switch position and cable type agree. Refer to Ethernet Cable Configuration (page 153) for a diagram of how to configure Ethernet cable. Ethernet Cable Configuration

Ethernet Performance Ethernet performance in the MVI69E-MBS module can be affected in the following way:  Accessing the web interface (refreshing the page, downloading files, and so on) may affect performance  Also, high Ethernet traffic may impact MBS performance, so consider one of these options: o Use managed switches to reduce traffic coming to module port o Use CIPconnect for these applications and disconnect the module Ethernet port from the network 8.6 Modbus Application Port Connection The module supports RS-232, RS-422, and RS-485 wiring to remote devices. 8.6.1 RS-232 Wiring When the RS-232 interface is selected, the use of hardware handshaking (control and monitoring of modem signal lines) is user definable. If no hardware handshaking is used, here are the cable pin-outs to connect to the port.
