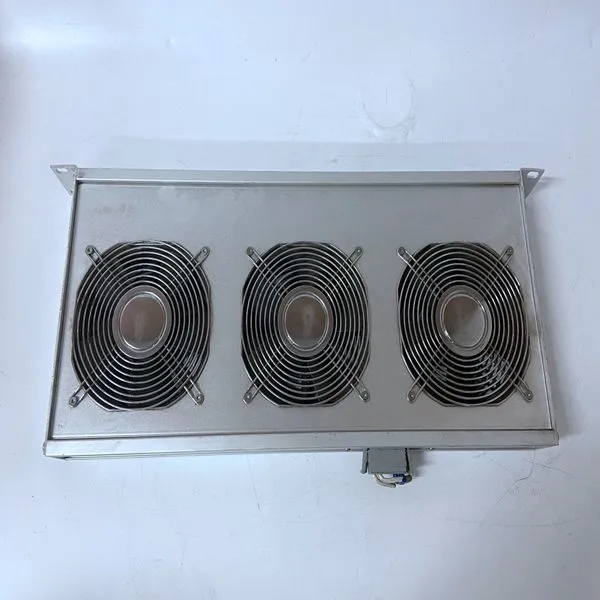

Help CenterHIMA K9203A
Related Products
Brand:HIMA
Type:K9203A
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
PM851A/PM856A/PM860A and TP830 – Processor Unit Key Features • MPC860 Microprocessor running at 48 MHz. • For PM851A, 12 MB RAM with internal or external battery back-up facility. • For PM856A, 16 MB RAM with internal or external battery back-up facility. • For PM860A, 16 MB RAM with internal or external battery back-up facility. • 12 x S800 I/O units can be connected to the electrical ModuleBus. • Four on-board communication ports: – CN1 + CN2, Ethernet ports (IEEE 802.3, 10BaseT) – COM3, serial port (RS-232C) with modem support – COM4, serial port (RS-232C) for service tool • Basic communication is extendable by using additional communication interface units. • Compact Flash interface which supports loading of application and cold retain data storage. The data for PM851A is the same as for PM856A, except for the RAM and that there is no support for CN2 in PM851A. The data for PM856A is the same as for PM860A except for performance of application program execution, see Performance Data on page 244.
Technical data for PM851A/PM856A/PM860A and TP830 is described in Table 52. Table 52. PM851A/PM856A/PM860A and TP830 – Technical data Item Value Memory • 2 MB flash PROM (firmware storage). • 12 MB of SDRAM for PM851A. • 16 MB of SDRAM for PM856A and PM860A. Power Dissipation 5 W typical 10 W typical (incl. full supply to ModuleBus and CEXBus, see Appendix B, Power Consumption). Current Consumption 180 mA typical (300 mA max.) (excl. supply of ModuleBus and CEX-Bus, see Appendix B, Power Consumption). Power Input Connector Four pin, screw connector L+, L–, SA and SB. Power Supply Requirements Inputs designated L+ and L– 24 V nominal, variation between 19.2V DC and 30V DC. Redundant Power Supply Status Inputs Inputs designated SA, SB • Max input voltage 30 V • Min. input voltage for high level 15 V • Max input voltage for low level 8 V These inputs are status inputs. The threshold levels are logical “0” or “1” input limits, not power fail limits. Power Reservoir The processor unit has an internal 5ms power reservoir, sufficient for the CPU to make a controlled power down. Protection Rating IP20 according to EN60529, IEC 529.
Send Inquiry to This Supplier
