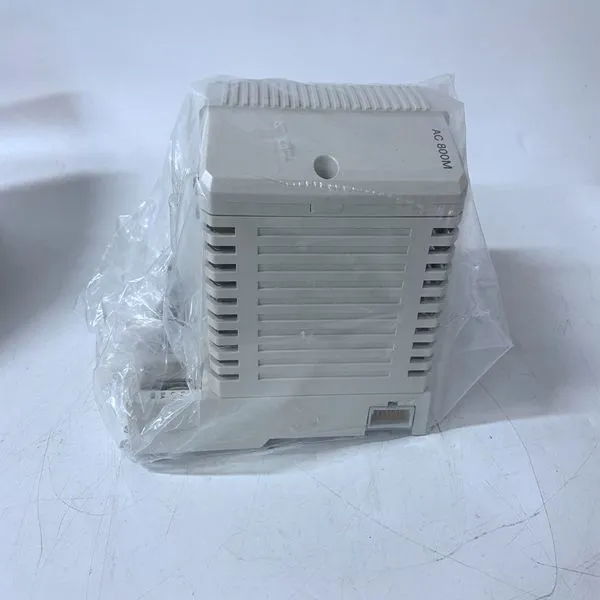

Help CenterPM864AK01 3BSE018161R1
Related Products
Brand: ABB
Type:PM864AK01 3BSE018161R1
Origin: the Swiss
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
Weight • 1100 g (2.4 lb) (package PM851AK01 with PM851A, TP830 and bus terminations). • 1100 g (2.4 lb) (package PM856AK01 with PM856A, TP830 and bus terminations). • 1100 g (2.4 lb) (package PM860AK01 with PM860A, TP830 and bus terminations). Dimensions W 119 x H 186 x D 135 mm (4.7 x 7.3 x 5.3 in.) Width is measured along the DIN-rail, depth from the wall, and height vertically, including lock mechanism. Table 53. PM851A/PM856A/PM860A and TP830 Interfaces – Technical data Item Value CN1 and CN2 Ethernet Communication(1) Communication speed 10 Mbit/s (half duplex) Signal levels IEEE802.3, 10Base-T Connector RJ45 COM3 Serial Communication Communication speed Selectable in steps from 75 to 19200 baud. 75, 110, 134.5, 150, 300, 600, 1200, 1800, 2000, 2400, 9600, 19200 baud. Protocol specific restrictions apply. Signal levels RS-232C Connector RJ45 Modem support Yes
) Only (CN1) Ethernet Communication is supported for PM851A. (2) Maximum one S800 I/O cluster is possible on the optical ModuleBus with PM851A. (3) Maximum one communication interface on the CEX-bus is possible with PM851A. The figures given in Table 54 are valid if the batteries are installed after a normal CPU power-up, allowing for the memory back-up function to be activated.
Electro-magnetic Compatibility and Electrical Safety PM851A/PM856A/PM860A/TP830 meets the requirements specified in EMC Directive 89/336/EEC. For more information regarding EMC and safety, see Appendix D, Directive Considerations. LED Indicators See Table 20 on page 179.
