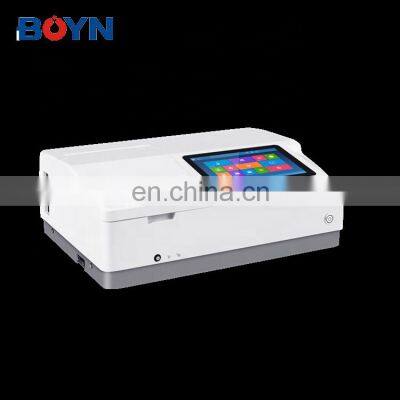

BNUV-D860 BNUV-D870 BNUV-D880 Double Beam Scanning UV Visible Spectrophotometer

BNUV-D860 BNUV-D870 BNUV-D880 Double Beam Scanning UV Visible Spectrophotometer thumbnail-1
BNUV-D860 BNUV-D870 BNUV-D880 Double Beam Scanning UV Visible Spectrophotometer thumbnail-2
BNUV-D860 BNUV-D870 BNUV-D880 Double Beam Scanning UV Visible Spectrophotometer photo-1
BNUV-D860 BNUV-D870 BNUV-D880 Double Beam Scanning UV Visible Spectrophotometer photo-2
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
1994
Annual Export Value:
US$5 Million - US$10 Million
Contact Supplier Request Quote Chat Now
Hangzhou Boyn Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description
Product features: Double Beam Design
Built-in computer with Windows operating system
10.1 inch high resolution capacitive Color Touch Screen
Completely followed by GLP/GMP, Data traceable
Dismountable lamp room cover, can change lamp easily
The front baffle of the sample room can be dismantled freely
Special leak hole in the sample room
Antirust treatment cell holder.
Product Paramenters
Model
BNUV-D860
BNUV-D870
BNUV-D880
Optical system
Double Beam，1200 l/mm grating
Wavelength range
190~1100 nm
Spectral bandwidth
1.8 nm
1 nm
0.5/1/2/4/5nm
Auto Adjustable
Wavelength accuracy
±0.3 nm
Wavelength repeatability
≤0.1 nm
Wavelength resolution
0.1 nm
Wavelength swing speed
10000 nm/min
Wavelength scanning speed
20 ~ 3200 nm/min
Photometric range
0 to 400%T, -4 to 4A, 0 to 9999C
Photometric accuracy
±0.3%T or ±0.004A @ 1A
Photometric repeatability
±0.001 A（0~0.5 A），±0.002 A（0.5~1 A）, ±0.15 %T（0~100 %T）
Photometric Noise
≤0.0002 A @ 0 A，500 nm，≤0.0004 A @ 1 A，500 nm，≤0.0008 A @ 2 A，500 nm
Photometric Stability
≤0.0005A/h (500nm, 1 hours after preheating)
Stray light
≤0.03 %T@ 220nm & 360nm
Baseline Flatness
±0.0005A
Function
Photometry, Multi Wavelength, Kinetics, Time Scanning, Quantitation,
Spectrum Scanning, DNA/Protein
Light source
Tungsten lamp, Deuterium lamp
Detector
Silicon photodiode
Standard Sample holder
10 mm single cell holder
Display
10.1'' inch TFT color touch screen
Storage
64GB
Interface
USB-A × 1 (USB memory/USB printer), USB-B × 1 (computer),HDMI,VGA, Ethernet
PC software
YES
Language
10 Languages, Can Be Switched (English, German, French, Spanish, Portuguese,
Italian, Russian, Simplified Chinese, Japanese, Korean)
Power supply
AC 100~240 V，50/60 Hz，140W
Size
580×420×235mm
Weight
17 kg
18 kg
