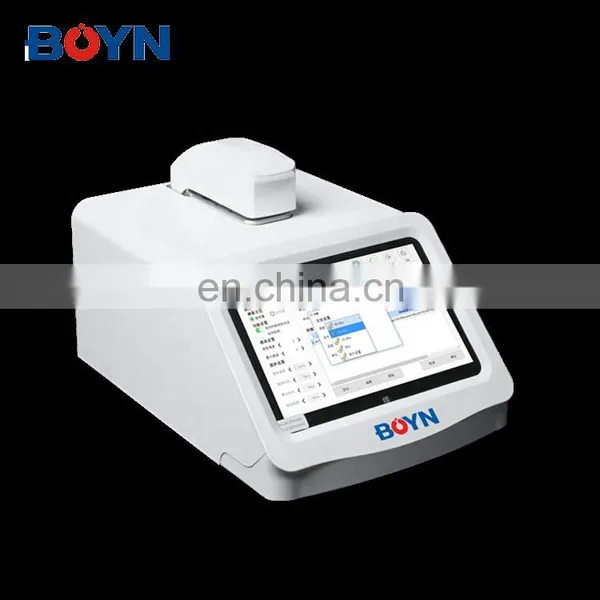

BNMS-N500 Series Micro Spectrophotometer
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
1994
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BNMS-N600 Micro Spectrophotometer With 0.05mm Optical Path LengthNegotiableMOQ: 1 -
BNMS-N900 Nano Spectrophotometer With UV LED Light SourceNegotiableMOQ: 1
-
BNNIR-A430 NIR SpectrophotometerNegotiableMOQ: 1
-
BNVIS-S130 325-1000nm Single Beam Visible SpectrophotometerNegotiableMOQ: 1
-
BNVIS-S140 BNVIS-S150 Single Beam Visible SpectrophotometerNegotiableMOQ: 1
Product Description
Product features:
Light source: long life pulsed xenon flflash lamp
Detection time: less than 5s
Data can be transferred via USB port
No need to warm up, boot at any time
Save data permanently, you can export or delete it at any time
Built-in WIFI for remote assistance Unlimited print test results
Built-in fifiber to avoid fifiber breakage caused by external force collision, resulting in
chaotic measurement results
The Measurement results are automatically saved to spreadsheet mode
32GB hard drive save history data function
High-defifinition 7inch touch-screen to directly display the data
Win10 operating system, convenient and quick
Detection time: less than 5s
Data can be transferred via USB port
No need to warm up, boot at any time
Save data permanently, you can export or delete it at any time
Built-in WIFI for remote assistance Unlimited print test results
Built-in fifiber to avoid fifiber breakage caused by external force collision, resulting in
chaotic measurement results
The Measurement results are automatically saved to spreadsheet mode
32GB hard drive save history data function
High-defifinition 7inch touch-screen to directly display the data
Win10 operating system, convenient and quick
Product Paramenters
Model |
BNMS-N500 |
BNMS-N510 |
BNMS-N520 |
BNMS-N530 |
||||
Wavelength Range |
190-850nm |
190-850nm |
190-850nm |
190-850nm |
||||
Minimum Sample Volume |
0.3-2.0μl |
0.3-2.0μl |
0.3-2.0μl |
0.3-2.0μl |
||||
Light Path |
0.02mm |
0.02mm |
0.02mm |
0.02mm |
||||
0.05mm |
0.05mm |
0.05mm |
0.05mm |
|||||
0.1mm |
0.1mm |
0.1mm |
0.1mm |
|||||
0.5mm |
0.5mm |
0.5mm |
0.5mm |
|||||
1.0mm |
1.0mm |
1.0mm |
1.0mm |
|||||
Light Source |
Xenon flash lamp |
Xenon flash lamp |
Xenon flash lamp |
Xenon flash lamp |
||||
Detector Type |
2048(COMS)-Linear CCD array |
2048(COMS)-Linear CCD array |
2048(COMS)-Linear CCD array |
2048(COMS)-Linear CCD array |
||||
Wavelength Accuracy |
±1nm |
±1nm |
±1nm |
±1nm |
||||
Wavelength Resolution |
≤2nm (FWHM at Hg546nm) |
≤2nm (FWHM at Hg546nm) |
≤2nm (FWHM at Hg546nm) |
≤2nm (FWHM at Hg546nm) |
||||
Wavelength Repeatabbility |
±0.5nm |
±0.5nm |
±0.5nm |
±0.5nm |
||||
Absorbance Precision |
0.002Abs |
0.002Abs |
0.002Abs |
0.002Abs |
||||
Absorbance Accuracy |
1% (0.76Abs at 350nm) |
1% (0.76Abs at 350nm) |
1% (0.76Abs at 350nm) |
1% (0.76Abs at 350nm) |
||||
Absorbance Range |
0.002 - 750A (equivalent to 10mm optical path) |
0.002 - 750A (equivalent to 10mm optical path) |
0.002 - 750A (equivalent to 10mm optical path) |
0.002 - 750A (equivalent to 10mm optical path) |
||||
Nucleic Acid Measurement Range |
2-37500ng/ul (dsDNA) |
2-37500ng/ul (dsDNA) |
2-37500ng/ul (dsDNA) |
2-37500ng/ul (dsDNA) |
||||
Detects Protein Measurement Range |
0.01-1120mg/ml (BSA) |
0.01-1120mg/ml (BSA) |
0.01-1120mg/ml (BSA) |
0.01-1120mg/ml (BSA) |
||||
Measurement Time |
<5S |
<5S |
<5S |
<5S |
||||
Output Interface |
2×USB |
2×USB |
2×USB |
2×USB |
||||
Sample Pedestal Materia |
Stainless steel and Quartz fiber |
Stainless steel and Quartz fiber |
Stainless steel and Quartz fiber |
Stainless steel and Quartz fiber |
||||
Display |
7 inch touch screen |
7 inch touch screen |
7 inch touch screen |
7 inch touch screen |
||||
Operating Voltage |
12V DC |
12V DC |
12V DC |
12V DC |
||||
Dimension (W x D x H) |
200 x 300×200mm |
200 x 300×200mm |
200 x 300×200mm |
200 x 300×200mm |
||||
Weight |
3.5kg |
3.5kg |
3.5kg |
3.5kg |
||||
Operating System |
Win10 |
Win10 |
Win10 |
Win10 |
||||
Cuvette model Measurement |
||||||||
Optical Path of Cuvette |
N/A |
1mm,2mm,5mm,10mm |
1mm,2mm,5mm,10mm |
1mm,2mm,5mm,10mm |
||||
Temperature Range |
N/A |
N/A |
RT-42℃ |
4℃-42℃ |
||||
Minimum Sample Volume of Cuvette |
N/A |
50ul |
50ul |
50ul |
||||
Minimum height of sample in cuvette |
N/A |
5mm |
5mm |
5mm |
||||
