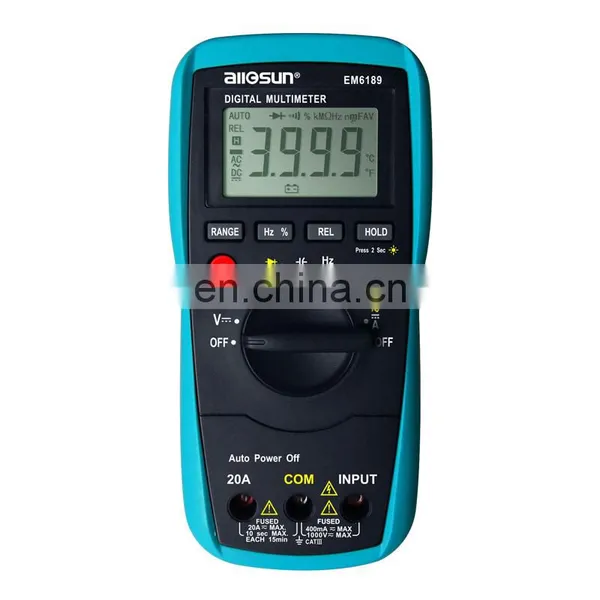

Help CenterAllosun EM6189 Digital Multimeter
Related Products
-
Allosun EM6182 Digital MultimeterNegotiableMOQ: 1 -
Hot Sale Allosun EM3082 Autorange Mini Digital Multi Meter 3 1/2 1999 AC/DC Ammeter Voltmeter Ohm Portable Voltage MeterNegotiableMOQ: 1
-
Allosun EA103 Spark Plug Signal Pick Up Cable Signal Obtain Cable Automotive Multimeter AccessoriesNegotiableMOQ: 1
-
ALLOSUN EM580A Megohm 4000M Insulation Multimeter Digital Multimeter Autorange Meter Voltage DC/AC Current Resistance MeterNegotiableMOQ: 1
-
All-sun EM6000 Professional True RMS Digital Multimeter 3 5/6-digit LCD Display Multimeter Max/min Value Recording TesterNegotiableMOQ: 1
GENERAL SPECIFICATION
Fuse Protection for " INPUT " terminal Inputs: F 440mA/1000V fuse
Fuse Protection for " 20A" terminal Inputs: F 20A/1000V fuse
Display: 3 3/4 digit LCD, with a max. reading of 3999
Overrange Indication: " OL " shown on the display.
Negative Polarity Indication: Negative sign " - " shown on the display automatically
Sampling Rate: About 2 to 3 times/sec
Operating Environment: Temperature: 0℃ to 40℃
Relative Humidity: < 75%
Temperature Coefficient:0.2 x (specified accuracy)/℃ (< 18℃ or > 28℃)
Storage Environment: Temperature: -10℃ to 50℃
Relative Humidity: < 85%RH
Operating Altitude: 0 to 2000 meters
Battery: 9V battery, 6F22 or equivalent, 1 piece
Low Battery Indication: " " shown on the display
Size: 184 x 89 x 62mm
Weight: About 436g (including battery and holster)
SPECIFICATION
Accuracy is specified for a period of 1 year after calibration at 18℃ to 28℃, with relative humidity up to 75%.
Accuracy specifications take the form of: ± [(% of Reading) + (Number of Least Significant Digits)]
DC Voltage
Range |
Resolution |
Accuracy |
400.0mV |
0.1mV |
± (0.8% + 5) |
4.000V |
1mV |
± (0.5% + 5) |
40.00V |
10mV |
|
400.0V |
0.1V |
|
1000V |
1V |
± (1.0% + 5) |
AC Voltage
Range |
Resolution |
Accuracy |
4.000V |
1mV |
± (0.8% + 5) |
40.00V |
10mV |
± (1.0% + 5) |
400.0V |
0.1V |
|
1000V |
1V |
± (1.2% + 5) |
Range |
Resolution |
Accuracy |
400.0μ A |
0.1μ A |
± (1.0% + 7) |
4000μ A |
1.0μ A |
|
40.00mA |
0.01mA |
|
400.0mA |
0.1mA |
|
4.000A |
1mA |
± (1.5% + 7) |
20.00A |
10mA |
Range |
Resolution |
Accuracy |
400.0μ A |
0.1μ A |
± (1.8% + 10) |
4000μ A |
1.0μ A |
|
40.00mA |
0.01mA |
|
400.0mA |
0.1mA |
|
4.000A |
1mA |
± (2.5% + 10) |
20.00A |
10mA |
Resistance
Range |
Resolution |
Accuracy |
400.0Ω |
0.1Ω |
± (1.0% + 5) |
4.000kΩ |
1Ω |
± (0.5% + 5) |
40.00kΩ |
10Ω |
|
400.0kΩ |
100Ω |
|
4.000MΩ |
1kΩ |
± (1.5% + 5) |
40.00MΩ |
10kΩ |
± (3.0% + 10) |
Capacitance
Range |
Resolution |
Accuracy |
40.00nF |
10pF |
± (3.5% + 20) |
400.0nF |
100pF |
± (2.5% + 5) |
4.000μF |
1nF |
± (3.5% + 5) |
40.00μF |
10nF |
± (4.0% + 5) |
400.0μF |
100nF |
± (5.0% + 5) |
1000μF |
1μF |
not specified |
