Specifications

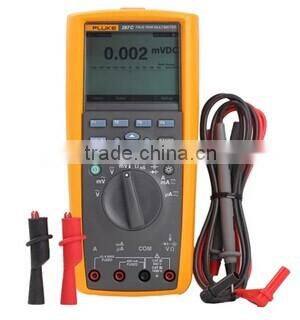

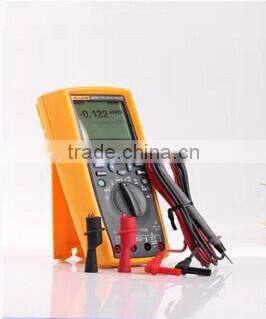

low price FLUKE digital multimeter1 small volume
2 easy Operation
Low price FLUKE digital multimeter
Technical data:
1 Functions Maximum Max. resolution,accuracy:
Voltage DC 1000V 1μV ;±(0.025%+5)
Voltage AC 1000V 1μV;±(0.4%+40)
Current DC 10A 0.01μA;±(0.15%+2)
Current AC 10A 0.01μA;±(0.7%+5)
Resistance 500MΩ 0.01Ω;±(0.05%+2)
Conductance 500nS 0.01nS;±(1.0%+10)
Capacitance 50000μF 0.001nF;±(1.0%+5)
Frequency 1MHz 0.01Hz;±(0.005%+1)
Temperature -200°C/+1350°C 0.1°C;±(1%+1°C)
dBm and dBV -52/+60dB 0.01dB; ± 0.1 dB
2 Size 222* 102*60 mm
3 Weight: 870g
4 Storage temperature: -40 ° C to +60 ° C
5 Relative Humidity
0% - 90% (0 ° C to 37 ° C)
0% - 65% (0 ° C to 45 ° C)
0% -45% (45 ° C to 55 ° C)
6 Electromagnetic compatibility: EMC EN6 1326-1
7 Vibration: Random vibration to MIL-PRF-28800f standard, two instruments
8 Shock: 1 meter drop, in line with IEC / EN 61010-1 2nd Edition
Features:
• with the features, precision and accuracy to troubleshoot power distribution, industrial automation, process controls and electronic and electromechanical equipment in the field or on the bench.
•built-in data logger to record measurements unattended without a PC. Recorded data
•Digital display 50000 counts (default/selectable)
•Multiple display with large digits and backlight, updates 4 times per second
•Analog bargraph segments, updates 40 times per second
•Min-Max-Average recording with relative time stamp
•Fast Min-Max recording
•AutoHOLD® and Relative modes for reference and offset
•Audible continuity and diode test
•Duty cycle and pulse width measurements
•PC interface for data exchange and closed case calibration
•Memory for storing up to 3 days of continues stand-alone logging
•Readings memory (memory locations)
•Easy battery and fuse exchange without opening the complete case
If you need this product,please visit the websit
