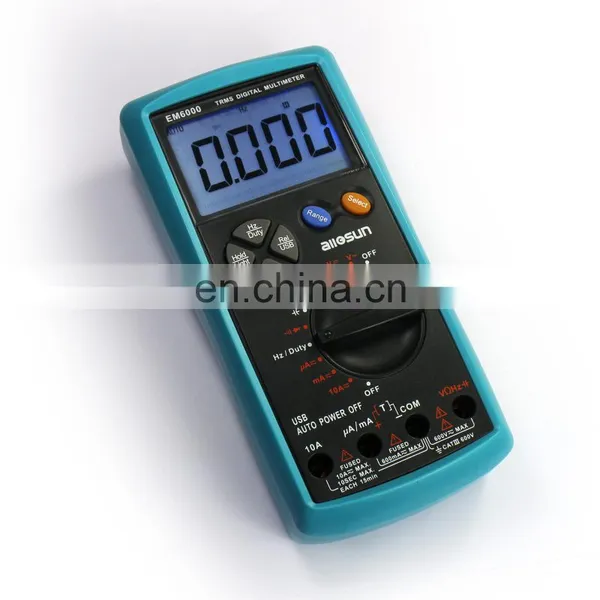

Help CenterAll-sun EM6000 Professional True RMS Digital Multimeter 3 5/6-digit LCD Display Multimeter Max/min Value Recording Tester
Related Products
-
Allosun EM3642 Digital Cable Tester 2 in 1 Wire Tracker and Multi Meter Safety CATII 250V Electric Volt Amp Ohm MeterNegotiableMOQ: 1 -
Allosun EM5510 Digital Multimeter 5 in 1 Sound Level Humidity Luminosity Autoranging Multimeter Temperature TesterNegotiableMOQ: 1
-
Allosun EM3212 Portable Digital Multimeter Pen Type Volt Ohm Ammeter Auto Range Multi-function Electric Test MeterNegotiableMOQ: 1
-
EM666 Multimeter Pocket Size Portable Analog Pointer DisplayNegotiableMOQ: 1
-
EM130USB Pro Digital Automotive Multimeter Handheld RPM Dwell Angle Test Pulse Width TestNegotiableMOQ: 1

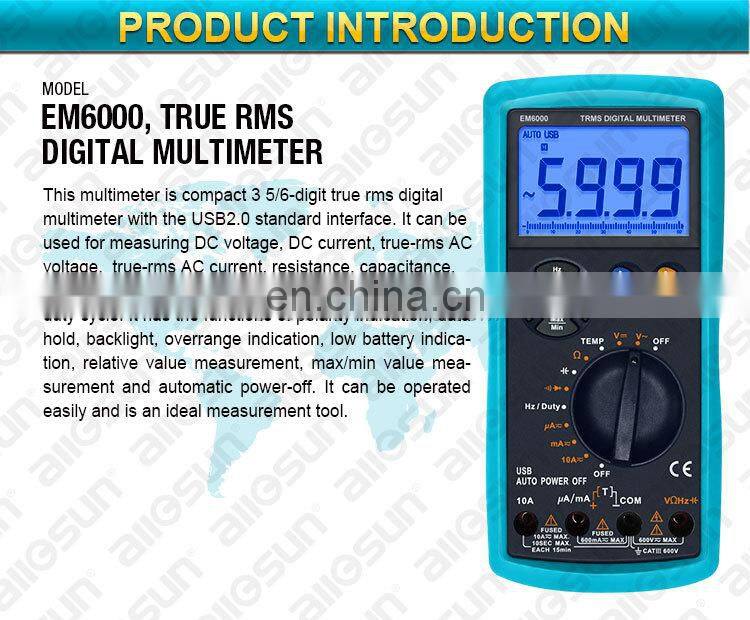

This multimeter is compact 3 5/6-digit true rms digital multimeter with the USB 2.0 standard interface.It can be used for measuring DC voltage,DC current,trus-rms AC voltage,true-rms AC current,resistance,capacitance,frequency,diode,temperature, continuity and duty cycle.It features polarity indication,data hold,backlight,overrange indication,low battery indication,relative measurement,MAX/MIN recording mode and automatic power-off.It is easy to operate and is an ideal measurement tool.
What are the advantages in TRMS Multimeter?
A multimeter can be assumed to be "average responding" to AC waveforms unless stated as being a "True RMS" type. An average responding multimeter will only meet its specified accuracy on AC volts and amps for purely sinusoidal waveforms. A True RMS responding multimeter on the other hand will meet its specified accuracy on AC volts and current with any waveform type up to a specified crest factor.The True RMS multimeter measures the real readings, not the average reading. So it will be much accurate than normal multimeter.
Features
1. Measures true-rms AC voltage and true-rms AC current.

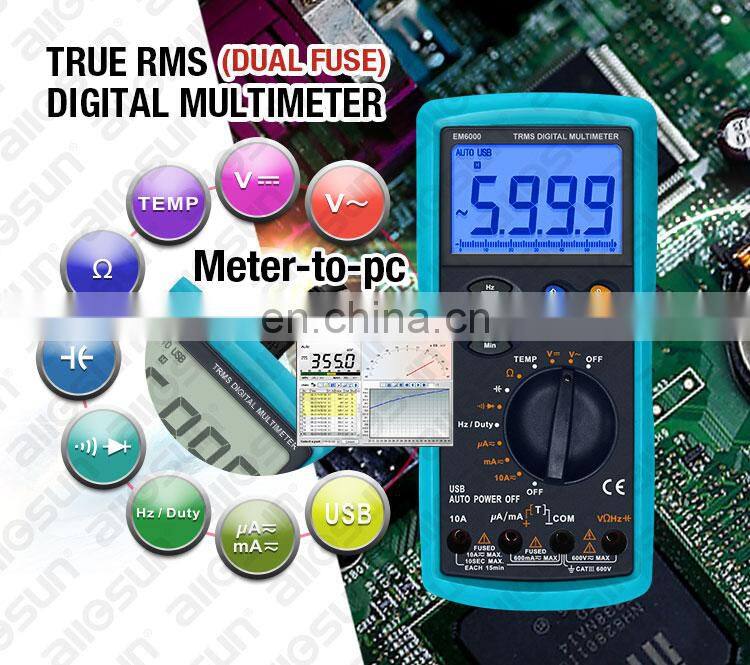

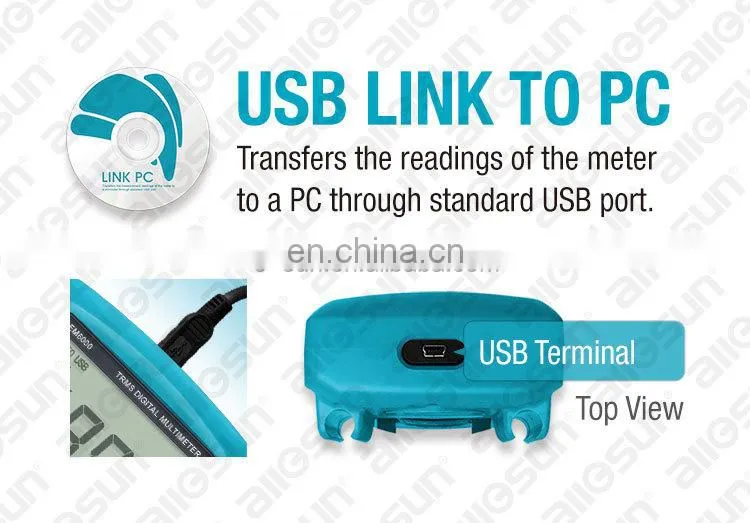

2. Transfers the measurement readings of the meter to a computer through standard USB port.
3. Provides analog bar graph, reading unit indication and backlight.
4. The sampling rate is about 3 times/sec.
5. Provides automatic polarity indication, manual range mode and autorange mode.

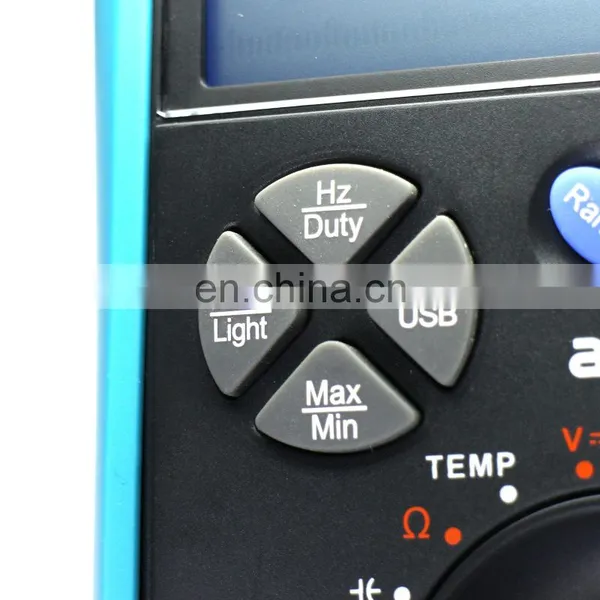

6. Provides low battery indication, overrange indication,automatice power-off, manual power-off,relative measurement, and max/min value recording.
7. Measures DC/AC voltage, DC/AC current, resistance. capacitance, frequency, diode, temperature, continuity and duty cycle.
8. Provides overload protection for all ranges.
9. Low power consumption.
Technical Specification
DC Voltage: 600mV/6V/60V/600V
AC Voltage: 6V/60V/600V
DC Current: 600μA/6000μA/60mA/600mA/6A/10A
AC Current: 600μA/6000μA/60mA/600mA/6A/10A
Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Frequency: 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz
Duty Cycle: 5%-95%
Capacitance: 40nF/400nF/4μF/40μF/400μF/4000μF

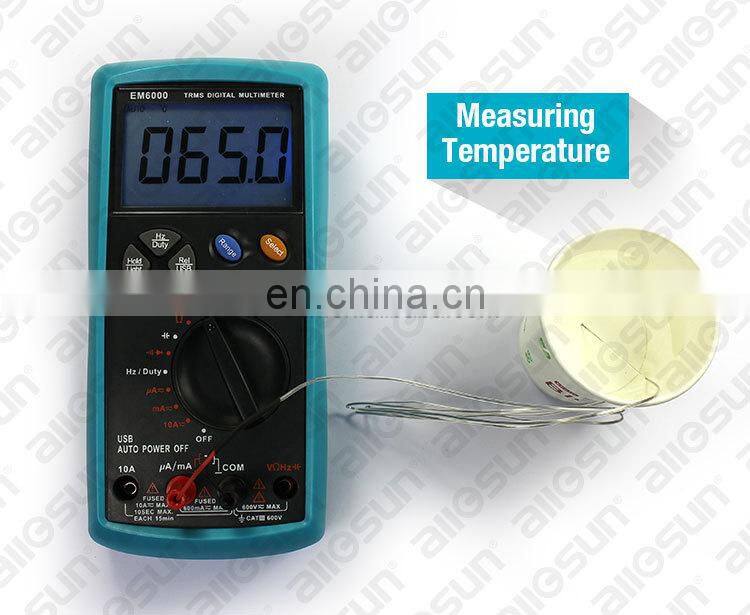

Temperature: -20°C to 1000°C (-4°F to 1832°F)

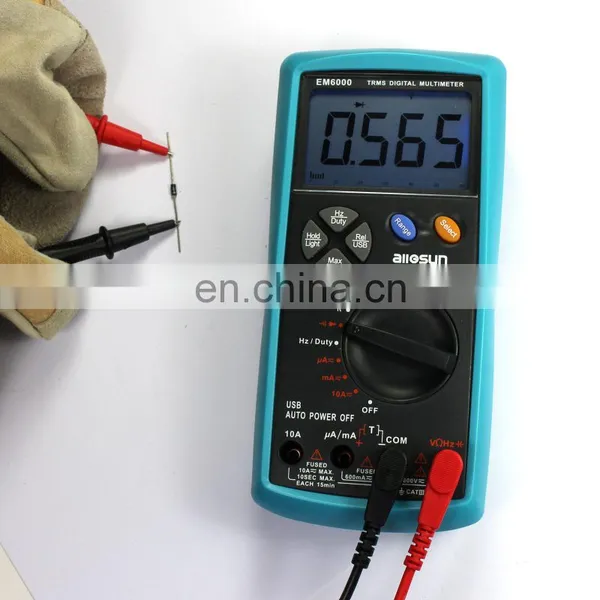

Diode: The approximate forward voltage drop of the diode will be displayed.
Continuity: The built-in buzzer will sound if the resistance is less than about 20Ω. The buzzer will not sound if the resistance is more than 150Ω
General Specification
Maximum Voltage between any Terminal and Earth Ground: 600Vrms
Fuse Protection for "uA/mA"Jack Inputs: 630mA,690V,FAST,Min,Interrupt Rating 20000A
Fuse Protection for "10A"Jack Inputs: 10A,690V,Fast,Min,Interrupt Rating 20000A
Display: LCD,with a max,reading of 9999
Overrange Indication: "OL"shown on the display
Negative Polarity Indication: "-" shown on the display automatically
Sampling Rate: about 3 times/sec
Operating Environment: 0 ℃-40℃,<75%RH
Temperature Coefficient: 0.2x(specified accuracy)/℃(<18℃ or >28℃)
Storage Environment: -30-60℃,<85%RH
Operating Altitude: 0-2000 meters
Battery: 9V,6F 22 or equivalent

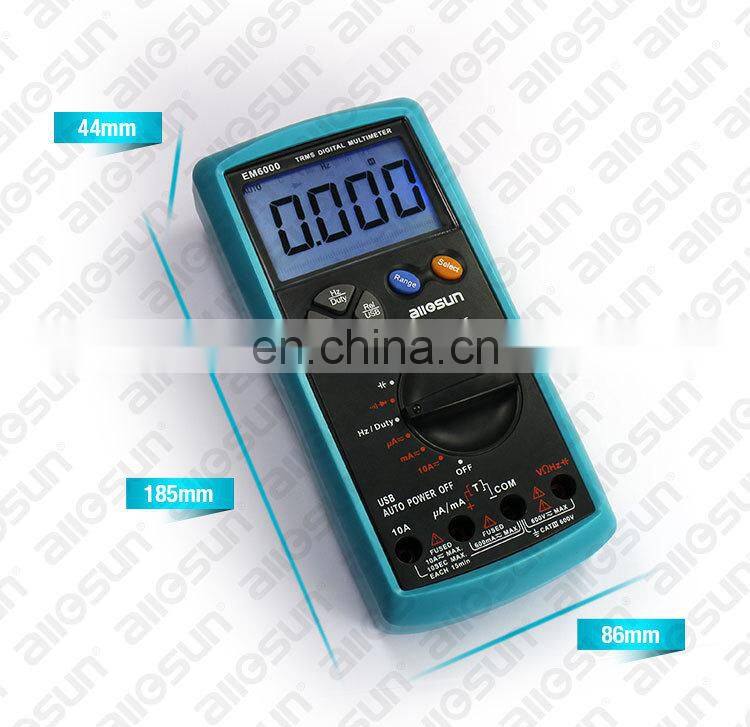

Size: 185x86x44mm
Weight: about 380g(including battery and the holster)
