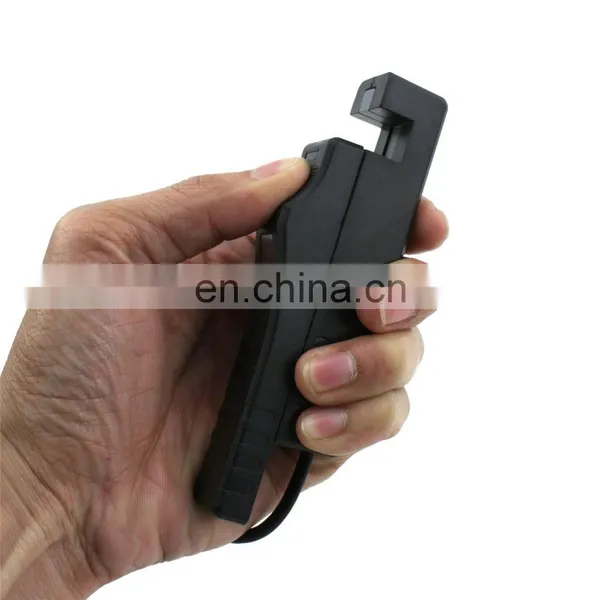

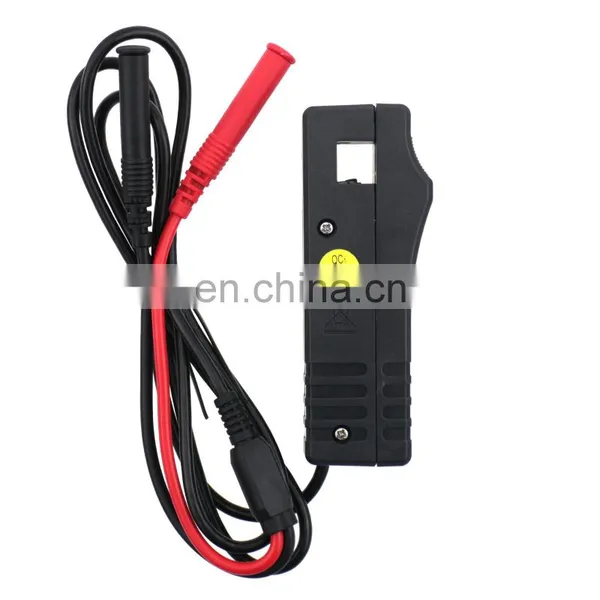

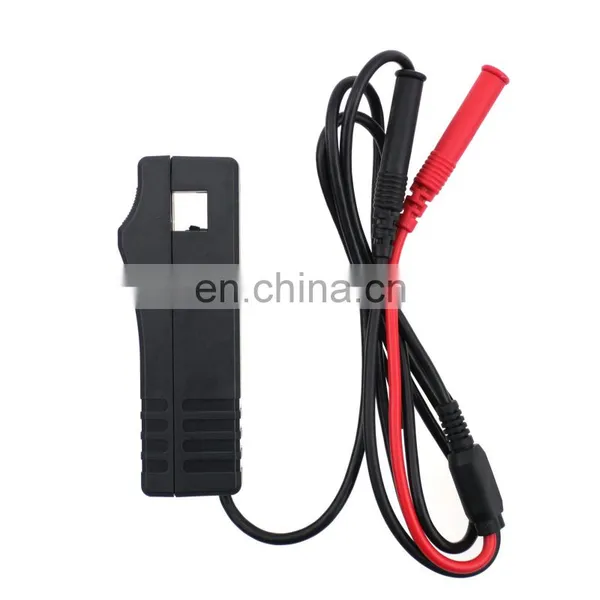

Allosun EA103 Spark Plug Signal Pick Up Cable Signal Obtain Cable Automotive Multimeter Accessories

 This instrument is designed to be used with auutomotive meter or oscollograph. It can be used in the adjustment and diagnosis of automotive engine.Using this instrument and an automotive meter, you can accurately measure some parameters of engine systme.

SPECIFICATION

Operating temperature: 0-60℃, eelative humidity<80%

Dimensions:98*35*20mm (Main Body)

Weight: about 105g

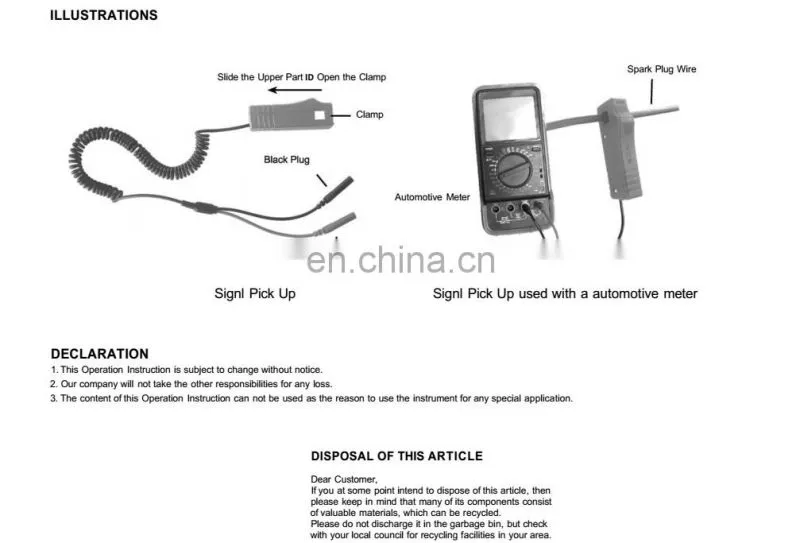

OPERATING INSTRUCTION

1.Connect the clamp of the instrument to a spark plug wire;

2.Connect the plug of the instrument to the input terminals of the automotive meter.

NOTE

1.The distance between the spark plug and the clamp of the instrument must be less than 10cm during test, and the ignition frequency of the engine ignition system must be between 10Hz and 400Hz.
