ALLOSUN EM580A Megohm 4000M Insulation Multimeter Digital Multimeter Autorange Meter Voltage DC/AC Current Resistance Meter
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
All-sun EM6000 Professional True RMS Digital Multimeter 3 5/6-digit LCD Display Multimeter Max/min Value Recording Tester
-
Allosun EM3642 Digital Cable Tester 2 in 1 Wire Tracker and Multi Meter Safety CATII 250V Electric Volt Amp Ohm Meter
-
Allosun EM5510 Digital Multimeter 5 in 1 Sound Level Humidity Luminosity Autoranging Multimeter Temperature Tester
-
Allosun EM3212 Portable Digital Multimeter Pen Type Volt Ohm Ammeter Auto Range Multi-function Electric Test Meter
-
Allosun EM2283 Automotive Voltage Test Wire Break Point Detector Little Fuse Current Test
-
Allosun EM9807 GFCI Socket Tester Household Electrical Safety Kit GFCI TESTER Outlet Tester
Product Description
Product Description
This autorange meter is a battery powerred digital multimeter with insulatioon easurement. It is applicable to measurement of resisitance, motor coil,transformer, printed circuit.
Function:
Measuring:

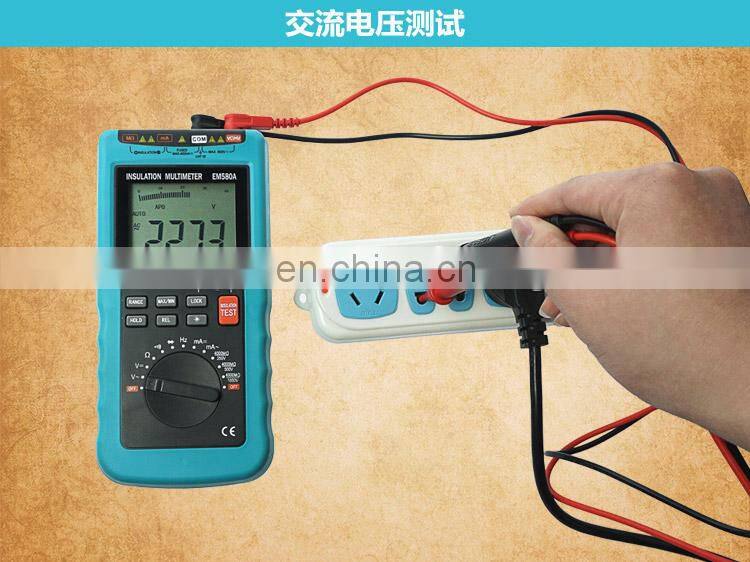

- DC & AC Voltage
- DC & AC Current

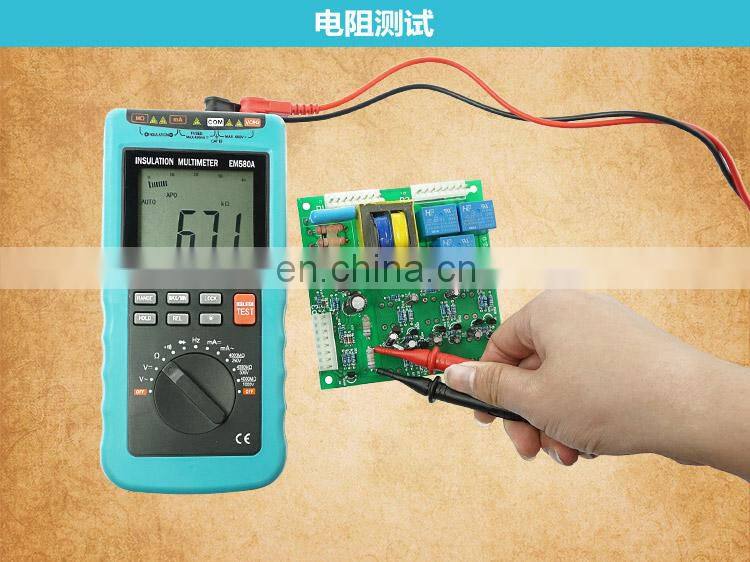

- Resistance

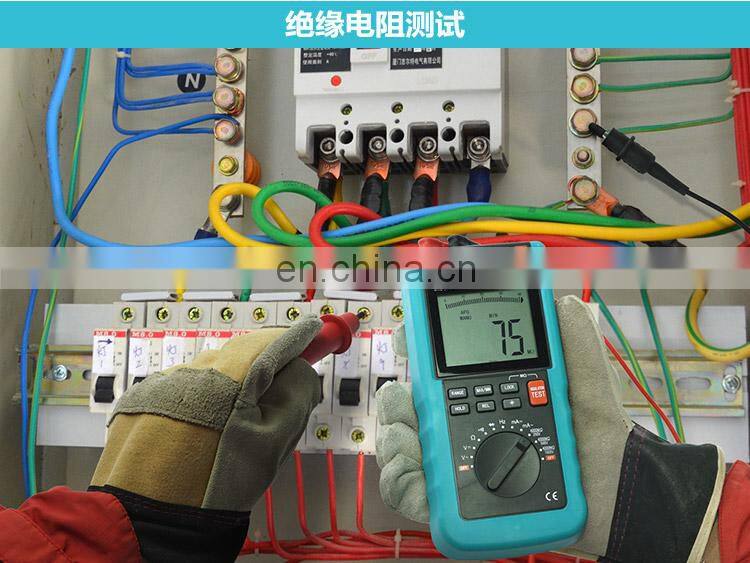

- Insulator resistance
- Frequency
- Diode
- Continuity
Features:
Insulation measurement
* 4000-count large display
* Analog bar graph, reading unit indication and backlight
* Data-hold mode
* Auto polarity indication
* Manual range mode and autorange mode
* Low battery indication
* Relative value measurement
* Max./Min. measurement
* Overload protection
* Auto/manual power-off
Specification:
- MegOHM Insulation Test: 0.1 MΩ to 4000 MΩ
Test Voltages: 250V,500V,1000V - Voltage DC: 400m/4/40/400/600V
- Voltage AC: 4/40/400/600V
- Current DC: 40m/400mA
- Current AC: 40m/400mA
- Resistance: 400/4k/40k/400k/4M/40MΩ
- Frequency: 4kHz/40kHz/100kHz
- Continuity: Buzzer sounds<30Ω
- Diode Test: Approx.3.0V
- Power Supply: 1.5V(AA)batteryx6pcs (Not provided by seller)
- Dimensions: 200X100X56mm
- Weight: Approx.470g (without battery)
