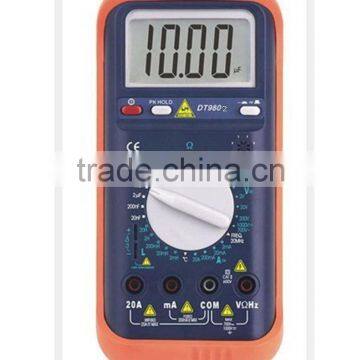

Digital Multimeter

Name: Digital Multimeter
Brand: TONGCHUANG
SKU: 108243455
Availability: InStock

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

TONGCHUANG

Model Number:

9802

Zhejiang Winchoice Imp./Exp. Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI NINGBO SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name TONGCHUANG

Model Number 9802

Measuring Current Range 2mA/200mA/10A

Measuring Voltage Range 200mV/2V/20V/200V/750V

Measuring Resistance Range 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ/200MΩ

Measuring Capacitance Range 2nF/20nF/200nF/2μF/20μF

Operating Temperature 0℃~40℃,70%RH

Dimensions 50*30*45cm

Specifications

Standard Digital Multimeter

Product Readme:
Basic Functions	Range.	Accuracy
DC Voltage	200mV/2V/20V/200V/1000V	±(0.5%+3)
AC Voltage	200mV/2V/20V/200V/750V	±(0.8%+5)
DC Current	20μA/2mA/200mA/10A	±(0.8%+1)
AC Current	2mA/200mA/10A	±(1.8%+3)
Resistance	200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ/200MΩ	±(0.8%+3)
Capacitance	2nF/20nF/200nF/2μF/20μF	±(2.5%+5)
Special Function	DT9802
Diode test	√
Transistor hFE test	√
Continuity check	√
Low battery indication	√
Environment Temp.	Working Temp.:0°C~40°C,70%RH
	Storage Temp:-10°C~50°C,80%RH
Over range display	display“1”
Operation way	Manual
Max display	1999
LCD size	66x41.6mm
Battery	9V(6F22×1)
\| General Characters\|
Product color Case	Navy Holster color-Orange
Product Net Weight	550g(including batter)
Product Dimension	190×88×31mm
Standard Accessories	Test lead,battery,instruction manual, CE,packback
Standard inner packing	Color box
Carton size	503045cm
Standard Quantity	30pcs
Standard Gross Weight	23kg
