1550nm WDM CATV Optical EDFA Amplifier

Description:

RB-HA5800 series is a low noise, high performance, FTTP high power multi-ports optical amplifier with gain spectrum band within 1540~1563nm. Each output port for optical amplifier has built-in well-performed CWDM. Every external up-link optical port of optical amplifier can connect with OLT very conveniently. Each 1550nm (CATV)'s out-put optical port multiplex 1310/1490n's data stream, in order to reduce the quantity of the component and improve the datasheet and reliability of the system. RB-HA5800 optical amplifier can be compatible with any FTTx PON Technology. It offers a flexible and low-cost solution for CATV large area coverage of metropolises and medium-sized cities.

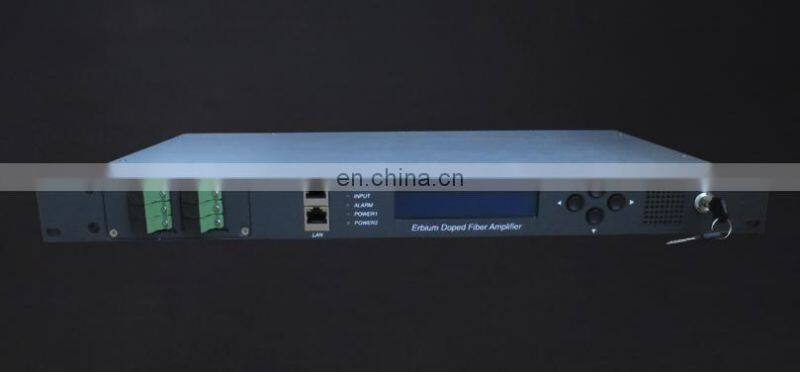

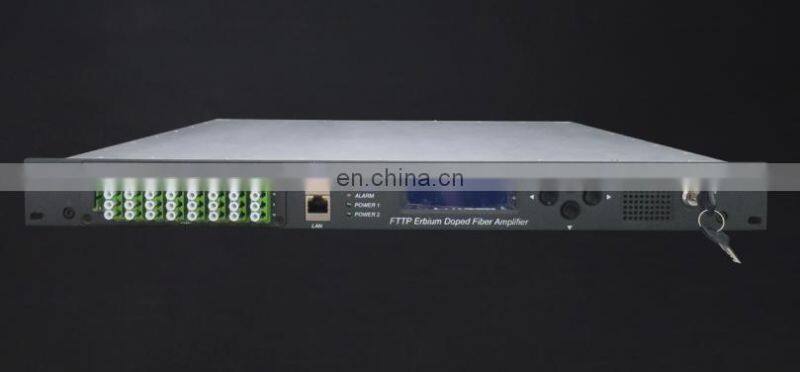

RB-HA5800A optical amplifier: 1RU chassis, total output power>1000mW, offers 16 optical outputs at most.

RB-HA5800B optical amplifier: 2RU chassis, total output power>5000mW, offers 64 optical outputs at most.

Product feature

• 1540~1563nm operating bandwidth

• 500~5000mW (27~37mW) high output power

• Low noise, high performance, high reliability

• 8~32 uplink optical port, used in OLT

• 8~32 1550nm output optical port, multiplex 1310/1490nm data stream.

• Can be compatible with any FTTx PON Technology:EPON/GEPON, GPON, BPON, DPON

• Perfect RS232, SNMP

• Efficient space, flexible installation and easy operation

• Excellent P/P ratio

Main Application

• FTTx PON

• RFoG
