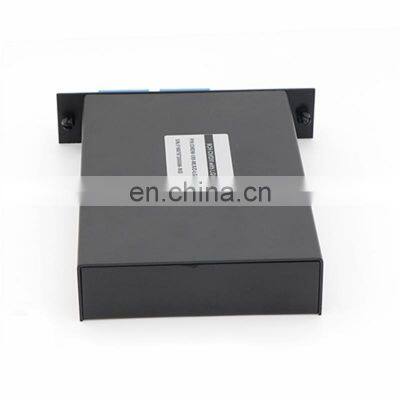

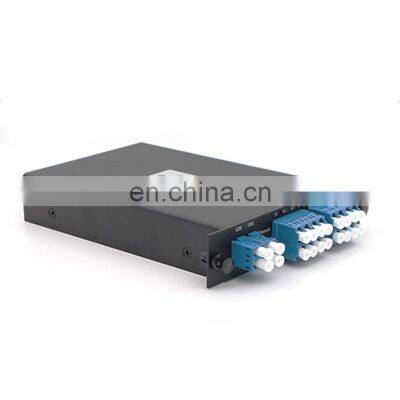

High quality 1x8 Channels DWDM MUX/DEMUX LGX
Description
1.Coarse Wavelength Division Multiplexing (CWDM) is a type of optical wavelength management device that are based on proven ultra low-loss thin-film filter (TFF) technology.
2.It features small size, high reliability, high extensibility, simultaneous transmission of multi-wavelength. CWDM has gained prevalence in multi-wavelength digital transport architectures because it enables the use of very low cost uncooled distributed feedback (DFB) lasertransmitters.
3. Moreover, their powering requirements are reduced and reliability is increased.
4.ROLLBALL provides whole series of 1xN CWDM products that are tailored for specific applications. All products meet GR-1209-CORE, GR-1221-CORE and ITU-T G.694.2 requirements.
Features
Low Insertion Los s
High Isolation
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: 1260nm to 1620nm
Wide Operating Temperature: -40°C to 85°C
High Reliability and Stability
Specification
Table 1 – 1×N CWDM Mux/Demux LGX Box
|
Parameters |
1x2 |
1x4 |
1x8 |
|
|
Center Wavelength (nm) |
ITU, ITU+1 |
|||
|
Operating Wavelength (nm) |
1460~1620 |
|||
|
Channel Space (nm) |
20 |
|||
|
Fiber Type |
SMF-28e or customer specified |
|||
|
IL (dB) (P/A Grade) |
0.7/1.0 |
1.4/1.7 |
2.0/2.5 |
|
|
Isolation (dB) |
Adjacent Channel |
30 |
||
|
Non-Adjacent Channel |
50 |
|||
|
Ripple (dB) |
0.3 |
0.4 |
0.5 |
|
|
PDL (dB) |
0.1 |
|||
|
PMD (ps) |
0.1 |
|||
|
RL (dB) |
45 |
|||
|
Directivity (dB) |
50 |
|||
|
Maximum Optical Power (mw) |
500 |
|||
|
Operating Temperature (°C) |
0~70 |
|||
|
Storage Temperature (°C) |
-40~85 |
|||
|
LGX Package |
1U, 2U, 4U |
|||
Notes:
1. Specified without connectors.
2. Add an additional 0.2dB loss per connector.
Table 2 –NCH CWDM Optical Add/Drop LGX Box
|
Parameters |
1CH |
2CH |
4CH |
8CH |
|
|
Center Wavelength (nm) |
ITU, ITU+1 |
||||
|
Operating Wavelength (nm) |
1460~1620 |
||||
|
Channel Space (nm) |
20 |
||||
|
Fiber Type |
SMF-28e or customer specified |
||||
|
IL(dB) (P/A Grade) |
Add&Drop Channel |
0.5/0.6 |
0.7/1.0 |
1.4/1.7 |
2.0/2.5 |
|
Express Channel |
0.6/0.8 |
1.2/1.4 |
1.8/2.0 |
3.6/3.8 |
|
|
Isolation(dB) |
Add&Drop Adjacent Channel |
30 |
|||
|
Add&Drop Non-Adjacent Channel |
50 |
||||
|
Express Channel |
25 |
||||
|
Ripple(dB) |
0.3 |
0.3 |
0.4 |
0.5 |
|
|
PDL(dB) |
0.1 |
||||
|
PMD(ps) |
0.1 |
||||
|
RL(dB) |
45 |
||||
|
Directivity(dB) |
50 |
||||
|
Maximum Optical Power (mw) |
500 |
||||
|
Operating Temperature (°C) |
0~70 |
||||
|
Storage Temperature (°C) |
-40~85 |
||||
|
LGX Package |
1U, 2U, 4U |
||||
