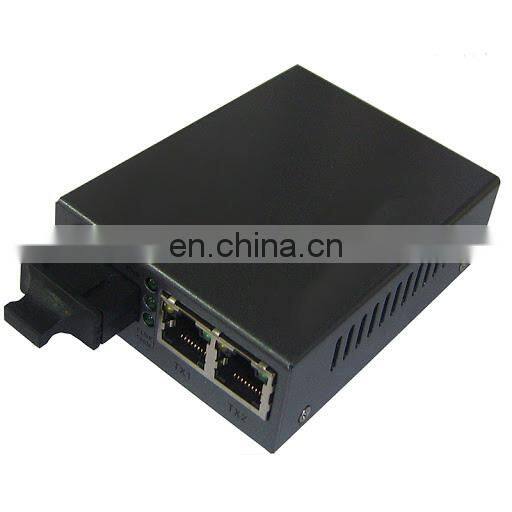

10/100M/1000M Gepon Olt Fiber Optical Gig Ethernet Media Converter With External Power

Product Pictures:

General Description:

1. gig ethernet can convert Optical-Electric Ethernet signals between 10/100/1000M UTP interface (TX) and 1000M optical fiber interface (FX).

2.The traditional 10/100/1000M gigabit Ethernet can be extended to the distance of 100km through optical fiber link. The performance and quality of the products are excellent because of adopting latest Gigabit IC from USA and Taiwan. 6 Group LED indicated lights could fully monitor the working conditions of converters.

3.It is easy for users to observe and diagnose the failure of converters. GT Series Gigabit Converters could be used alone; but Converter Card should be inserted to 16 slots RACK supplied by G.T. Crop. which is suitable for the use of Network Centre.

Feature:

Auto negotiation function allows UTP ports to auto select 10/100/1000M and Full Duplex or Half Duplex.

The UTP port supports the connection of MDI/MDI-X auto crossover.

Multimode Fiber: the max distance up to 224m/ 550m

Singlemode Fiber: the max distance up to 100km

Supporting the max 1536 byte Ethernet packet

Supporting flow control

Adopting internal power supply

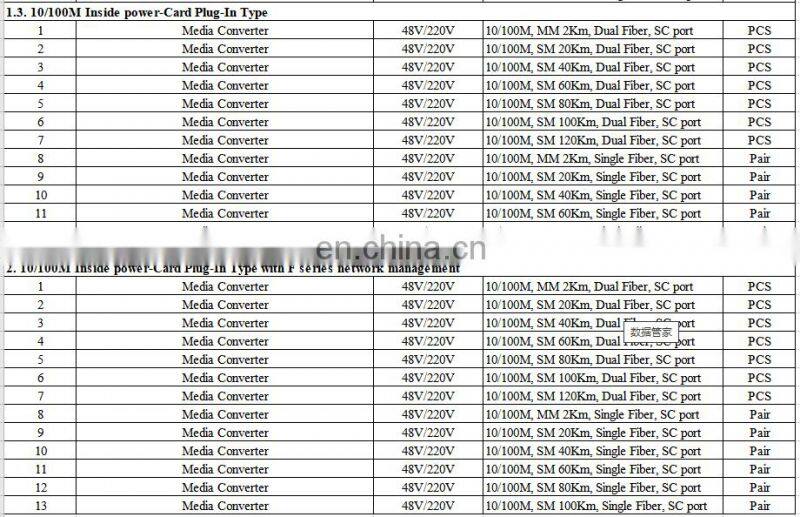

Ordering Information:

Certifications:

Our Company:

Rollball Comm-tech, established in 2000,located in Shenzhen China,specializes in providing high-performance fiber optic communication products and accessories for telecommunication, broadcast, CATV and network industries worldwide for 8 years.

Supplying fiber patch cord, pigtail ,fiber optic splitter,Transceiver,POE switch,Media converter, Fiber optics,OADM and CWDM DWDM MUX/DEMUX etc.

At Rollball, we believe that quality is essential to the company's success. As a result, we strictly monitor our ISO 9001:2000-certified production processes. Also, we inspect every aspect of production, from raw material examination to final inspections and shipping.

Exhibition:
