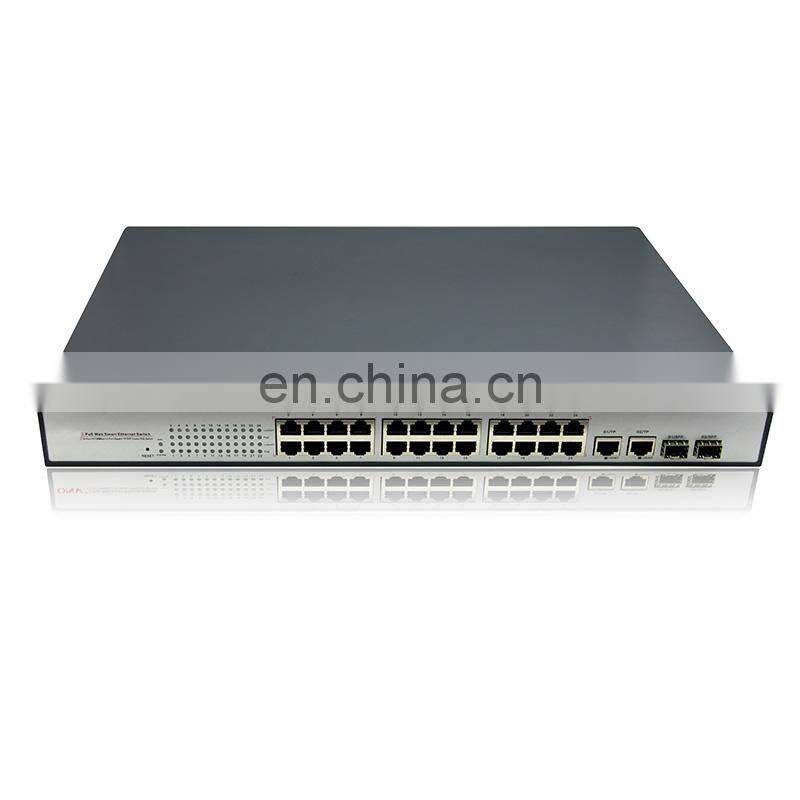

24 Ports POE Switch for Ubiquiti 10/100/1000M Connector OEM 4/8/16 Port
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2009
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4/8/16 Port POE Switch for Ubiquiti Oem ConnectorNegotiableMOQ: 1 -
1000 M Gigabit SM Dual Fiber Optical Media Converter 20.0 km fo to EthernetNegotiableMOQ: 1
-
10/100M/1000M Gepon Olt Fiber Optical Gig Ethernet Media Converter With External PowerNegotiableMOQ: 1
-
Hot Selling Gpon Olt 1 U 8 PON Ports GPON Olt EquipmentNegotiableMOQ: 1
-
10/100/1000M Ethernet to Fiber Media Converter With Dual SFP Slot and 2 RJ45 PortNegotiableMOQ: 1
Product Description

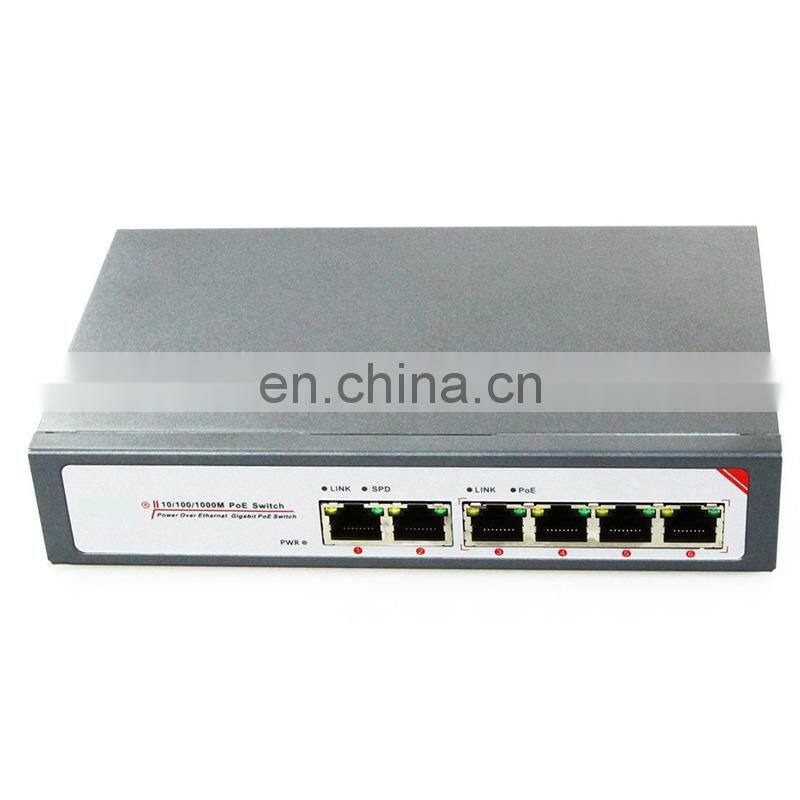

10/100/1000M PoE Switch
Overview
* The PoE Switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. The four RJ45 network ports + one fiber port can be used for any 10/100 Mbps link and four of these ports can supply industry-standard IEEE 802.3af power.Advanced auto-sensing algorithm gives power only to IEEE802.3af end devices, so no need to worry about damaging proprietary PoE or non-PoE equipment. In addition, it discontinues the power when PoE devices are disconnected. Easy and reliable, the PoE Switch RB-1050004F automatically determines PoE requirements,speed, duplex, and cable type using Auto Uplink™.
* It is designed specifically to satisfy the growing demand of power consuming network PD (powered devices) such as network cameras, wireless LAN access points and other network devices.
Features
* IEEE 802.3af power on up to 6/8/16/24 ports
* Supply power to wireless access points and surveillance cameras over Cat-5 cabling
* 10/100/1000 Mbps Ports with AutoUplink™
* Supports PoE power up to 15.4W for each PoE port
* Supports PoE power up to 110W for all PoE ports
* Supports PoE IEEE 802.3af compliant PDs
* Hardware based 10/100/1000Mbps Auto-Negotiation and Auto MDI/MDI-X
* 8K entry MAC address table of the PoE Switch RB-P5080008 with auto-learning and auto-aging
* LED indicators for monitoring power, link, activity and speed
* External power adapter supply
Specifications(such as 8-port):

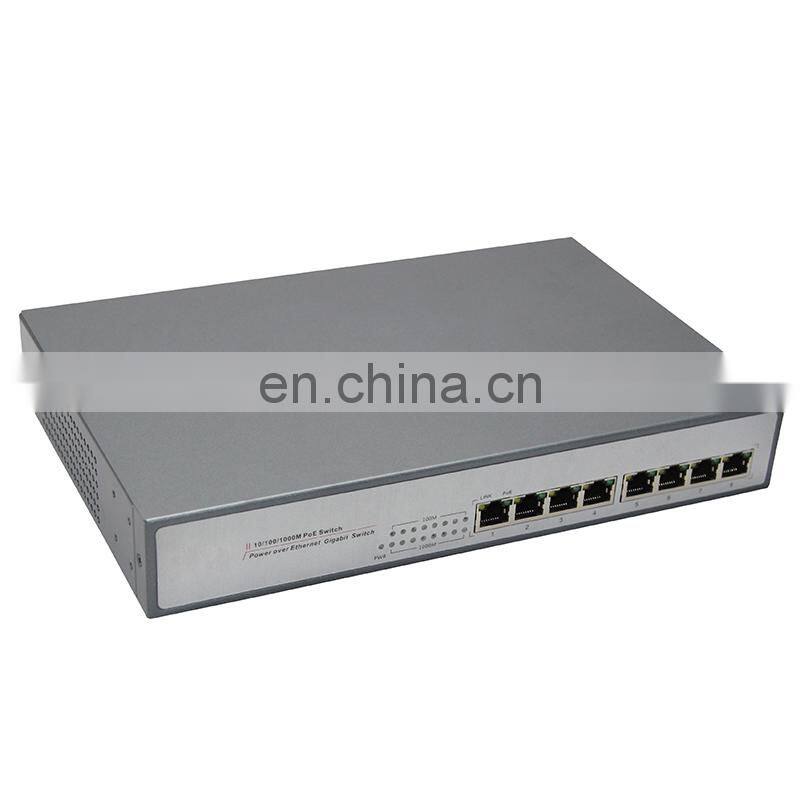

Product 8-PORT 10/100/1000 SWITCH WITH 8-PORT POE
Type RB-P5080008
Network Ports 8 10/100/1000Mbps RJ45 PortsAUTO Negotiation/AUTOMDI/MDIX
Power Pin Assignment Data provided over pairs over 1/2and 3/6 ,Power over spare pairs4/5(+) and 7/8 (-)
PoE Distance 100m
Transmission Method Store-And-Forward
10BASE-T:UTP category 3,4,5 cable (maximum 100m)
Network Media 100BASE-T:UTP category 5,5e cable(maximum 100m)
100BASE0-TX: UTP category 5, 5e cable (maximum 100m)
100BASE0-TX: UTP category 5, 5e cable (maximum 100m)
Bandwidth: 24 Gbps
Network latency:Less than 20 μs for 64-byte frames in store-and-forward mode for 100
Mbps to 100 Mbps transmission
Mbps to 100 Mbps transmission
Buffer memory:8M embedded memory per unit
Performance Address database size:8,000 media access control (MAC) addresses per system
Specifications Addressing:48-bit MAC address
Mean Time Between Failure (MTBF):190,000 hours (~ 21 years)
Acoustic Noise: 0 dB
IEEE 802.3i 10BASET
IEEE 802.3u 100BASETX
Network Protocoland IEEE 802.3x Flow Control
Standards IEEE 802.1af DTE Power via MDI
IEEE 802.3af
System: Power, PoE Maximum Power
Status LEDs Per Port: Link, Activity, Speed, PoE Active, PoE Fault
Total Power Consumption: 120 W maximum
PoE Watt budget: 110W
Power Supply IEEE802.3af Power Consumption: 110 W maximum (Ports 1 – 8)
AC110~265V power input; plug is localized to country of sale
Physical Dimensions (H x W x D):44 x279 x 195mm
Specifications Weight:1.25kgEnvironmental
Operating temperature: 0 to 55°℃
Environmental Storage temperature: -20 to 75°C
Specifications Operating humidity: 90% maximum relative humidity, non-condensing
Storage humidity: 95% maximum relative humidity, non-condensing
Operating altitude: 10,000 ft (3,000 m) maximum
Storage altitude: 10,000 ft (3,000 m) maximum
Storage altitude: 10,000 ft (3,000 m) maximum
CE mark, commercial
Electromagnetic FCC Part 15 Class B
Emissions VCCI Class B
EN 55022 (CISPR 22), Class B
Safety CE Mark ,commercial
CE/LVD EN60950
Warranty 1 years for PoE Switch
2 years for power supply

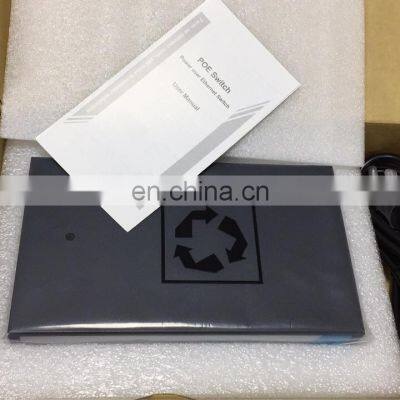

8-PORT 10/100/1000M SWITCH WITH 8-PORT POE (RB-P5080008)
AC power line
Package Contents Installation guide
Warranty/Support Information card
Order Information
P/N Description
Order Information
P/N Description
RB-P5060006 6-Port 10/100/1000M Swith with 6-Port PoE
RB-P5080008 8-Port 10/100/1000M Swith with 8-Port PoE
RB-P5160216 16-Port 10/100/1000M Swith with 16-Port PoE
RB-P5240224 24-Port 10/100/1000M Swith with 24-Port PoE
